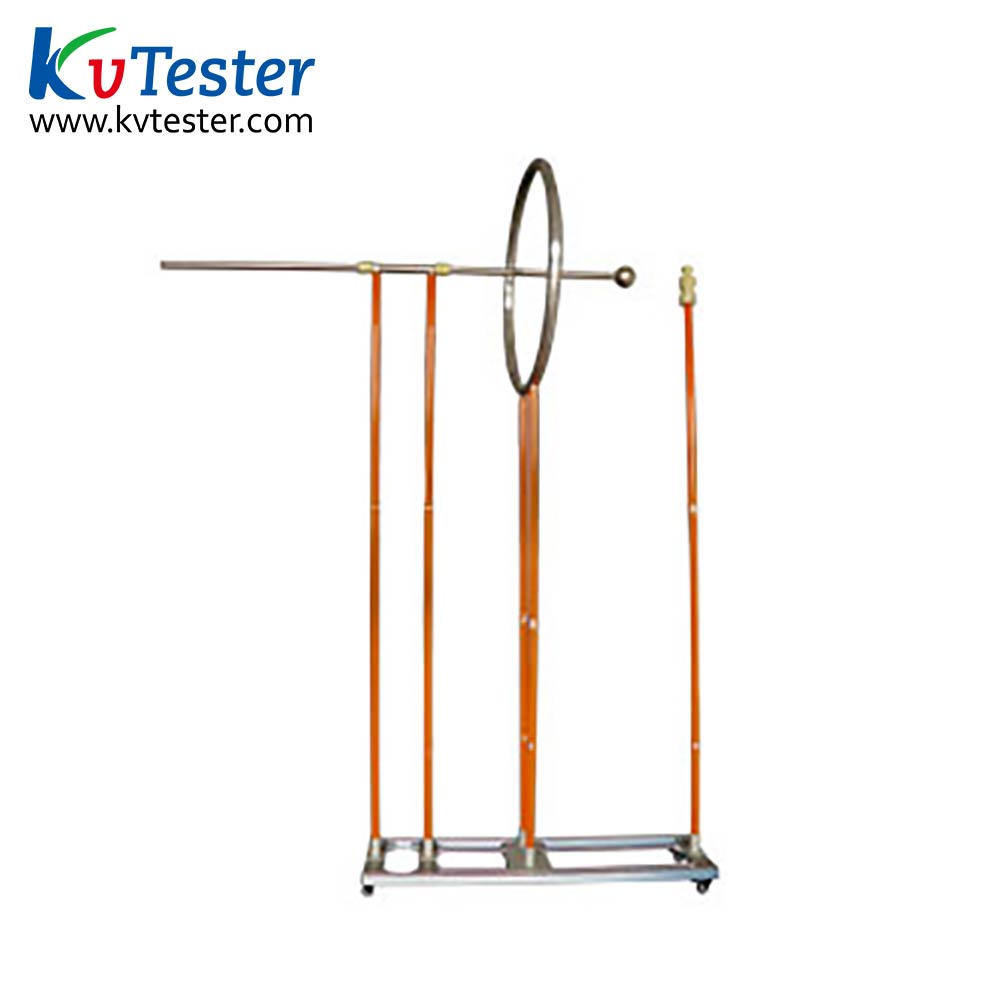

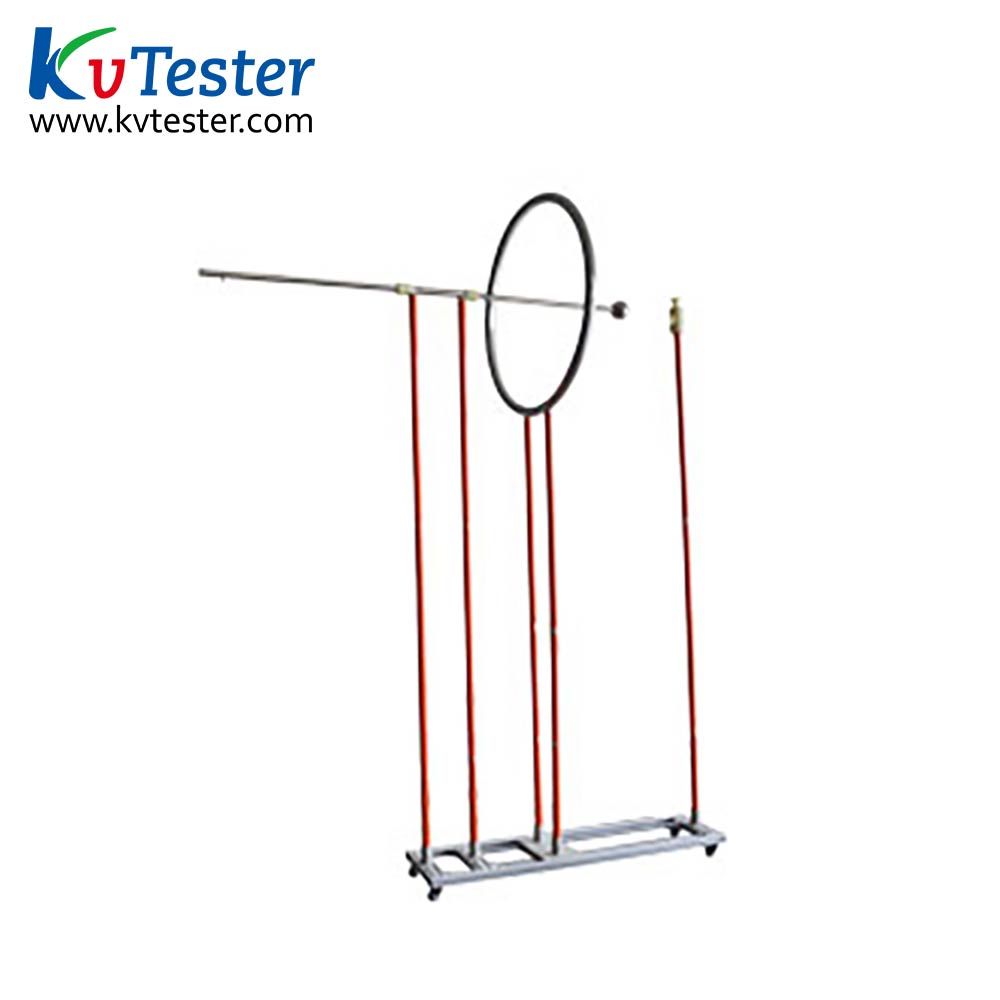

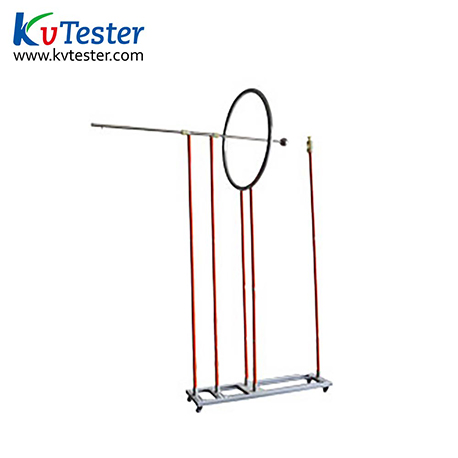

Electroscope Test Device

type:ZC-507
Online Service

TAGS:

  • Product Introduction

The ZC-507 Electroscope Test Device Is suitable for accurate test of the electroscope function, including:   acousto-optic warning signal, starting voltage.
This series of products covers the function test of 6-500 kV electroscope.

  • Product Parameters

Table 1 Electroscope with contact electrode extension

KV Interval distance of electrode (mm) H1
(mm)
Ring Diameter (mm) Ball Diameter (mm)
10
35
100
430
>1500 550 60
66—110
220—330
650
850
>2500 1050 100
500 1250 >3500 1550 150
500



Table 2 Electroscope without contact electrode extension

KV Interval distance of electrode (mm) H1
(mm)
Ring Diameter (mm) Ball Diameter (mm)
10
35
300 >1500 550 60
66—110
220—330
1000 >2500 1050 100
500 1250 >3500 1550 150
  • Product Features
1. Wide application range: applicable to the inspection of electroscopes with voltage levels of 10kV-500kV;
2. Advanced production technology: using advanced foreign production technology, durable and durable;
3. Accurate inspection: With the PLC intelligent pressure-resistant device independently developed by our company, the measurement results are accurate;
4. Many inspection functions: suitable for high-voltage electroscopes, low-voltage electroscopes, acousto-optic electroscopes and other electrical appliances;
5. Easy to move: Four universal pulleys are beautiful in appearance and easy to move.
