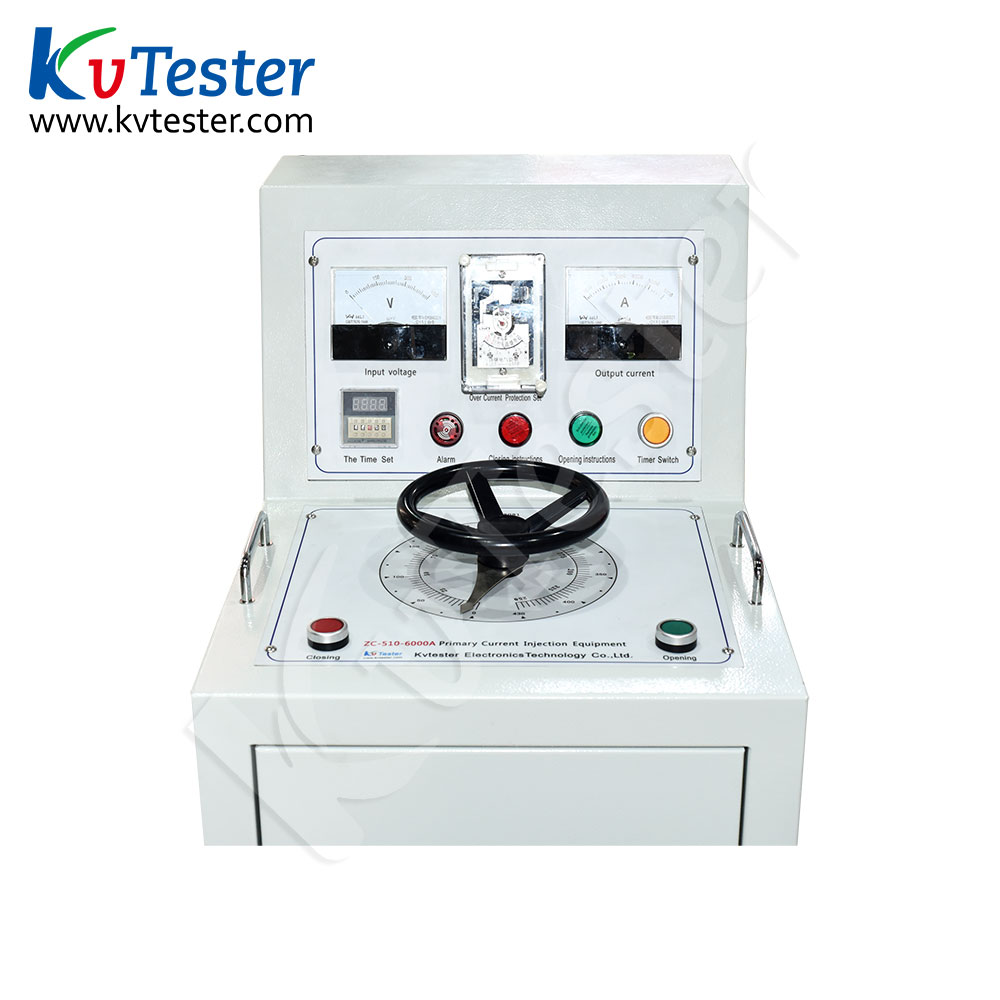

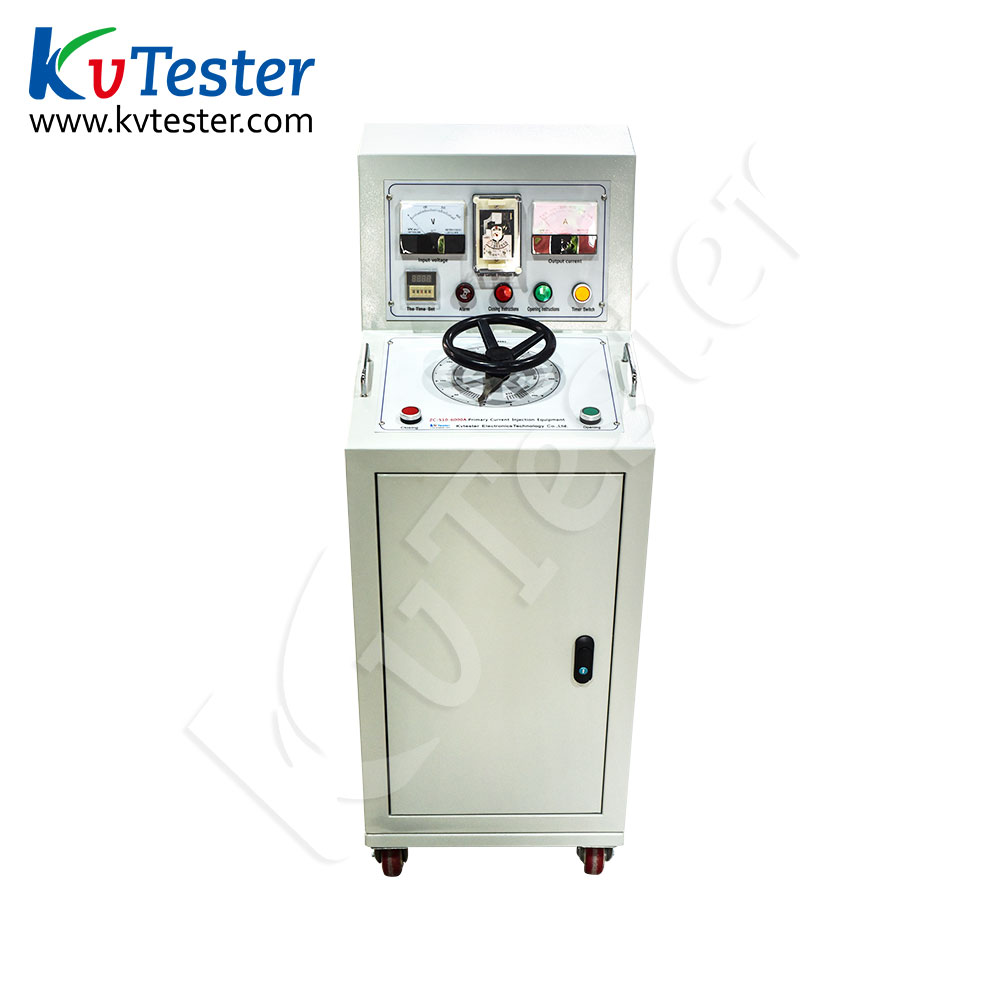

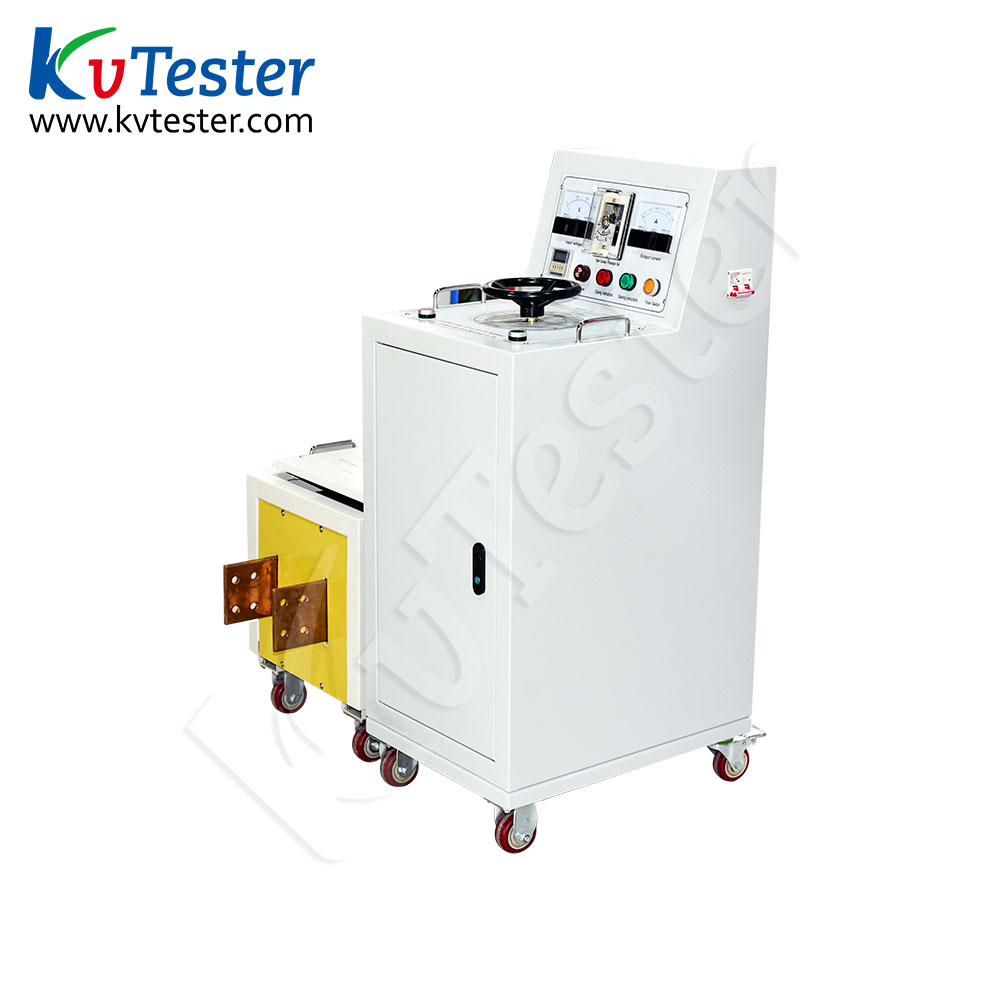

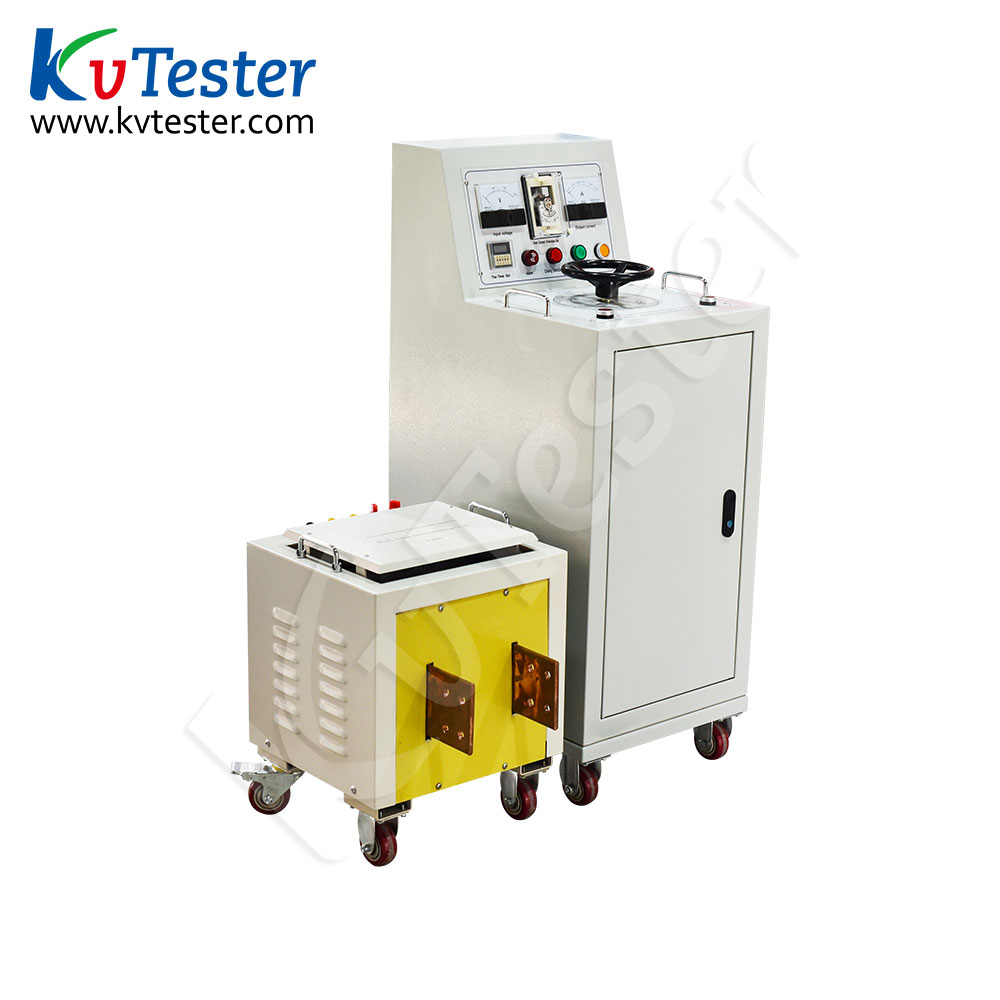

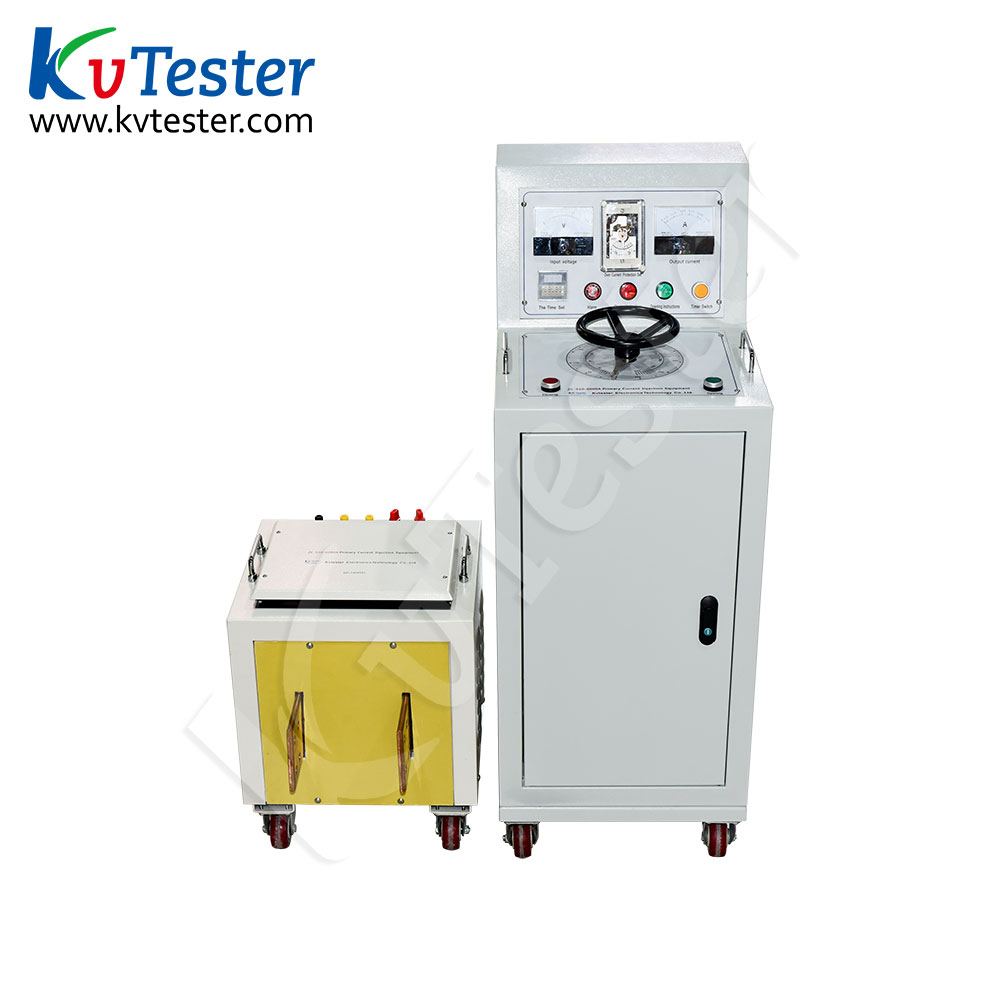

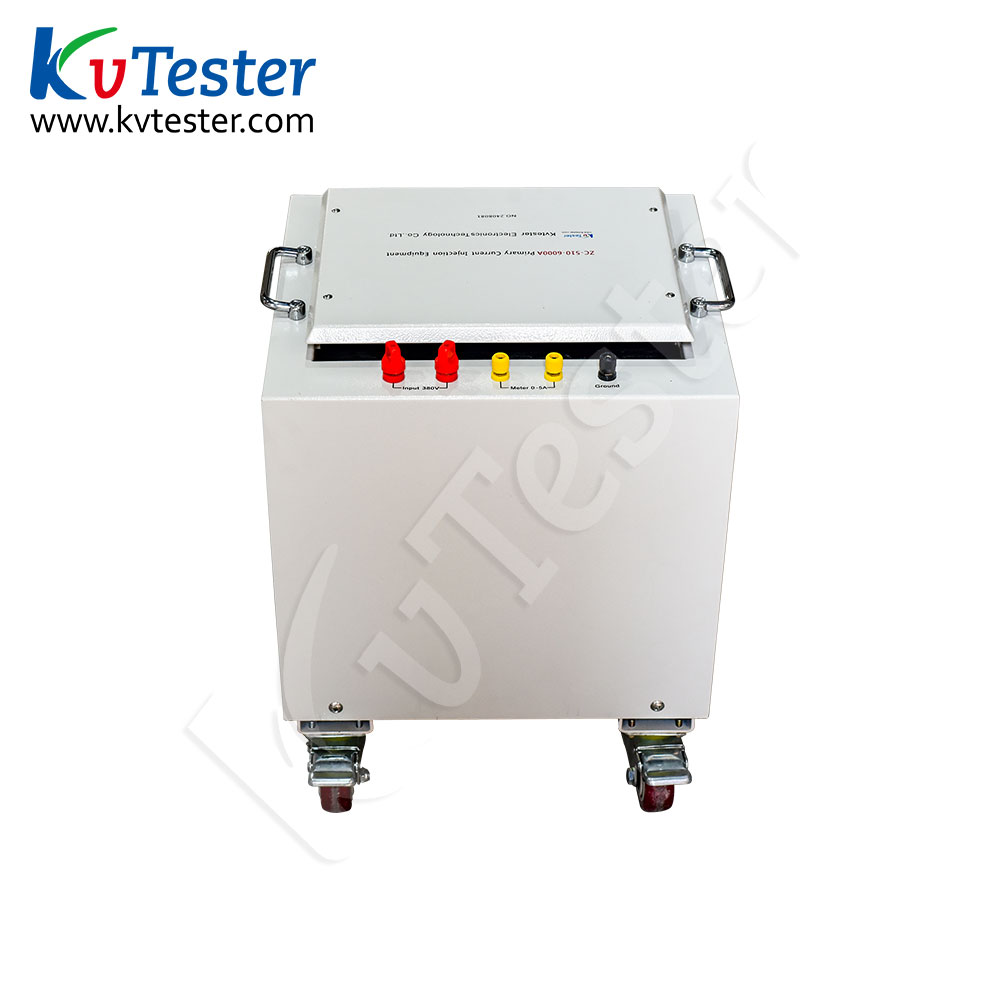

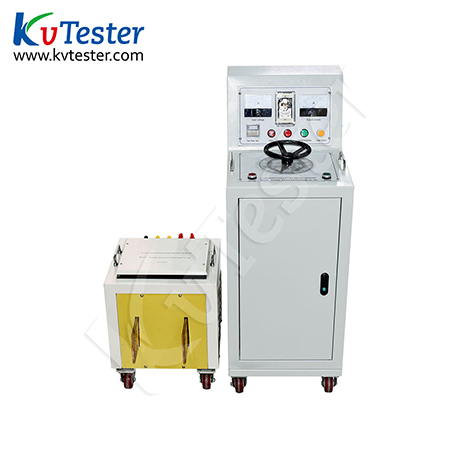

6000A Primary Current Injection Equipment

type:ZC-510-6000A

Online Service

TAGS:

Primary Current Injection Equipment

High current generator

ZC-510

Product Introduction

ZC-510 High Current Generator is essential equipment used for electrical test to generate high current, which be widely used in power plants, power distribution stations, electrical plants , scientific research, laboratories and other units. The ZC-510 series are a short-term or intermittent work devices and characterized by small size, light weight, good performance, easy use and maintenance, and covers 500-20000A current output capability.

Product Parameters

Type	Capacity （kVA）	Primary		Secondary		Dimension（mm）	Weight（kg）	Structure
		V1	A1	V2	A2
500A	3	200	15	6	500	440×280×350	30	integrated
1000A	3	200	30	4	1000	500×320×350	45	integrated
1500A	7.5	200	35	6.5	1500	570440750	70	integrated
2500A	15	380	37.5	6	2500	650×410×800	70	split
						300×450×500	55
4000A	24	380	58	6	4000	580x420x720	75	split
						450x360x500	70
5000A	30	380	75	6	5000	600×430×980	80	split
						300×500×500	85
6000A	36	380	95	6	6000	600×430×980	130	split
						300×500×500	110
8000A	48	380	125	6	8000	600×450×980	180	split
						350×550×550	160
10000A	60	380	158	6	10000	800×600×1100	200	split
						380×550×600	180
