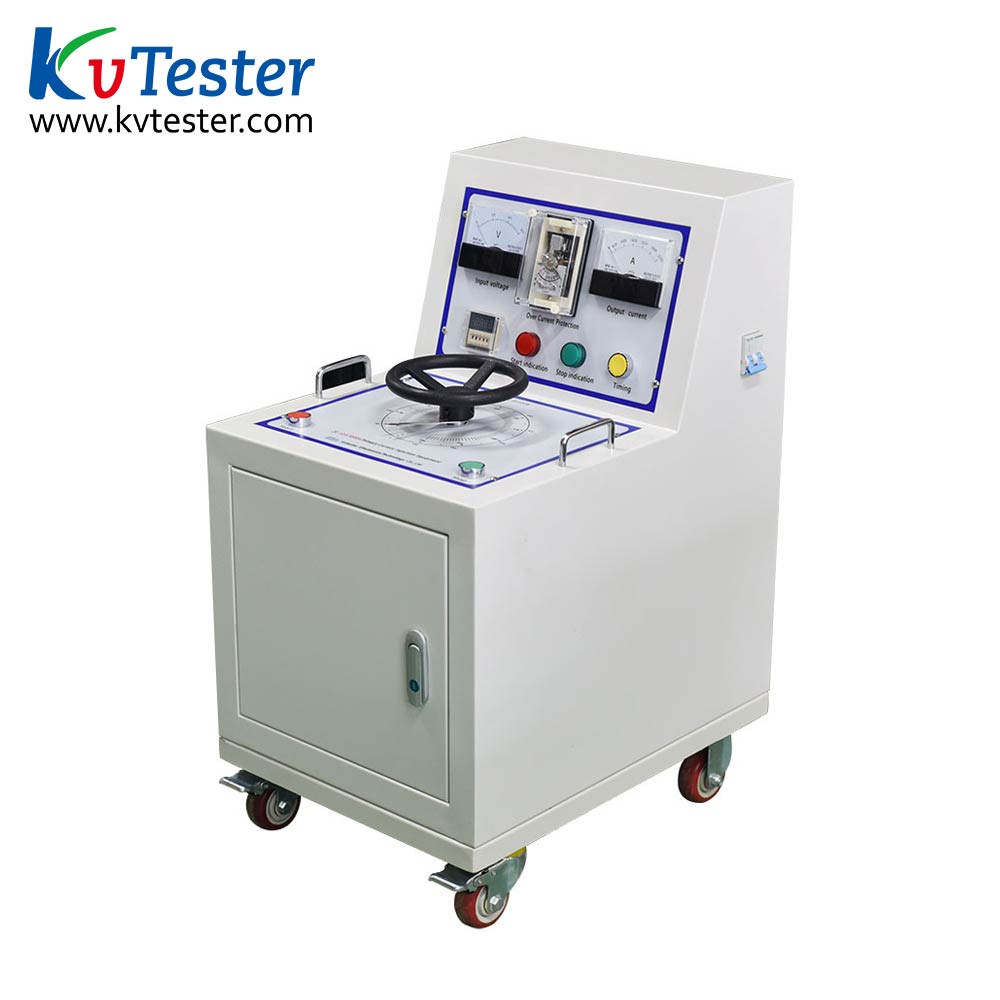

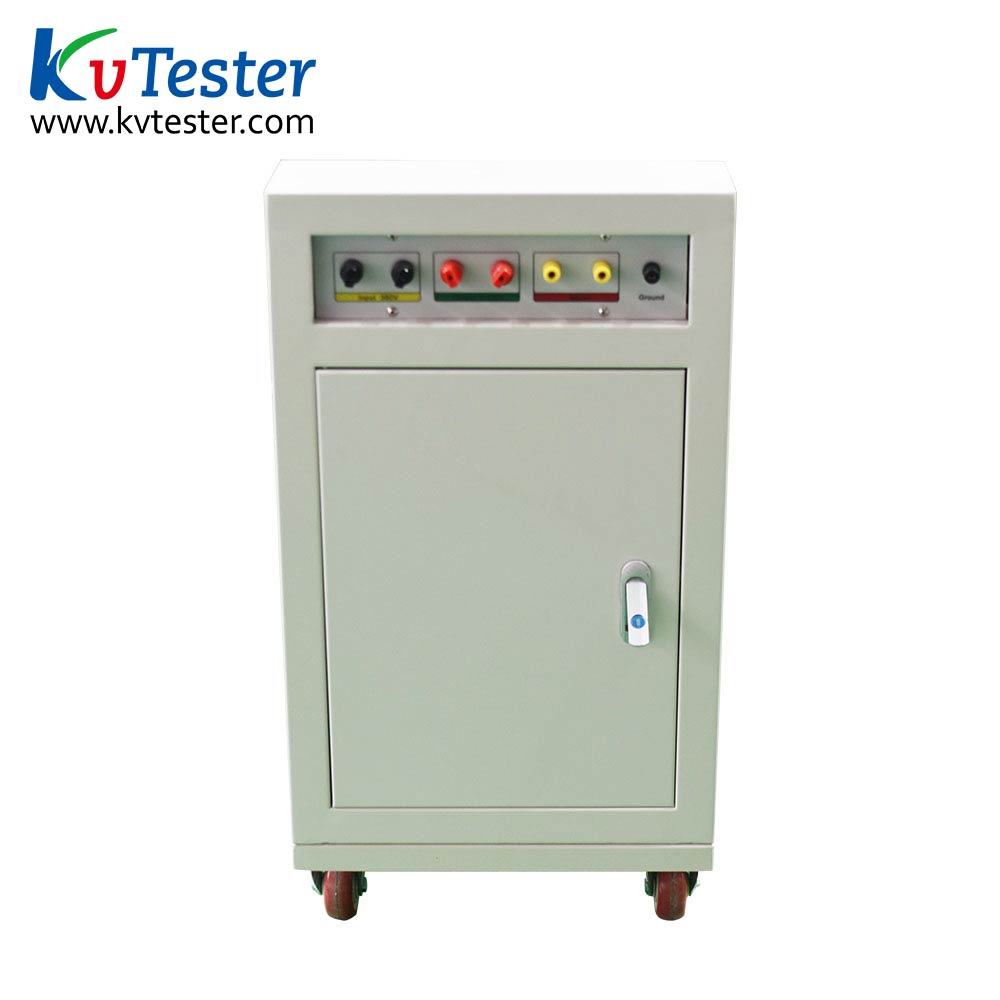

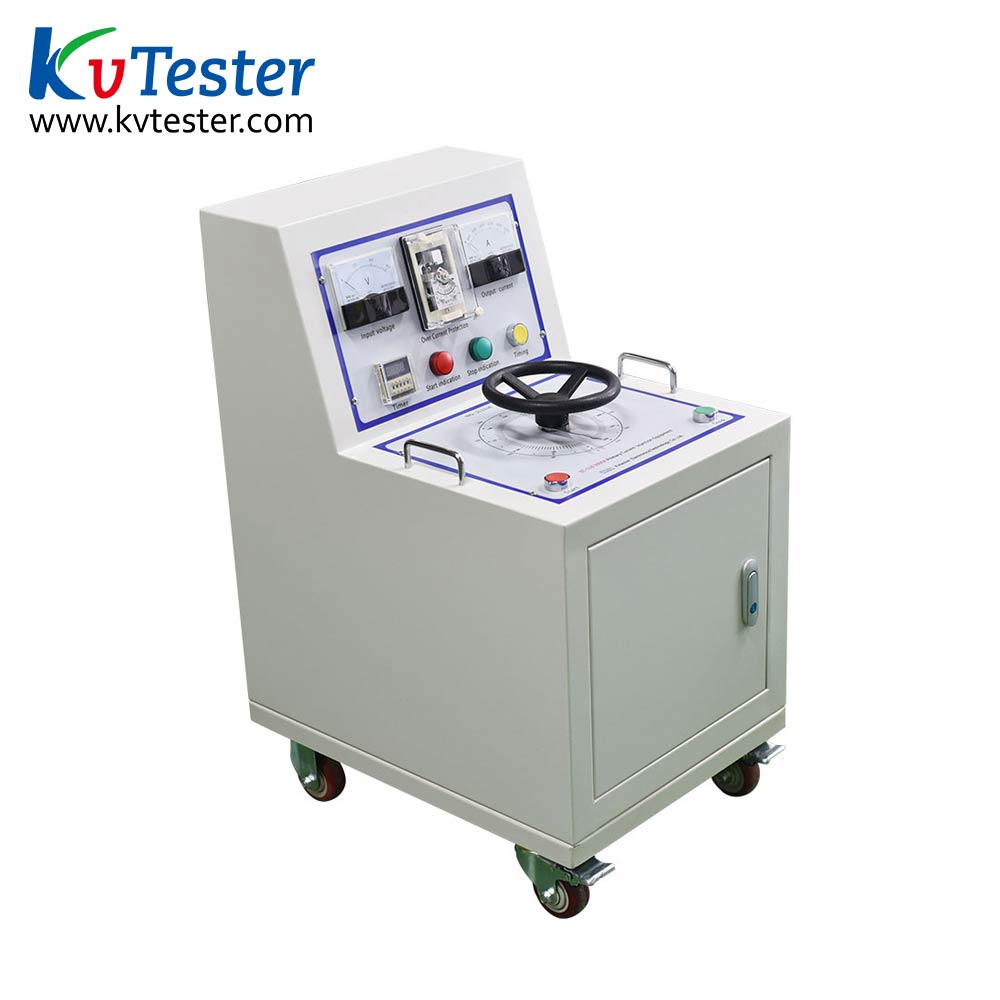

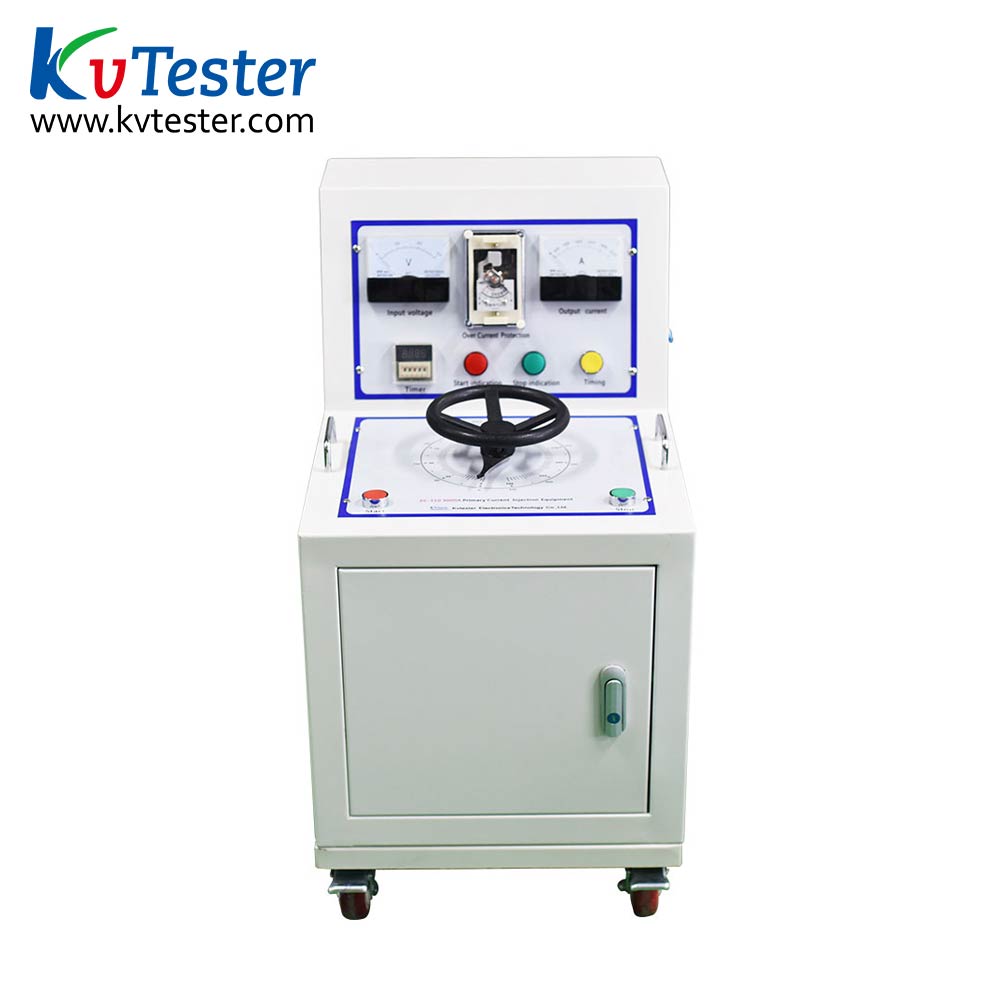

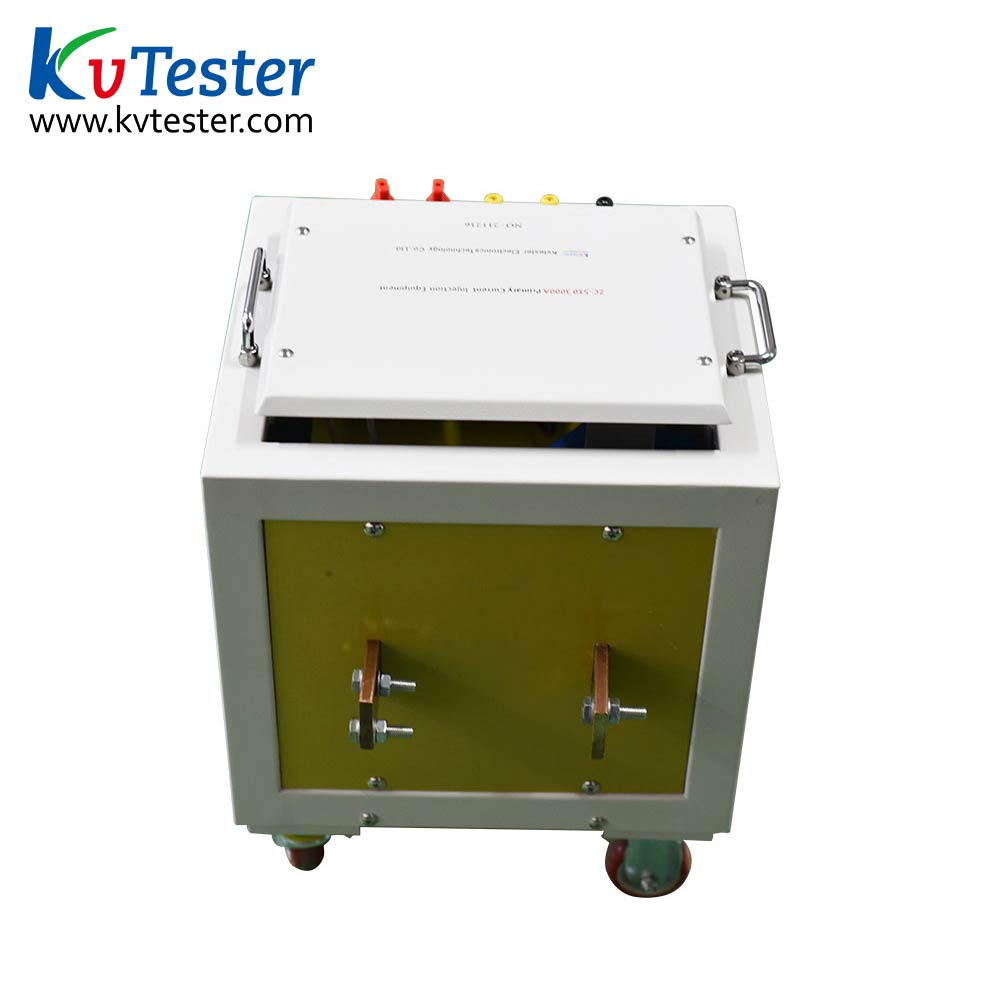

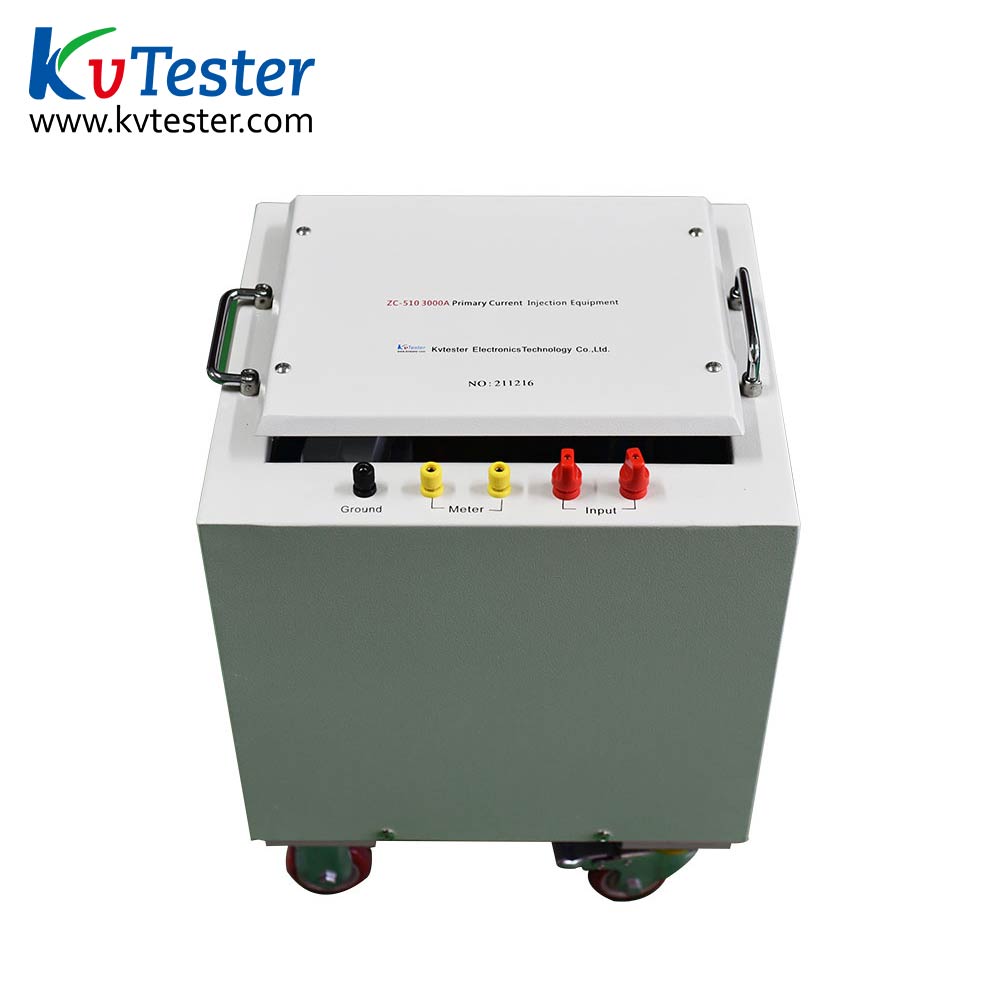

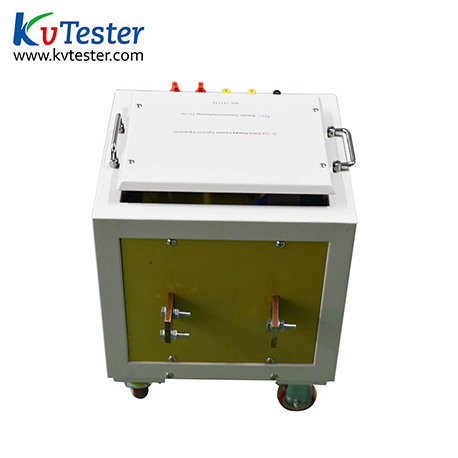

3000A High current generator

type:ZC-510-3000A
Online Service

TAGS:

  • products
  • ZC-510
    • Product Introduction

    ZC-510 High Current Generator is essential equipment used for electrical test to generate high current, which be widely used in power plants, power distribution stations, electrical plants , scientific research, laboratories and other units.  The ZC-510 series are a short-term or intermittent work devices and characterized by small size, light weight, good performance, easy use and maintenance, and covers 500-20000A current output capability.

    • Product Parameters
    Model specification capacity Primary level Secondary Dimensions
    (mm3)    		 weight
    (kg)
    structure
    form
    V1 A1 V2 A2
    ZC-510-2500A 15kVA 380V 39.5A 6V 2500A 600×430×790 145 One-piece
    ZC-510-3000A 18kVA 380V 45A 6V 3000A

    650×410×800

    300×500×500

    70

    55

    		Split type
    ZC-510-4000A 24kVA 380V 63A 6V 4000A

    640×450×820

    300×500×500

    		 180Split type
    ZC-510-5000A 30kVA 380V 79A 6V 5000A

    600×430×900

    300×500×500

    		 155
    135    		 Split type
    ZC-510-6000A 36kVA 380V 95A 6V 6000A

    600×430×900

      300×500×500

    		 150
    140    		 Split type
    ZC-510-8000A 48kVA 380V 126A 6V 8000A

    600×450×950

      350×550×550

    		 150
    180    		 Split type
    ZC-510-10000A 60kVA 220V 158A 6V 10000A 800×600×1100
    380×550×600    		 280
    260    		 Split type


    • Product Features
    1. Large current generator as the current source for the test of electrical equipment for thermal stability, dynamic stability test when low-voltage high current power supply, such as air circuit breaker, contactor, relay temperature rise test and tripping.
    2. Single phase high current generator to test the three phase should be carried out separately.
    3. Three phase high current generator is mainly used for three-phase electrical products testing, and also can be used to test single-phase electrical products. The control scheme of three phase and single phase high current generator is the same, but the three-phase current generator output of three-phase current.
    4. The high current generator is composed of three parts: the transformer, the voltage regulator and the control.
