Cable Fault Locating System
  • Product Introduction

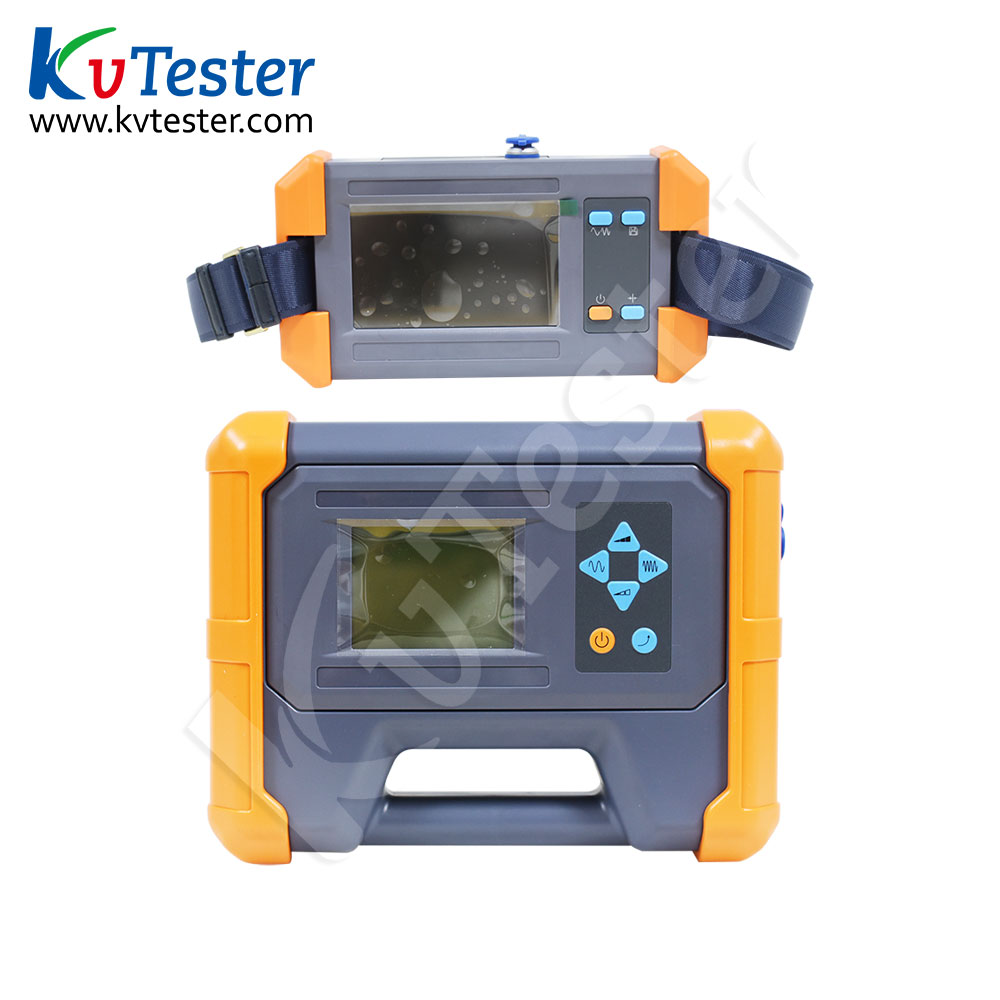

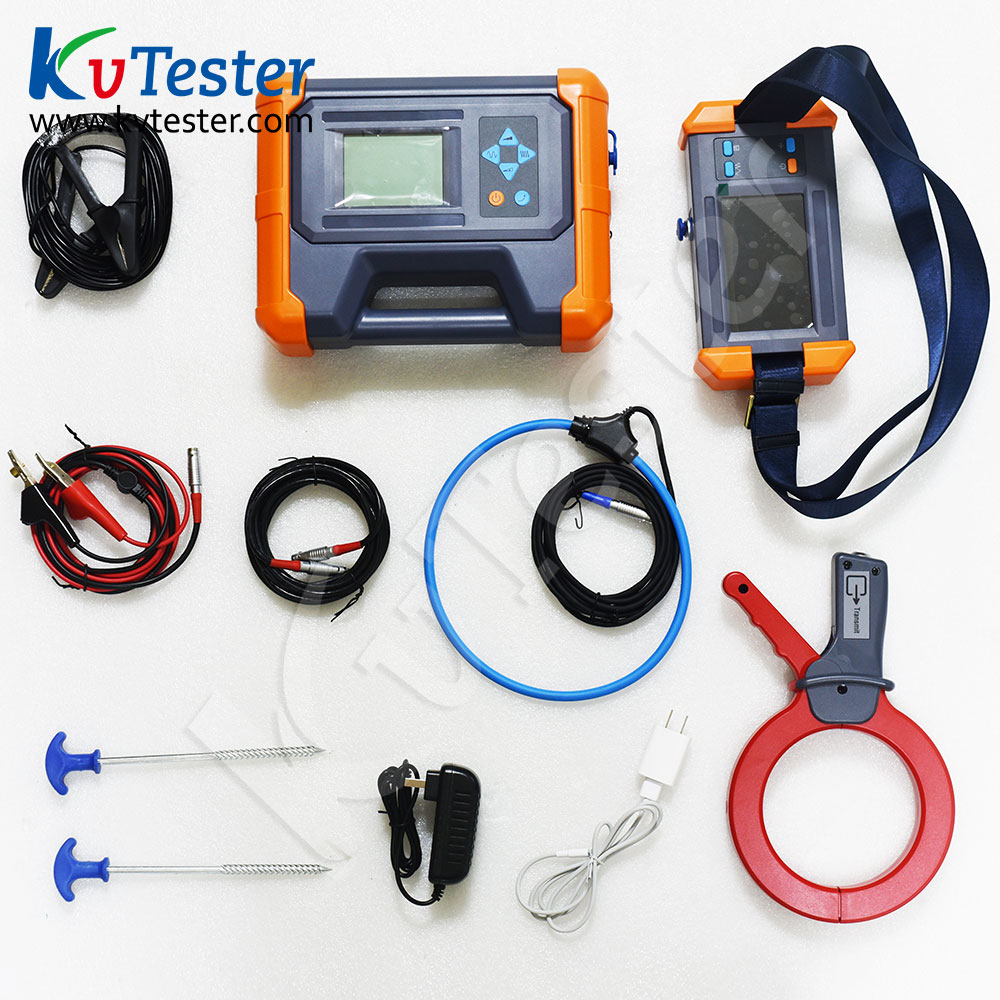

ZC-701D Smart Cable identifier is a set of high-performance cable identifier, consisting of a signal transmitter and receiver, used to accurately identify the target cable in multiple cables, both live and unlive cables, live cables are only suitable for three-core armored cables. High recognition accuracy, easy to use.


  • Product Parameters

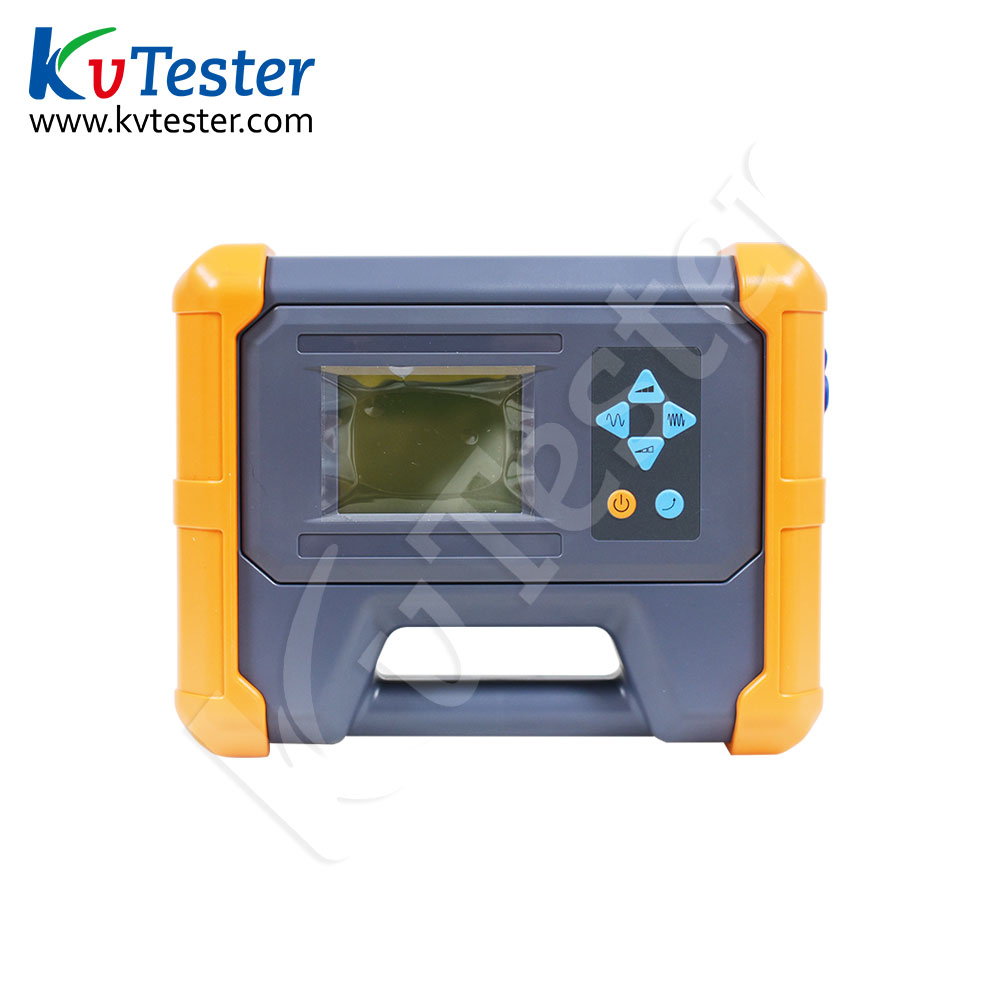

Transmitter
Output modedirect output, caliper coupling
Output frequency640Hz(compound frequency), 1280Hz(compound frequency)
Output powermaximum 10W, 10 gear adjustable, automatic real-time impedance matching
Direct connection output voltageup to 150Vpp
Protection systemOverload and short circuit protection
Man-machine interface320×240 lattice LCD display
Built-in battery4pcs 18650 lithium-ion batteries, nominal 7.4V, 6.8Ah

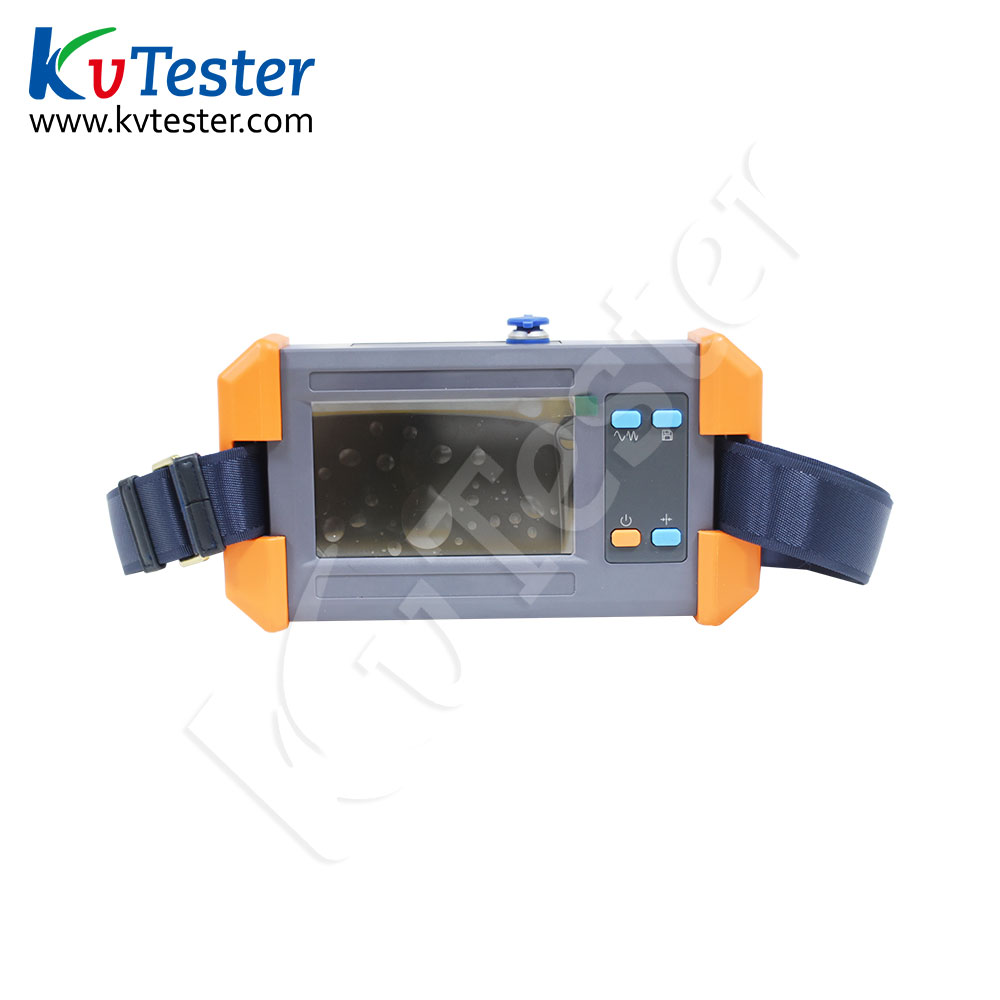

Receiver
Input modeflexible caliper
Receiving frequencyActive detection frequency: 640Hz, 1280Hz
Power frequency passive detection frequency: 50Hz/60Hz(user configurable)
Cable identificationintelligent identification of flexible calipers
Power frequency measurementrange AC 1-1000A, accuracy ±3%
Man-machine interface800x480 LCD display; The liquid crystal size is 121x76mm

Built-in battery

2pcs 18650 lithium-ion batteries, nominal 3.7V, 6.8Ah
Others
Volumetransmitter 280×220×90mm, receiver 220×125×55mm
Weighttransmitter 2.3kg, receiver 0.9kg
Transmitter chargerInput AC100-240V, 50/60Hz, output DC8.4V/2A
Receiver chargerInput AC100-240V, 50/60Hz; Output DC5V/2A
Operating conditionsTemperature :-10℃-40℃, humidity 5-90%RH, altitude <4500m


  • Product Features

1.It is suitable for live and non-live cables. Live cables are only suitable for three-core armored cables.

2.Flexible calipers are easy to receive and use.

3.50Hz/60Hz cable load current measurement function.

4.Multiple signal output modes: direct output, caliper coupling.

5.Transmitter high-power output, output multi-gear adjustable, automatic impedance matching,automatic protection.

6.Unique identification: clearly give the identification result.

7.Built-in large-capacity lithium-ion battery pack, automatic shutdown under voltage, automatic shutdown without operation for a long time.

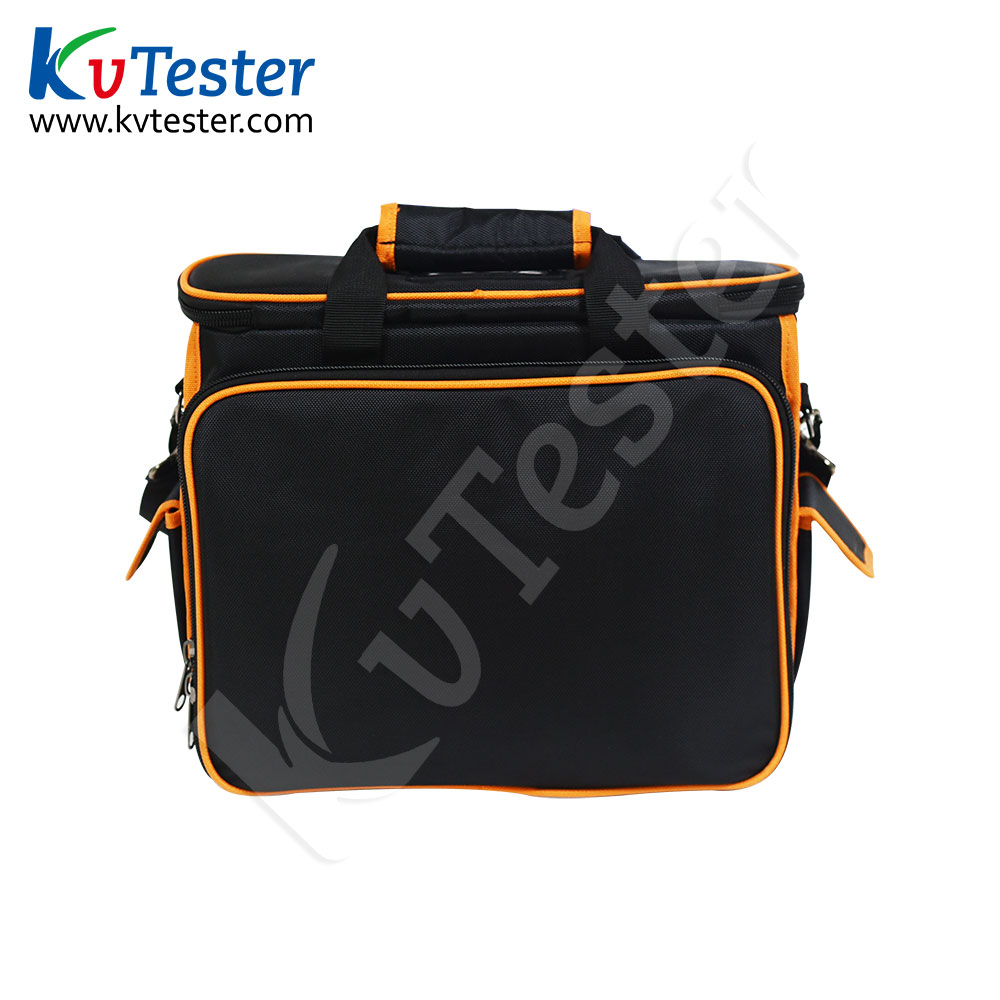

8.Strong, light and portable case.

9.Full digital high-precision sampling and processing, receiving pass band is extremely narrow,strong anti-interference ability, can fully suppress the power frequency and harmonic interference of adjacent running cables and pipelines
