Cable Fault Locating System

Cable fault locator

type:ZC-705DN

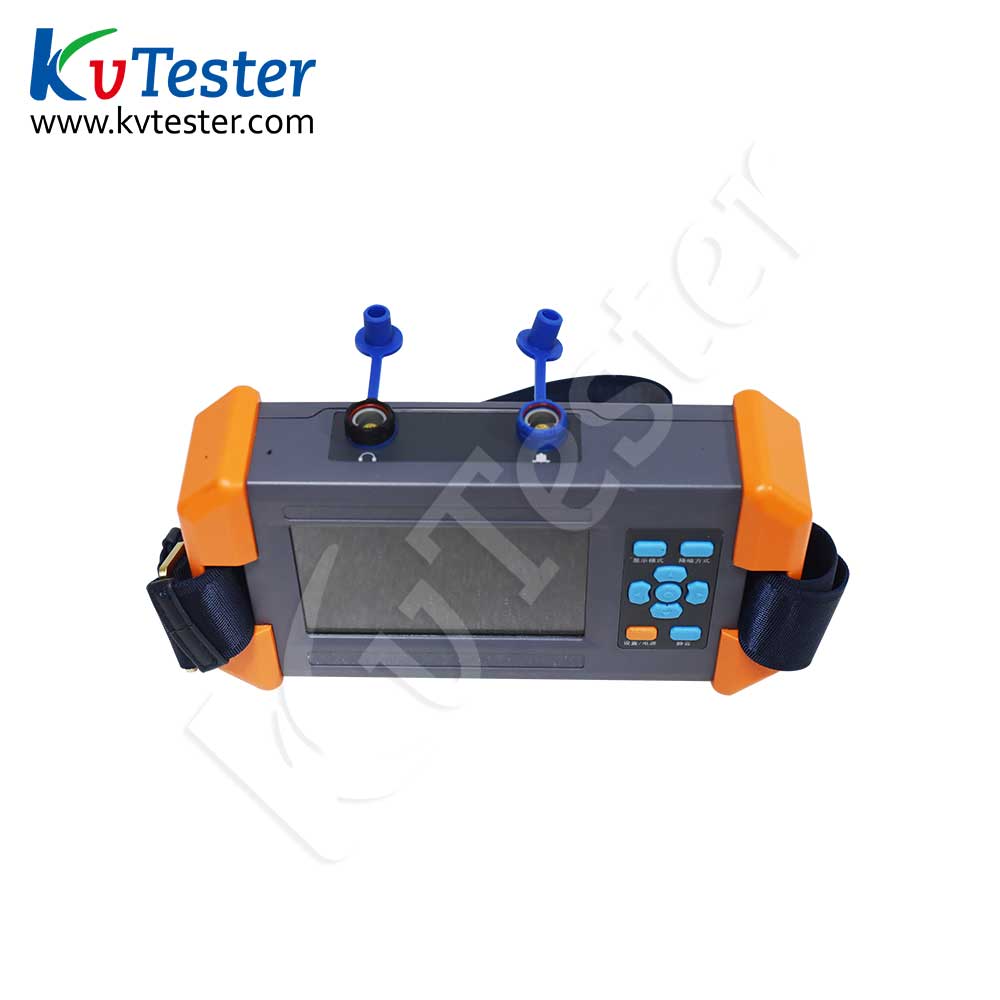

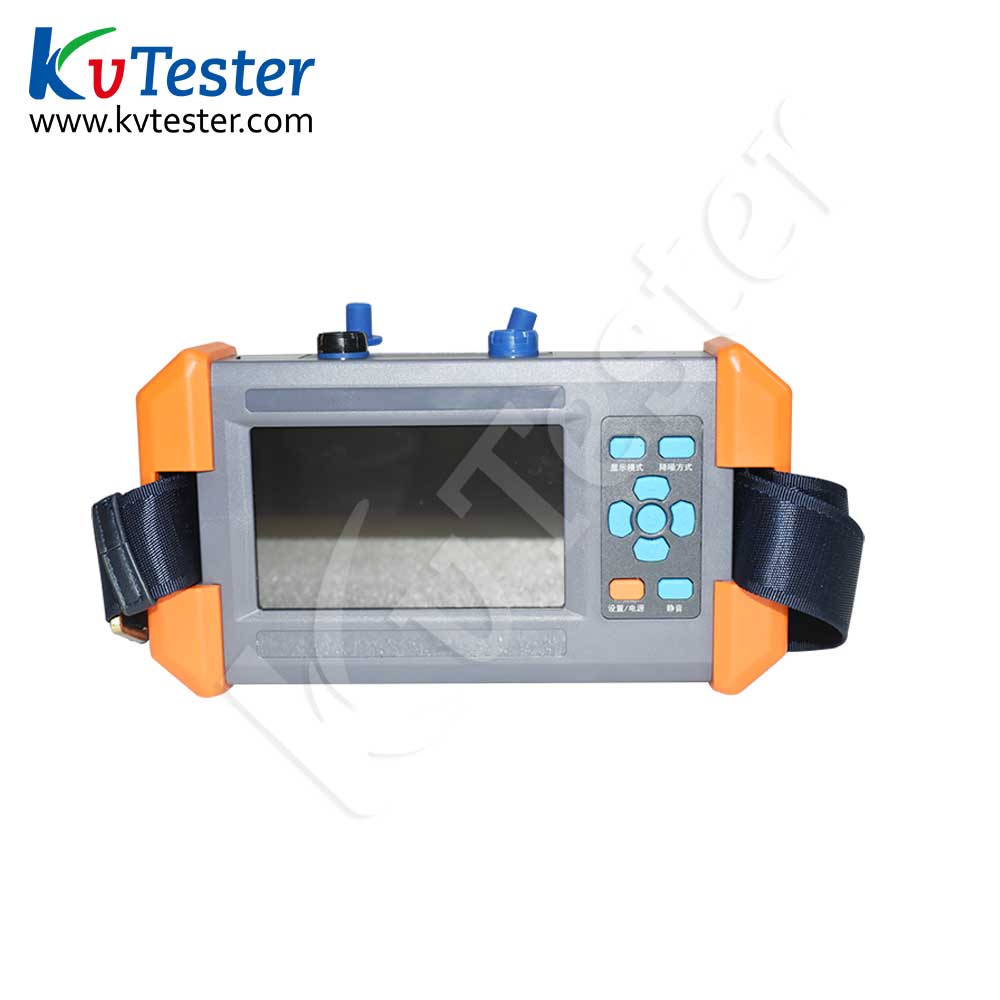

ZC-705DN Cable fault locator is an easy operation device used to pinpoint the fault point. It integrated the function of acoustic magnetic synchronization method, the step voltage method, the magnetic field strength method to make the pinpointing accuracy.


Online Service

TAGS:

  • Product Introduction

ZC-705DN Cable fault locator is an easy operation device used to pinpoint the fault point. It integrated the function of acoustic magnetic synchronization method, the step voltage method, the magnetic field strength method to make the pinpointing accuracy.


  • Product Parameters
acoustic magnetic synchronous pin-pointing
acoustic channelBandwidthall-pass80Hz~1500Hz
low-pass80Hz~400Hz
high-pass200Hz~1500Hz
band-pass150Hz~600Hz
Signal gain≥80dB
Accuracy0.1m
Background noise reduction modesupport noise reduction, no noise reduction, adaptive noise reduction
Power supply
Batterybuilt-in Li-ion battery series,3.7 V,6700mAH
Continuous work timeabove 9 hours
Chargerinput AC220V±10%,50Hz;output 8.4V,output 5V/2A

Display method800X470 dot LCD
Size230mm×127mm×55mm
Weightmain unit 1kg,sensor 1.4kg
Use environment-10℃~40℃,5-90% RH, elevation <4500m


  • Product Features

1.Integrated the function of acoustic magnetic synchronization method

2.Adopts background noise reduction tech. to reduce environment noise

3.Intelligent pinpointing method to calculate the acoustic magnetic delay value

4.Background noise reduction function

5.Auto muting function to avoid the noise

6.Electronic compass function to display the included angle between cable route direction and sensor. It’s very useful for quick pinpointing

7.acoustic channel filtering parameter adjustable

8.Auto gain adjustment function for easy use, automatic trigger by magnetic field

9.High performance anti-noise headphone

10.800x840 color LCD, luminance reach 800cd/m2 to make clear display under the sun

11.Power supply management: power off automatically in 5 min. without action; Power off also when low battery voltage

12.Built-in Li-ion battery
