Cable Fault Locating System

Integrated High Voltage Signal Generator

type:ZC-750

ZC-750 cable testing high-voltage signal generator provides a high-voltage signal source for fault location and precise positioning of power cables, and can be used for fault testing of various voltage levels of power cables. This device utilizes modern power electronics technology and is designed with a high-frequency and high-voltage power supply. It is small in size and lightweight.

Online Service
  • Product Introduction

ZC-750 cable testing high-voltage signal generator provides a high-voltage signal source for fault location and precise positioning of power cables, and can be used for fault testing of various voltage levels of power cables. This device utilizes modern power electronics technology and is designed with a high-frequency and high-voltage power supply. It is small in size and lightweight. The equipment needs to be used in conjunction with the power cable fault rangefinder and cable fault locator series products produced by our company.


  • Product Parameters
Output surge voltage0~32KV, Step variable
Max. power energy2000J
Energy-storage capacitor4μF
PowerAC 220V.50Hz
Volume400mm×460mm×300mm
Weight25 kg
Operating Temperature-10℃-40℃
Humidity5-90%RH
Elevation<4500m


  • Product Features

1.Integrated design with small size and light

2.Different sub-models with difference specification

3.Imported safety case,professional and portable

4.Built in energy-storage capacitor without HV leak and safe operation

5.HV directly connect with the faulty cable, easy wiring and safe operation

6.Built-in high power quick charging and short discharge period

7.Multiple safety protection support Zero position start and release HV power energy after power off

8.Multiple working methods of single,period and DC

9.Step adjustable voltage with LED indication

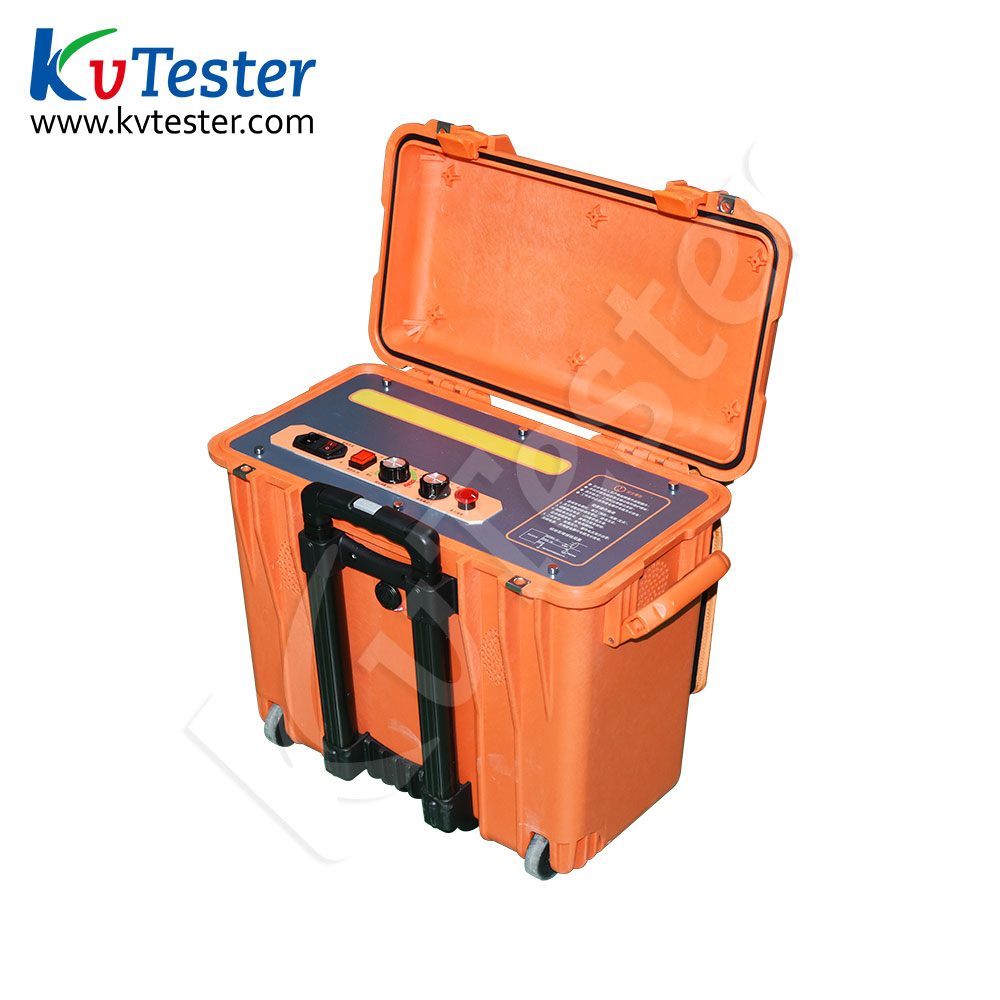

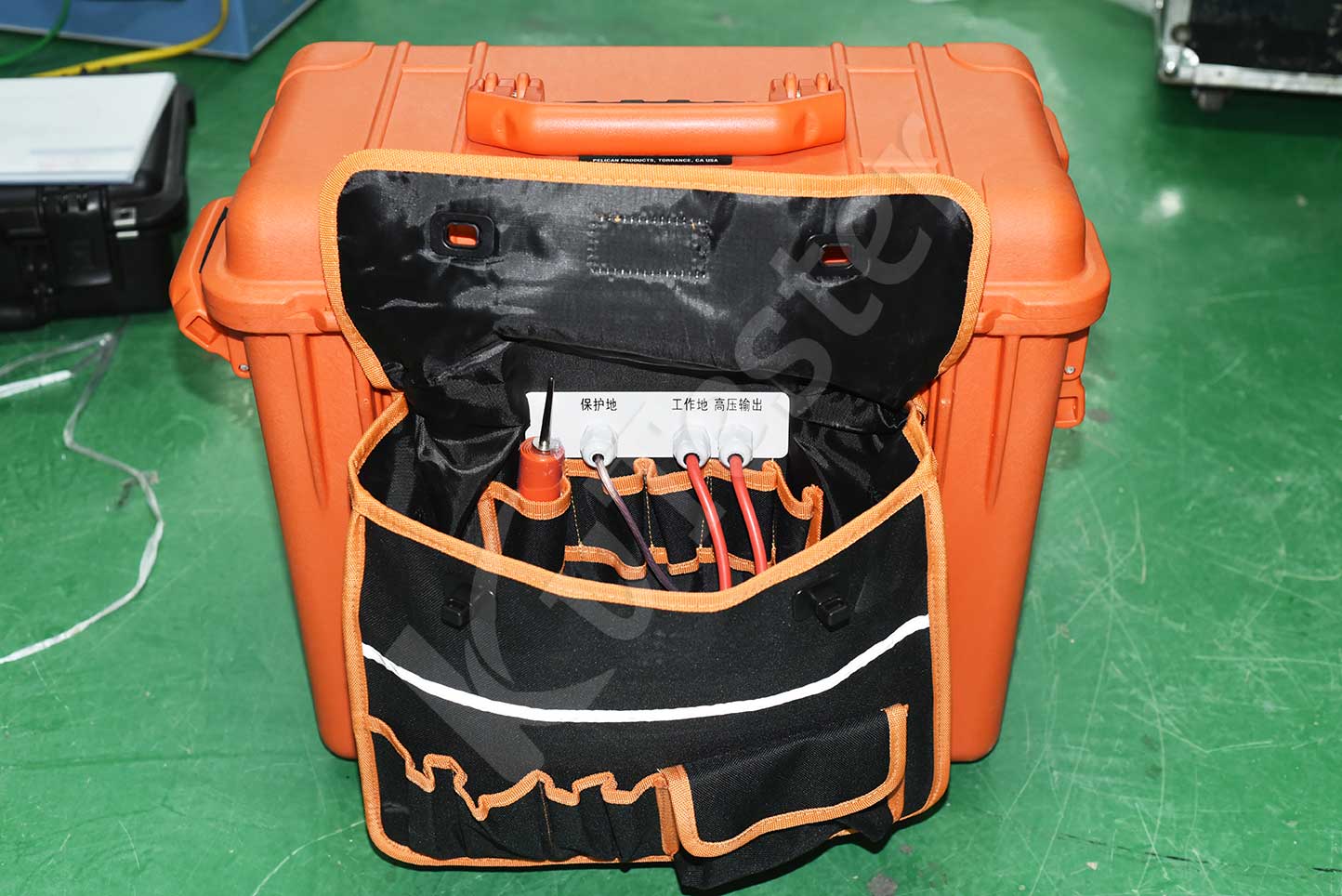

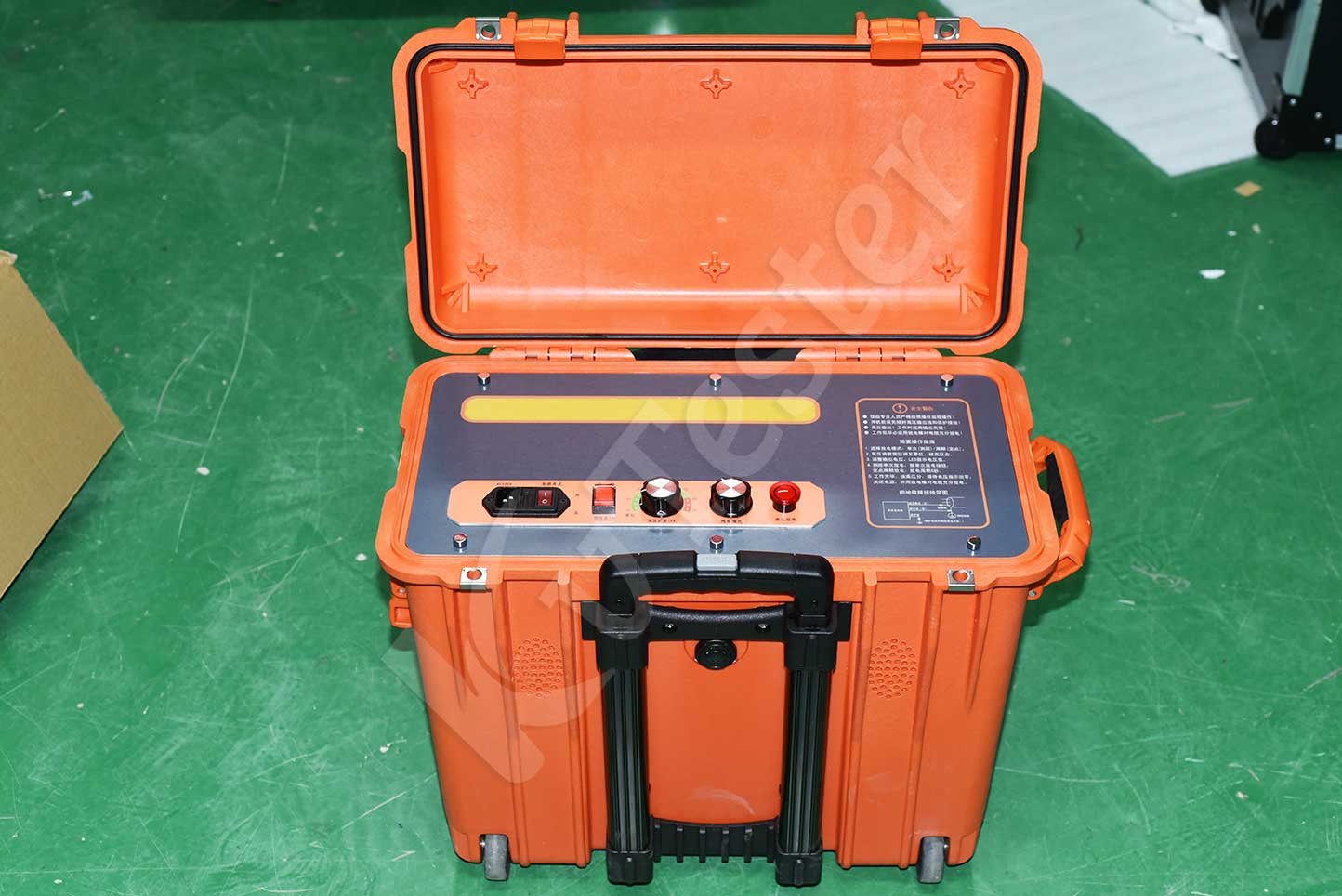

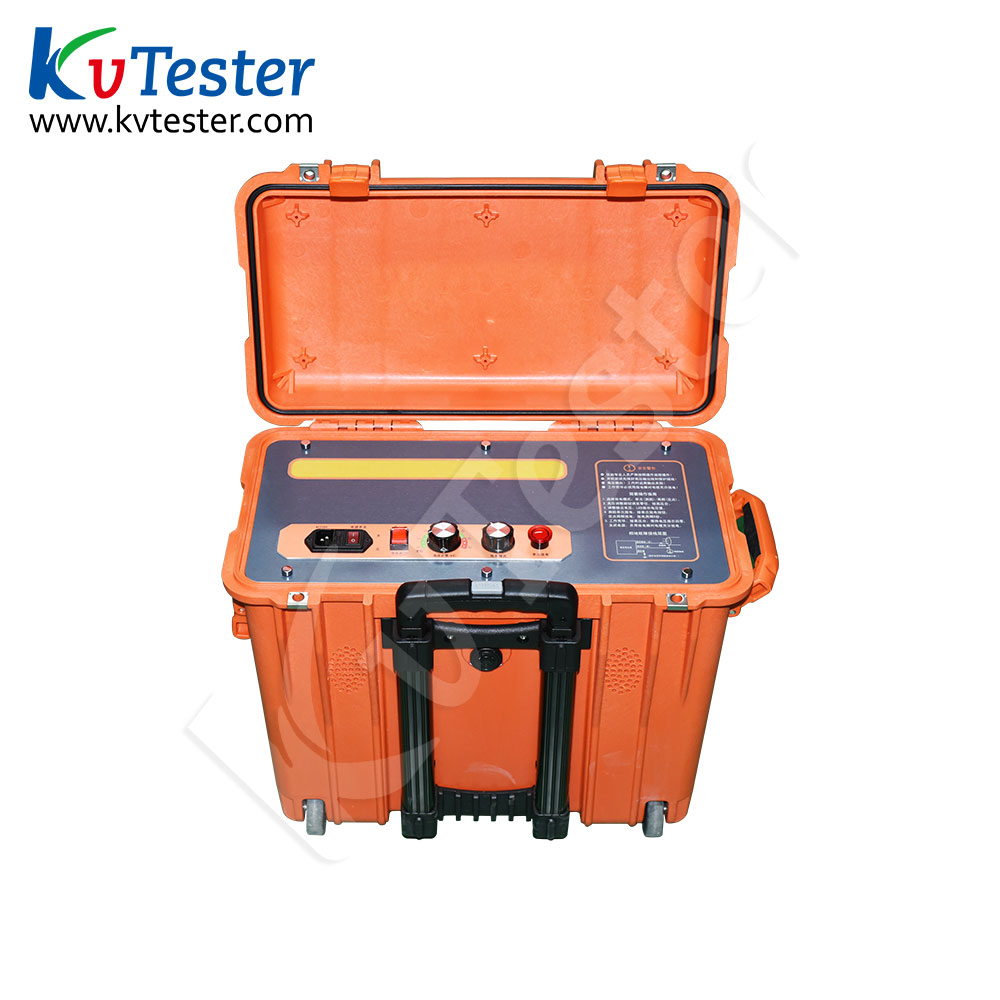

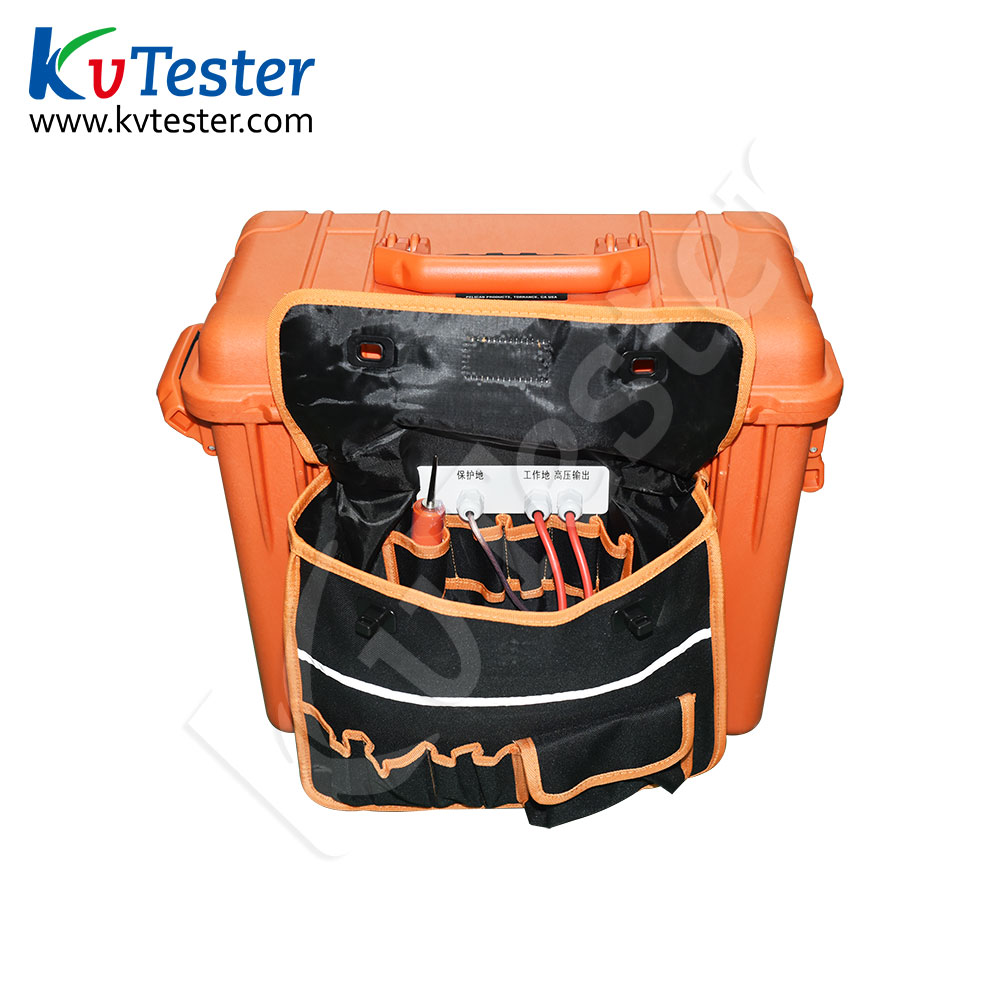

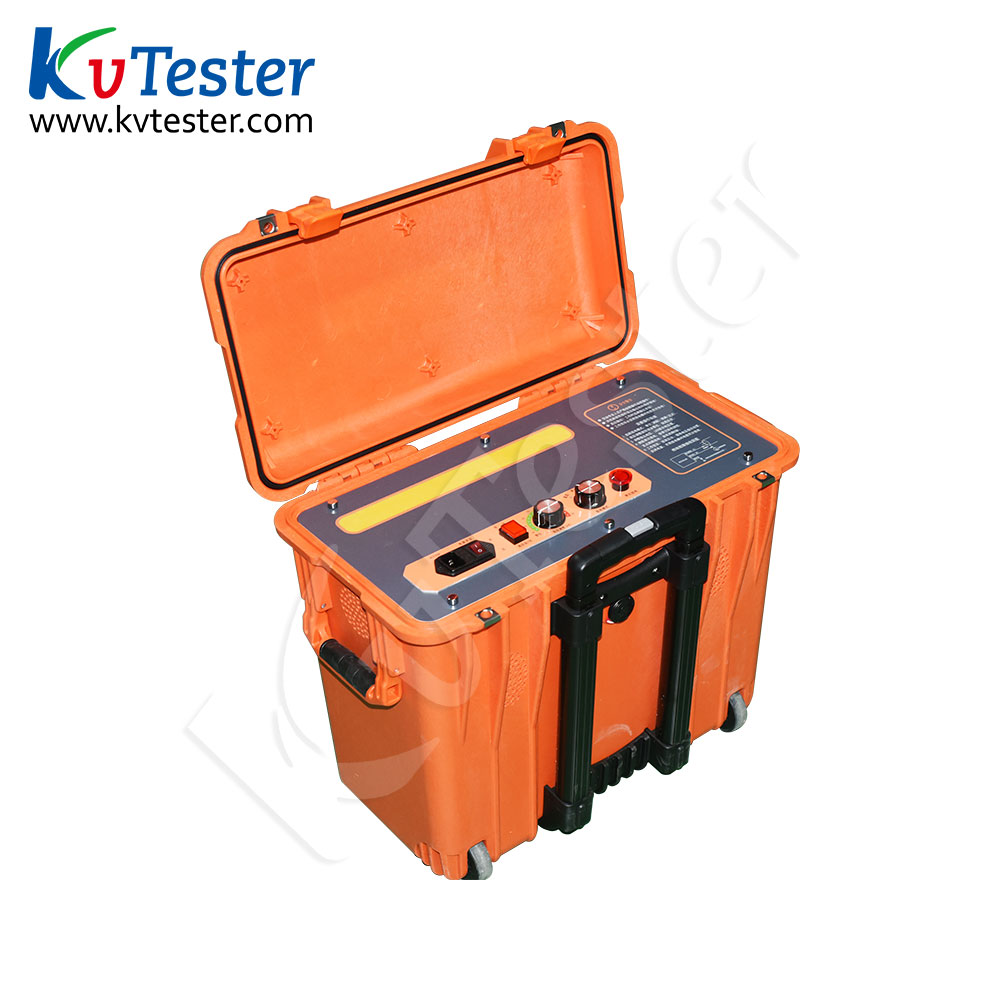

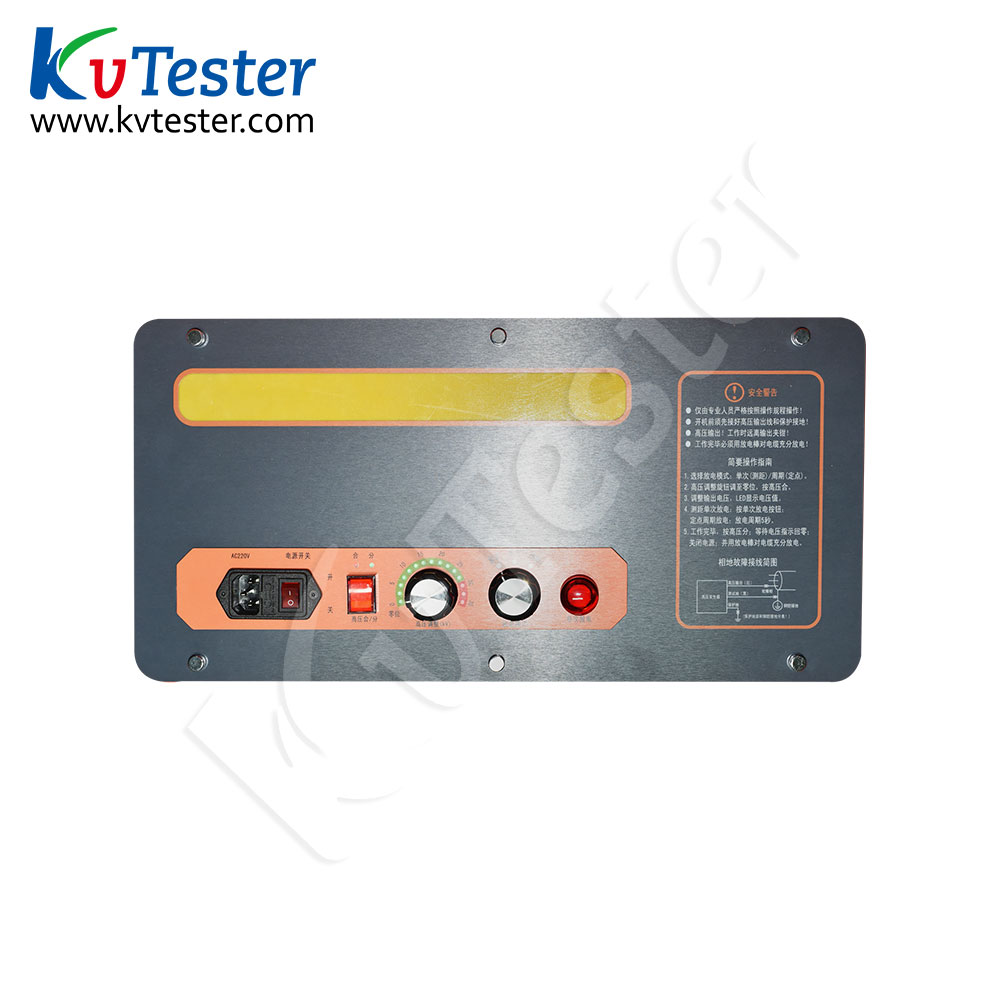

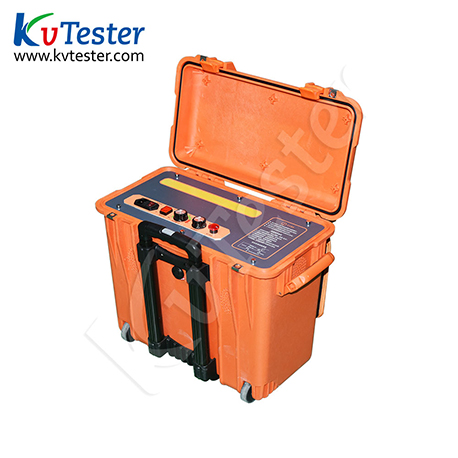

  • Product Picture
