Fully automatic current transformer calibration device

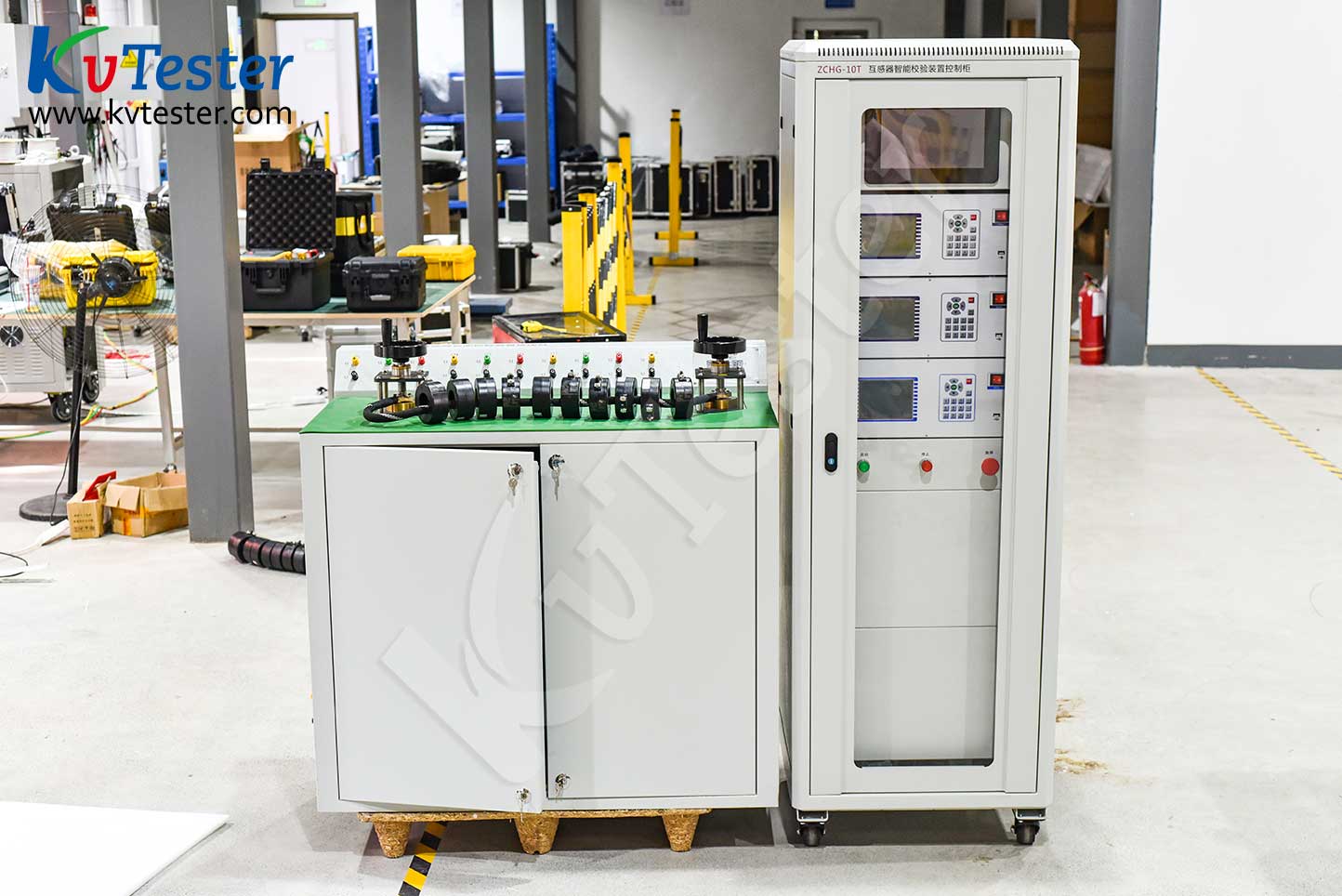

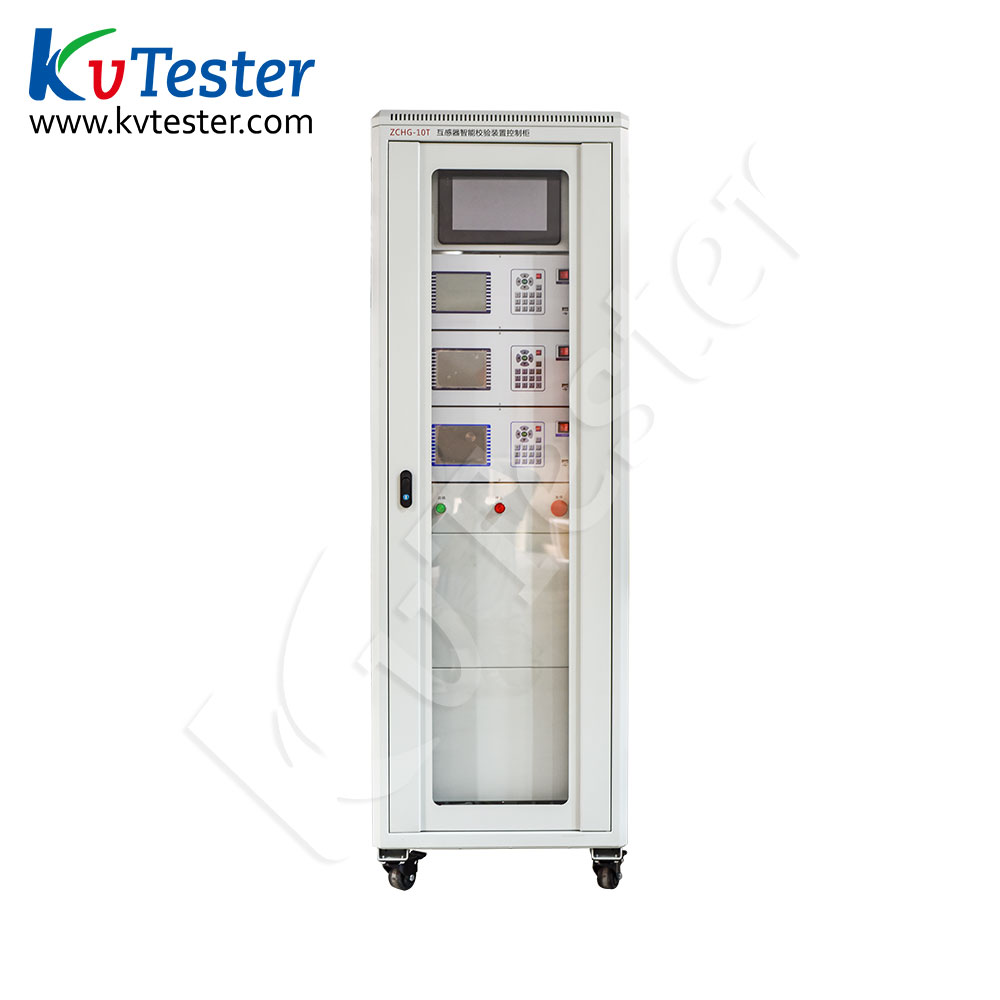

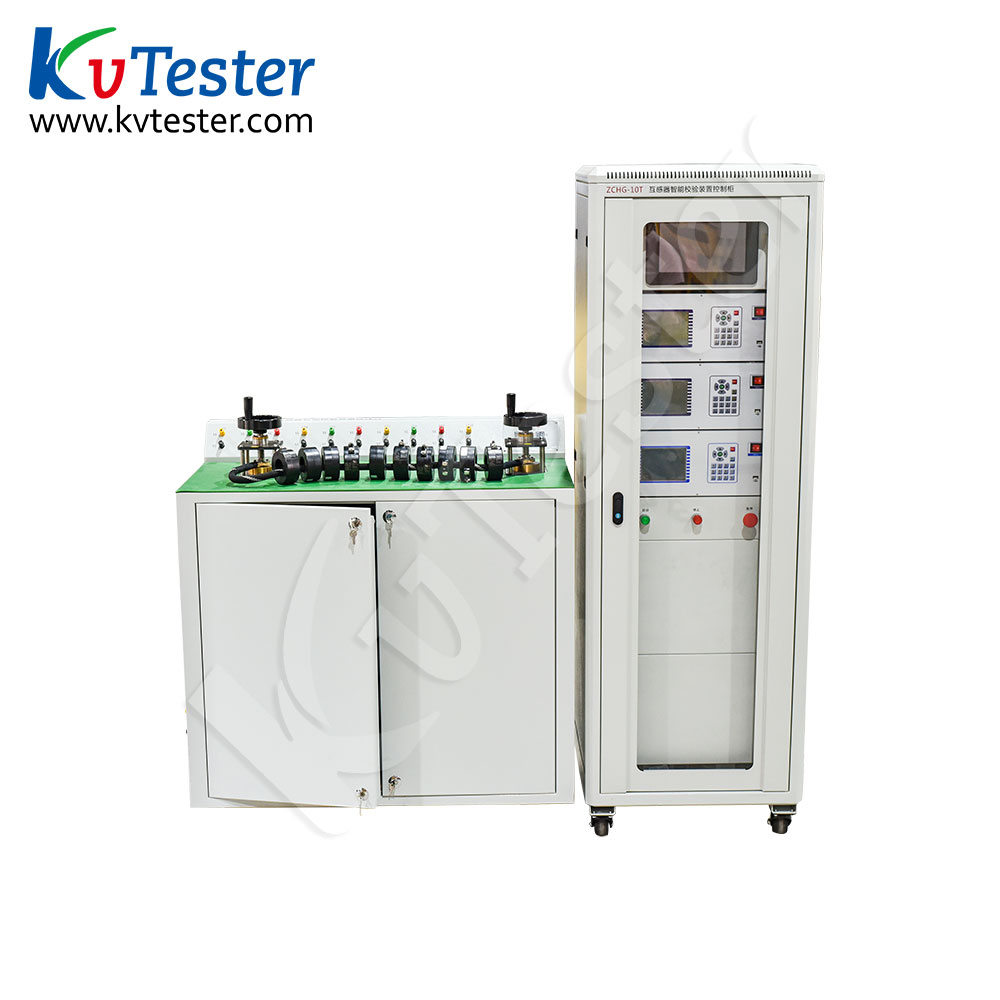

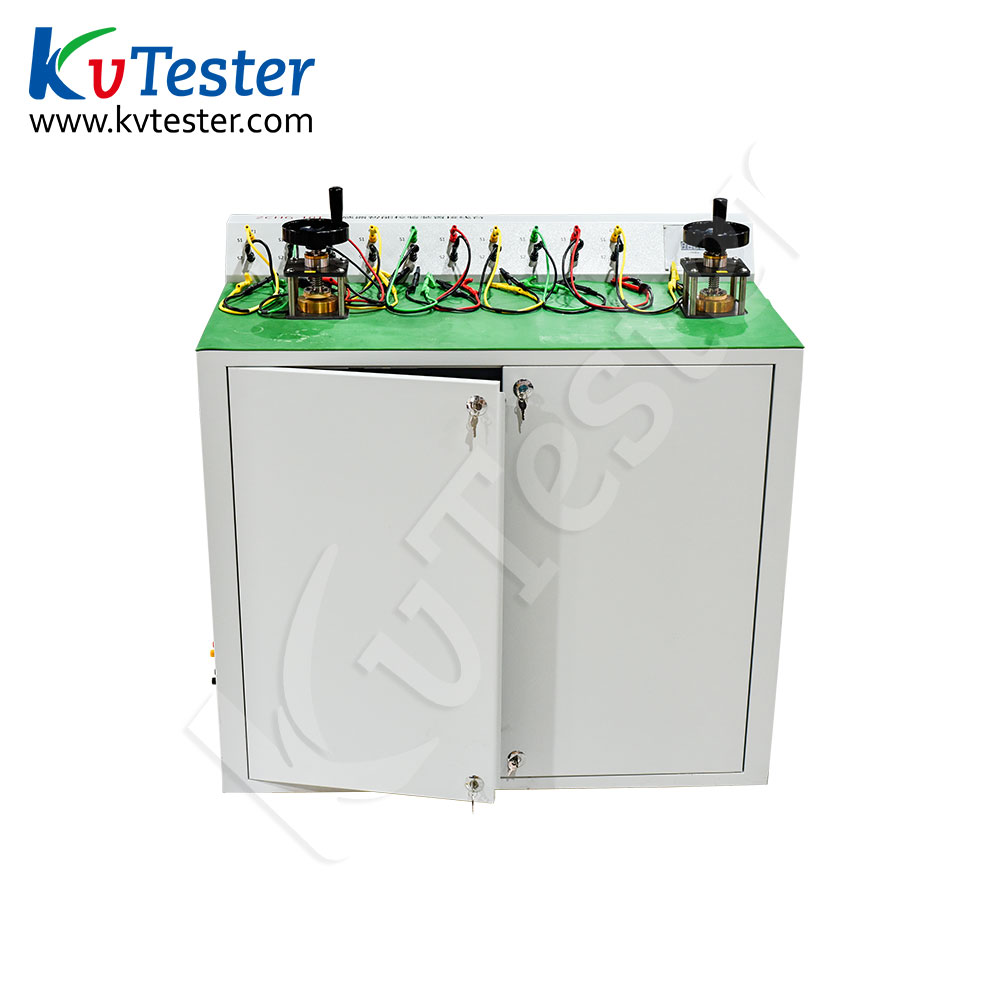

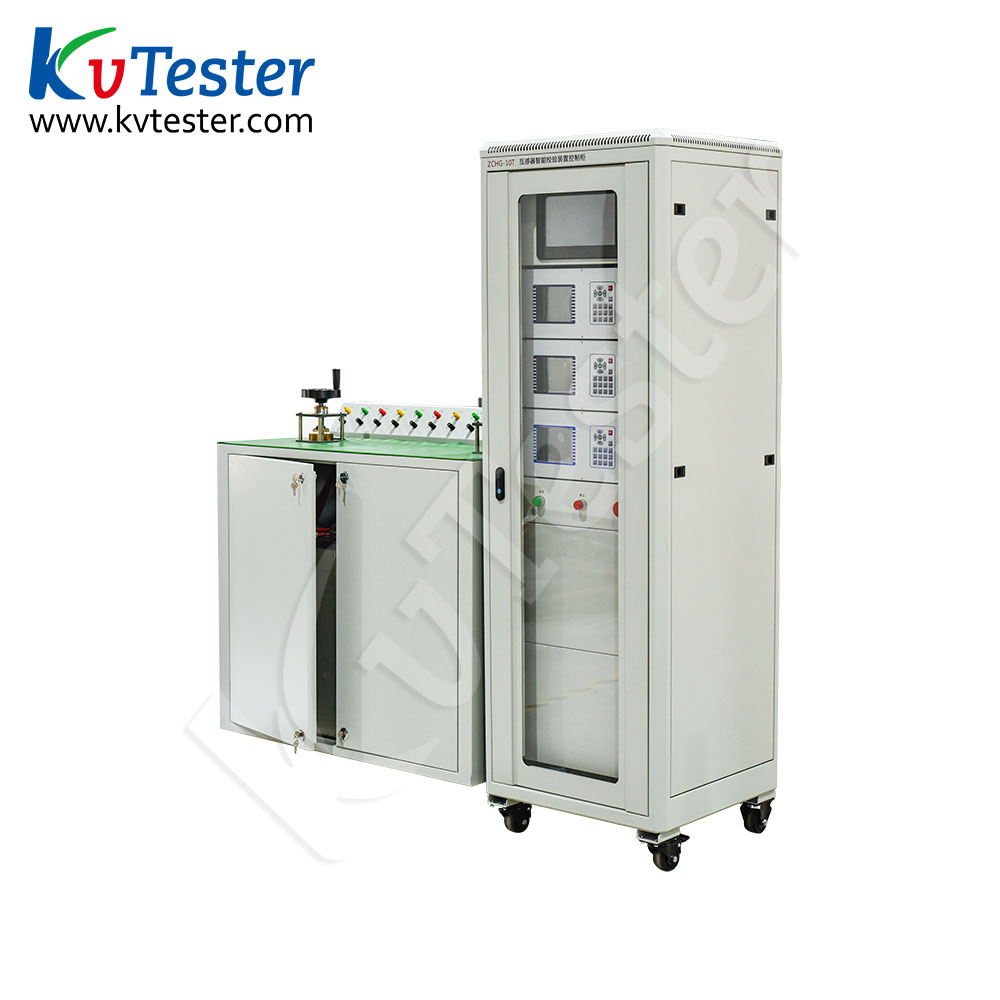

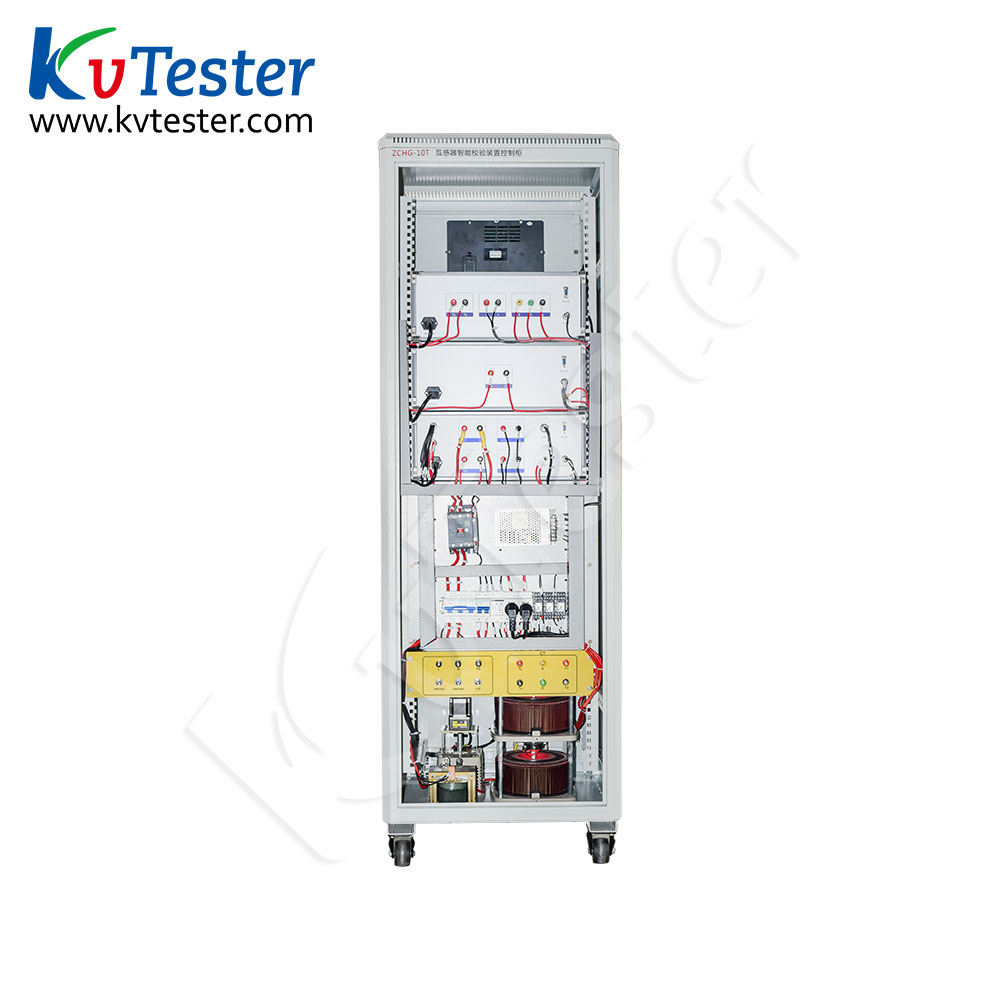

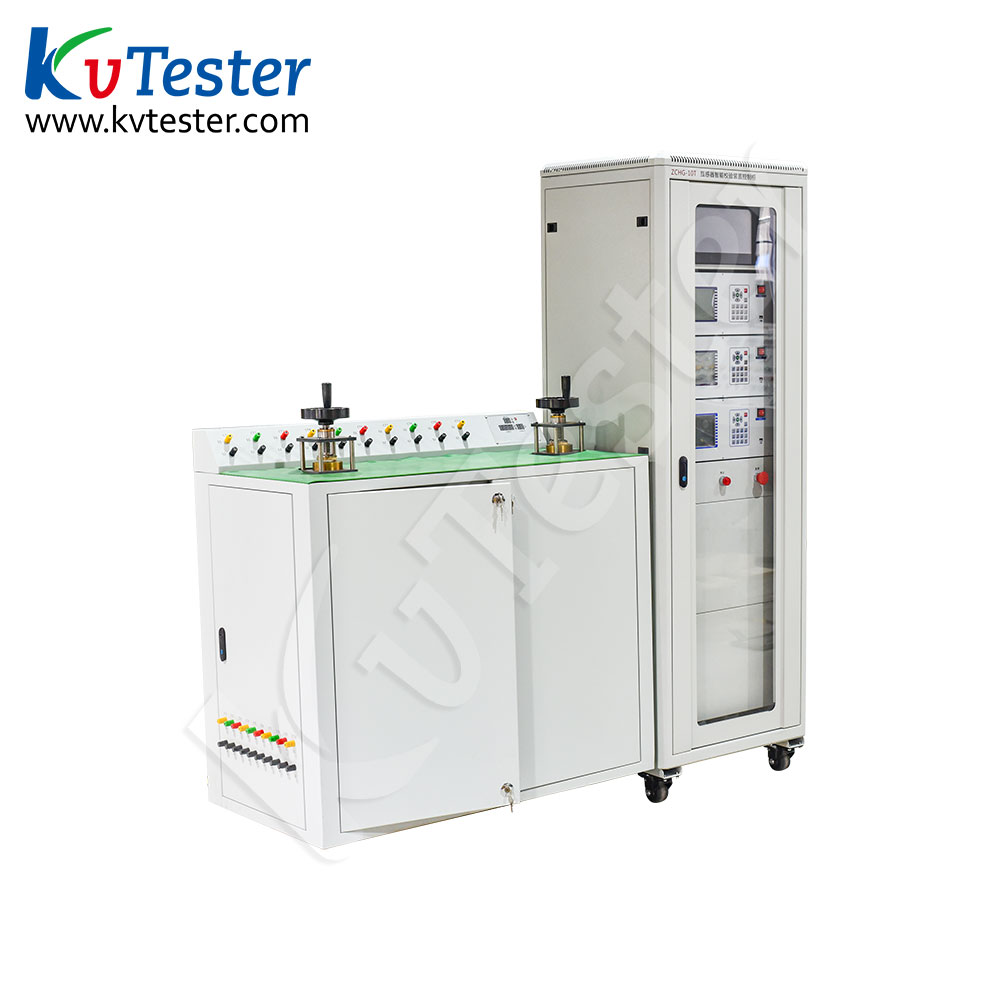

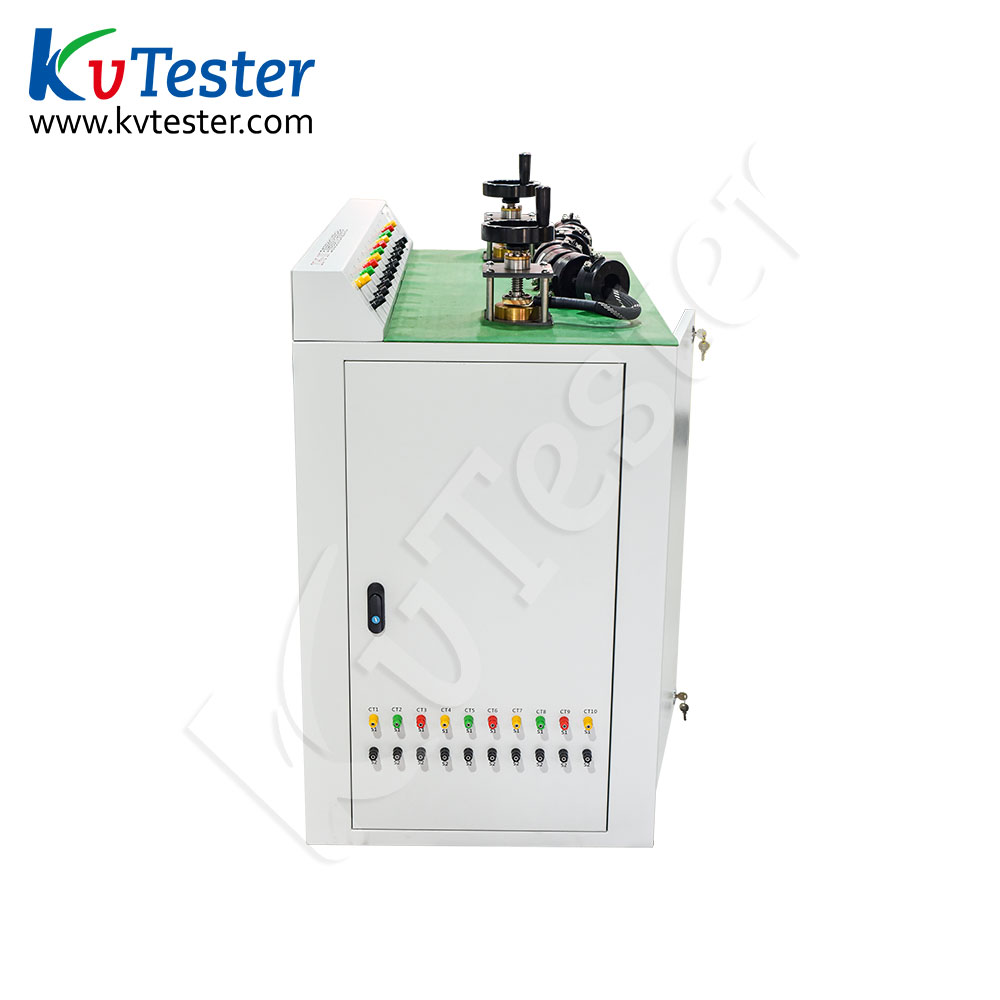

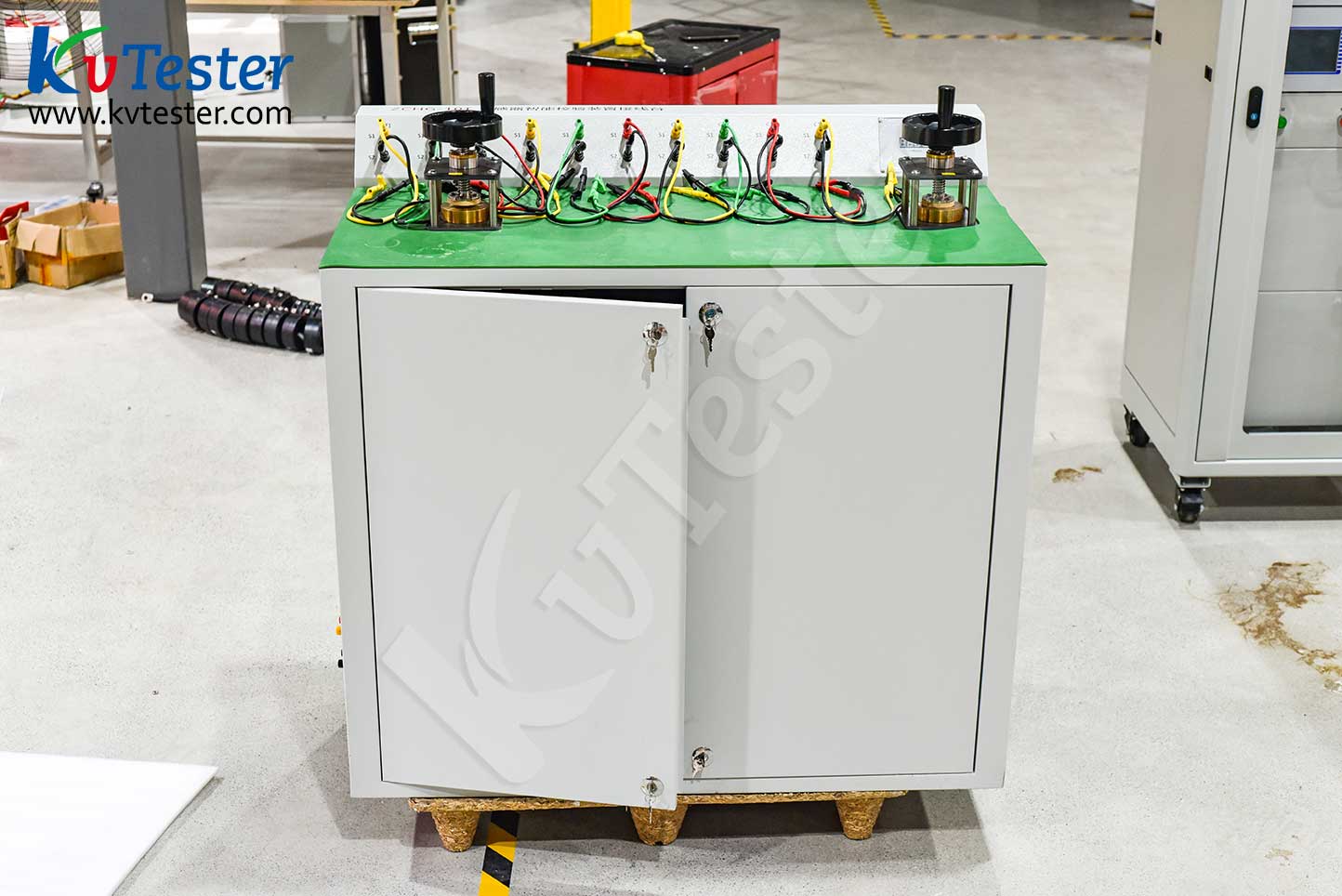

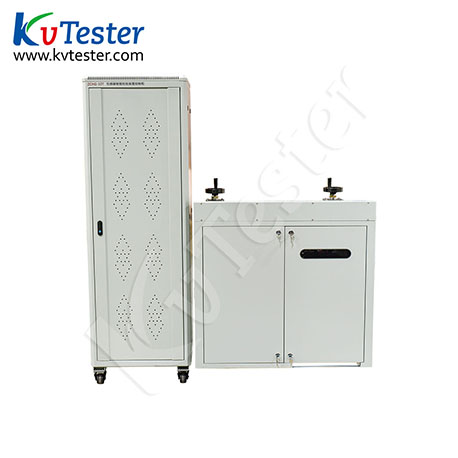

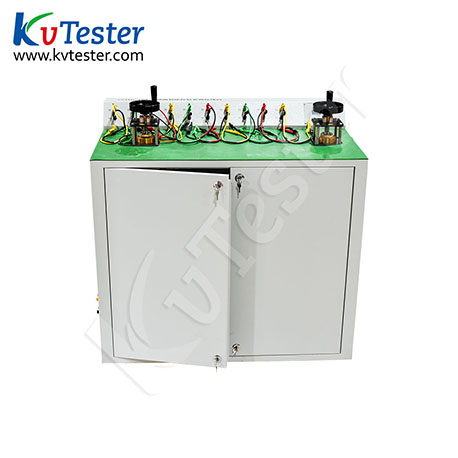

The ZCHG-10T fully automatic transformer calibration device is a new generation transformer calibration device developed by our company to adapt to the fast and accurate characteristics of modern transformer calibration. The device consists of several parts, including ZC-103 intelligent transformer calibrator, ZC-113B current load box, ZCHG-10T transformer automatic calibration device, ZZJST high-speed transformer testing bench, and computer. The operator can set the main parameters of the tested transformer type, range, accuracy level, secondary load, power factor, and tested transformer position through the transformer error verification management software on the computer. Through RS485 transmission and control, the measurement of 10 current transformers with the same transformation ratio can be completed with one current boost, greatly improving work efficiency.

1. This device has three testing modes: online automatic, single machine automatic, and single machine manual.

2. This device adopts RS485 communication port, with stable communication signal and strong anti-interference ability.

3. The primary and secondary wiring of the current standard transformer is automatically switched according to the computer set parameters throughout the process.

4. The current load box has programmable gear switching, eliminating the need for manual calculation and shifting.

5. You can choose any location for verification and synchronously display the locations during the testing process.

6. The high-speed transformer calibrator has various comprehensive protection functions such as overcurrent and overvoltage protection, polarity error, and signal failure

7. The error management software can record, print, and backup experimental data according to the requirements of the verification regulations, and can modify the certificate format as required

8. The error management software can seamlessly connect with the State Grid SG186 marketing system data. (Relevant information is required)

9. The device has a beautiful exterior design, user-friendly functional design, and automated functional display, greatly optimizing the working environment.
