Resonant Test System For Substation Electrical Equipm

type:ZCVF-A
Online Service
  • Product Introduction

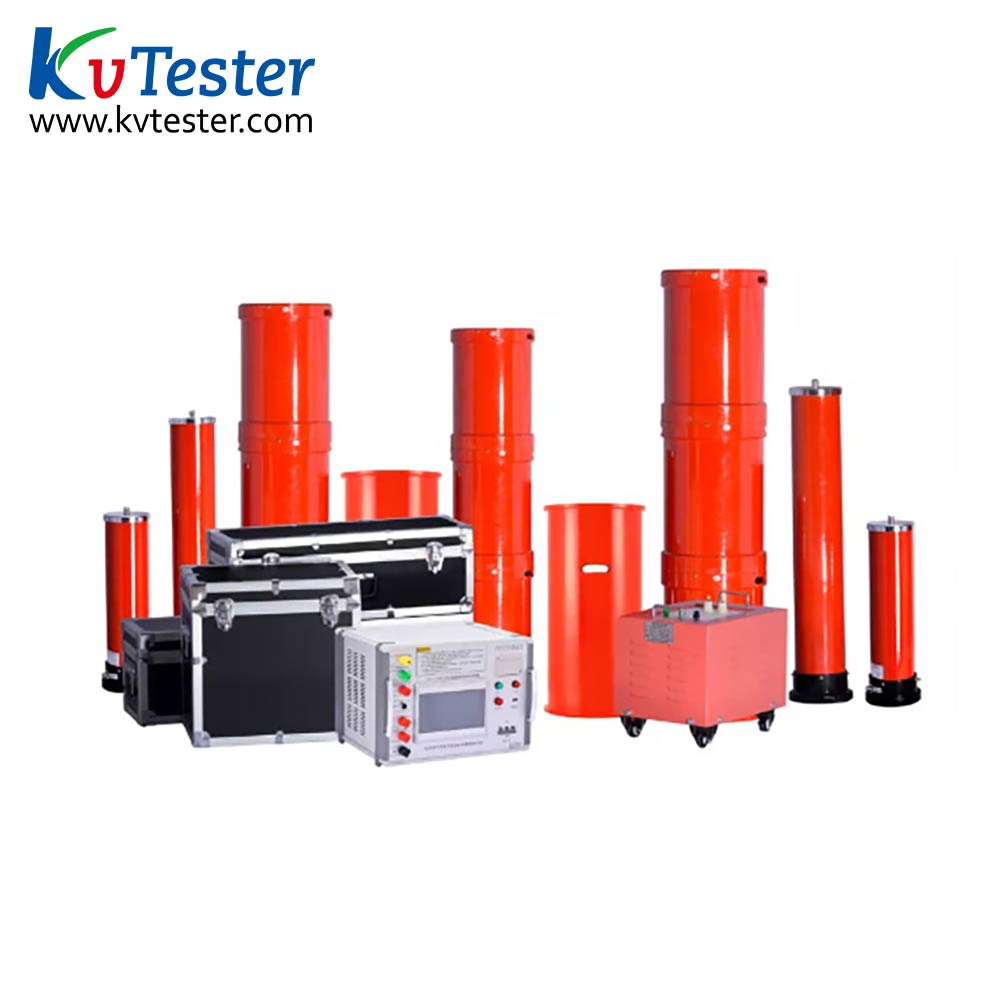

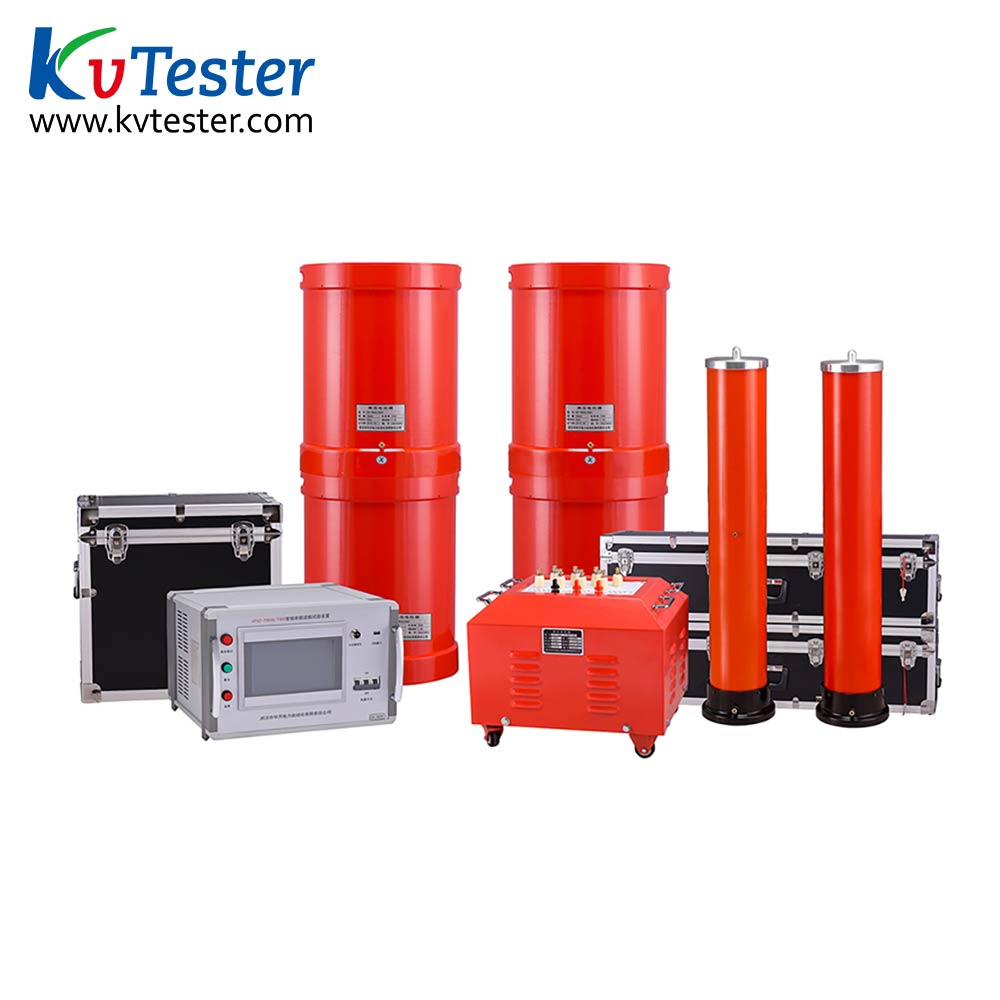

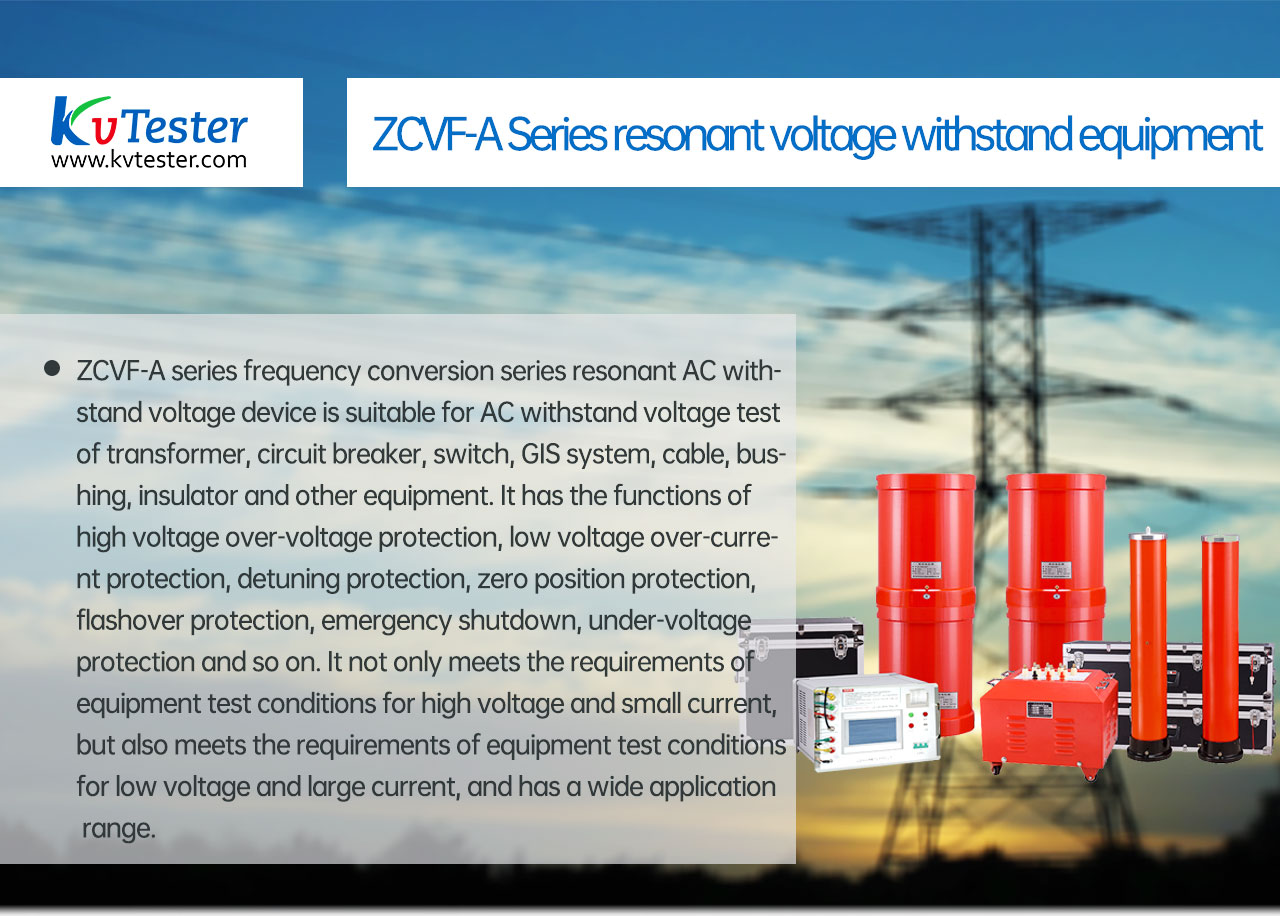

        ZCVF-A series frequency conversion series resonant AC withstand voltage device is suitable for AC withstand voltage test of transformer, circuit breaker, switch, GIS system, cable, bushing, insulator and other equipment. It has the functions of high voltage over-voltage protection, low voltage over-current protection, detuning protection, zero position protection, flashover protection, emergency shutdown, under-voltage protection and so on. It not only meets the requirements of equipment test conditions for high voltage and small current, but also meets the requirements of equipment test conditions for low voltage and large current, and has a wide application range.

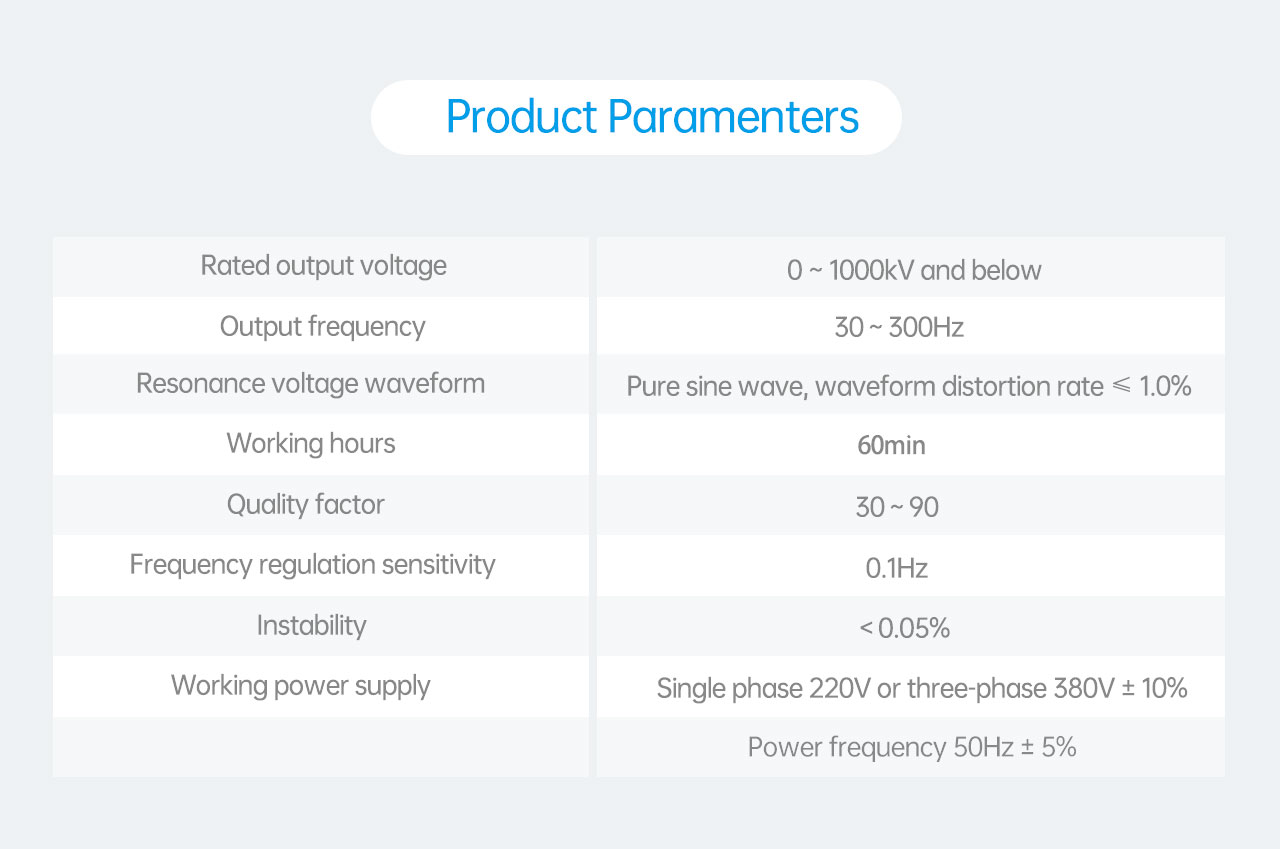

  • Product Parameters
Rated output voltage 0~1000kV and below
Output frequency 30~300Hz
Resonant Voltage Waveform Pure sine wave, waveform distortion rate≤1.0%
Working hours Full Power Continuous Working Time: 60min
Quality factor 30~90
Frequency regulation sensitivity 0.1Hz
Instability <0.05%
Working power supply Single phase 220V or 3 phase 380V±10%
Power frequency 50Hz±5%

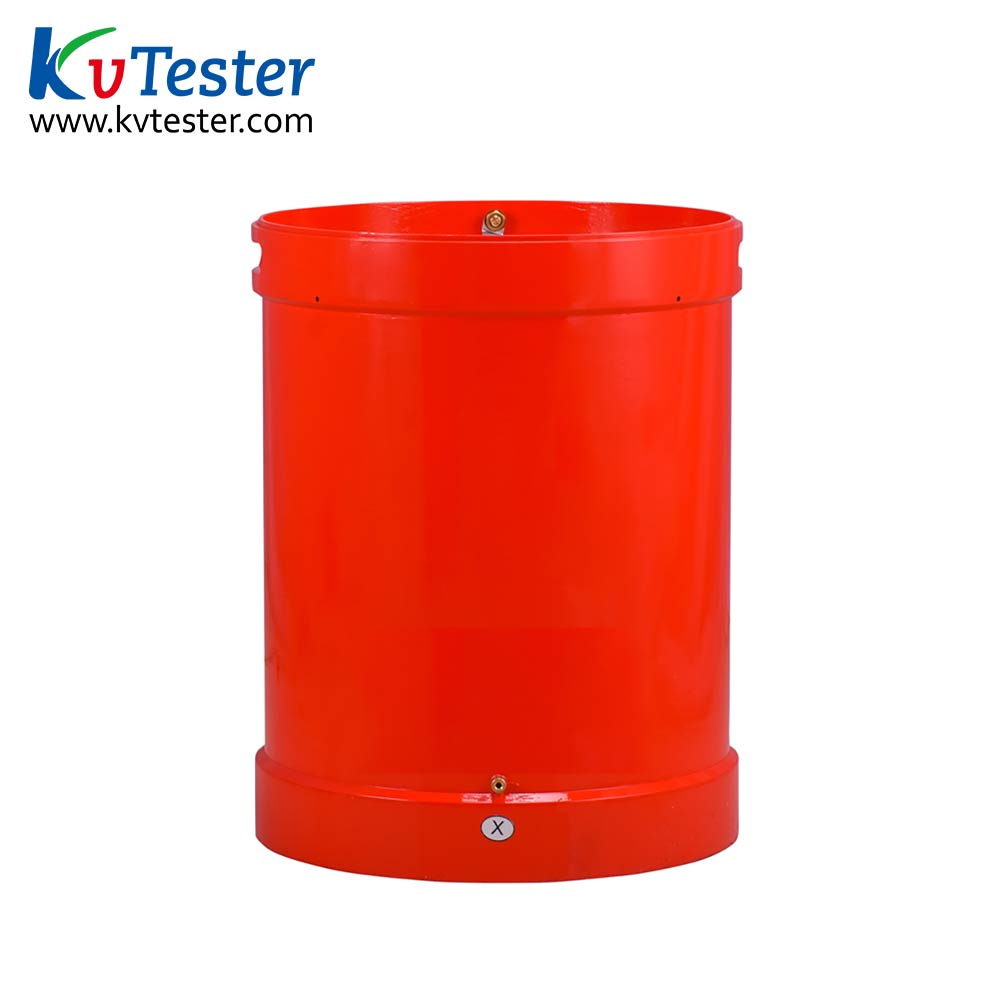

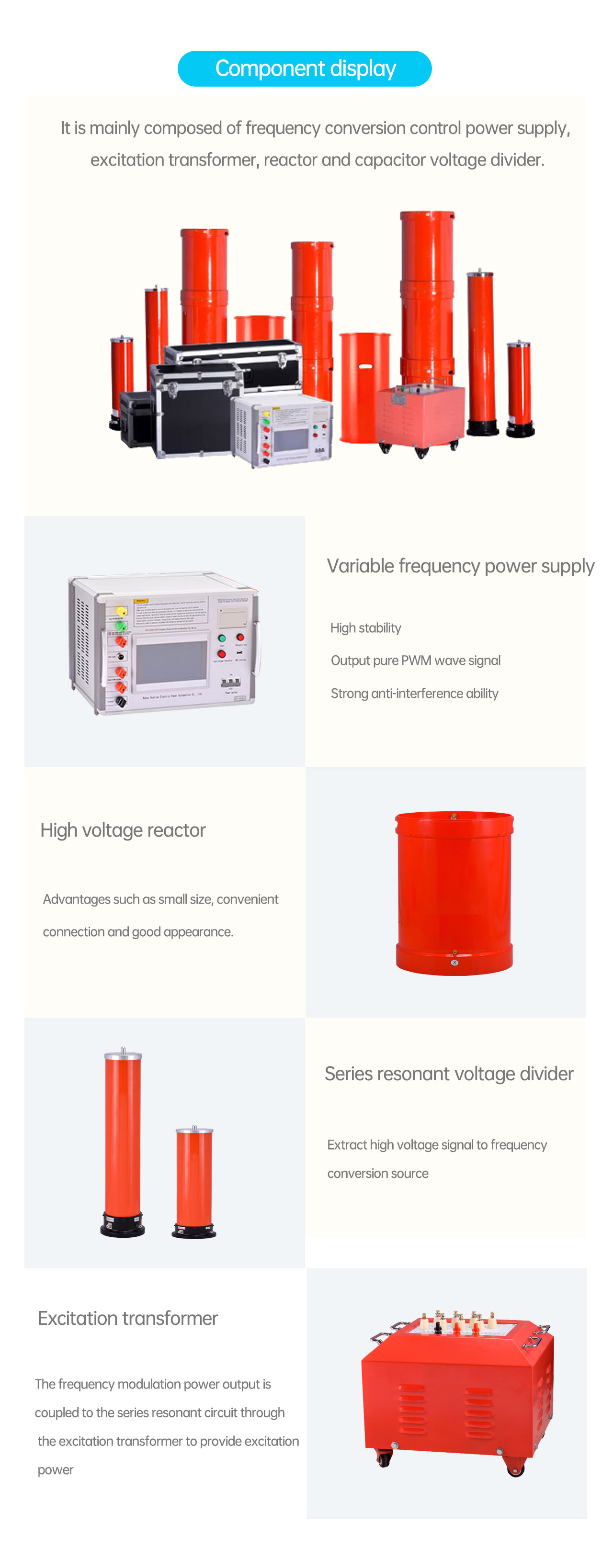

Type Variable frequency power supply Resonant reactor Excitation transformer Divider Scope of application
ZCVF-A-54/54 3kW 27kV/1A 2sets(dry type) 3kVA(dry type) 60kV 1000kVA and below 10kV power transformer 10kV switches and buses、PT、CT etc. 10kV(300mm2)cable≤1.0km
ZCVF-A-108/108 5kW 27kV/1A 4sets(dry type) 5kVA(dry type) 110kV 31500kVA and below 35kV power transformer 35kV switches and buses ,PT、CT etc. 10kV(300mm2)cable 2km 35kV(300mm2)cable 0.5km
ZCVF-A-200/200 10kW 50kV/1A 4sets(dry type) 10kVA(dry type) 200kV 50000kVA and below 110kV power transformer 110kVGIS、PT、CT etc.(Preventive test) 35kV(300mm2)cable≤1.0km 10kV(300mm2)cable≤2.0km
ZCVF-A-270/270 15kW 45kV/1A 6sets(dry type) 15kVA(dry type) 300kV 50000kVA and below 110kV power transformer 110kVGIS、PT、CT etc. 35kV(300mm2)cable≤1.2km 10kV(300mm2)cable≤3.0km
ZCVF-A-800/400 30kW 50kV/2A 8sets(dry type) 100kV/2A 4sets(oil type) 30kVA(dry type) 30kA(dry type) 400kV 80000kVA and below 220kV power transformer 50000kVA and below 110kV power transformer 110kV/220kVGIS、PT、CT etc. 35kV(300mm2)cable ≤2.0km 110kV(300mm2)cable ≤0.7km
ZCVF-A-1600/800 60kW 200kV/2A 4sets(oil type) 60kVA(dry type) 800kV 80000kVA and below 220kV power transformer 50000kVA and below 110kV power transformer 500kVGIS、PT、CT etc. 220kV switches、GIS、PT、CT ect. 110kV(400mm2)cable≤1.5km 220kV(400mm2)cable≤1.0km

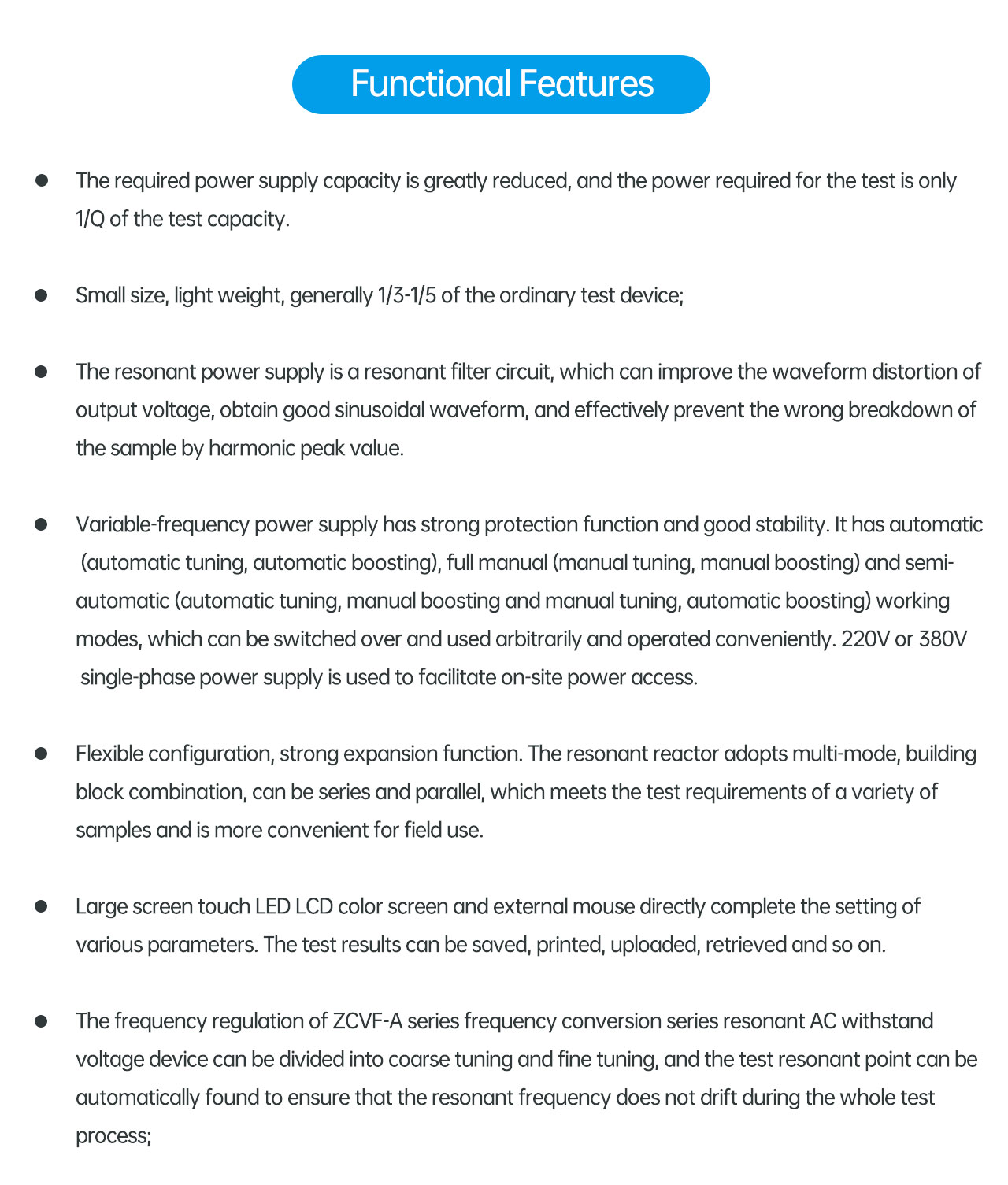

  • Product Features
    1. The required power supply capacity is greatly reduced, and the power required for the test is only 1/Q of the test capacity.
    2. Small size, light weight, generally 1/3-1/5 of the ordinary test device;
    3. The resonant power supply is a resonant filter circuit, which can improve the waveform distortion of output voltage, obtain good sinusoidal waveform, and effectively prevent the wrong breakdown of the sample by harmonic peak value.
    4. Variable-frequency power supply has strong protection function and good stability. It has automatic (automatic tuning, automatic boosting), full manual (manual tuning, manual boosting) and semi-automatic (automatic tuning, manual boosting and manual tuning, automatic boosting) working modes, which can be switched over and used arbitrarily and operated conveniently. 220V or 380V single-phase power supply is used to facilitate on-site power access.

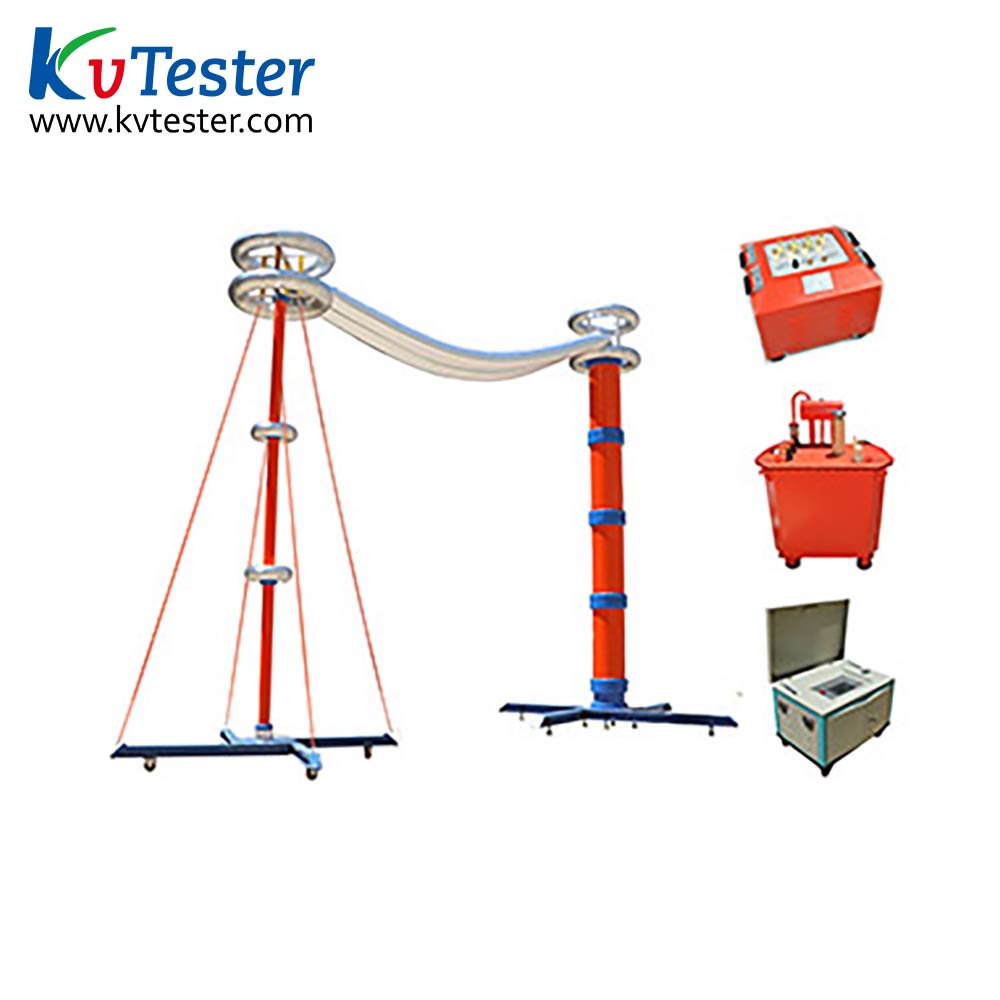

    5. Flexible configuration, strong expansion function. The resonant reactor adopts multi-mode, building block combination, can be series and parallel, which meets the test requirements of a variety of samples and is more convenient for field use.
    6. Large screen touch LED LCD color screen and external mouse directly complete the setting of various parameters. The test results can be saved, printed, uploaded, retrieved and so on.
    7.The frequency regulation of ZCVF-A series frequency conversion series resonant AC withstand voltage device can be divided into coarse tuning and fine tuning, and the test resonant point can be automatically found to ensure that the resonant frequency does not drift during the whole test process; the required power supply capacity is small, the power required for the test is only 1/Q of the test capacity; the volume is small, the weight is light, and the resonant power supply is 1/3-1/5 of the ordinary test device; the resonant power supply is resonant type. The filter circuit can improve the waveform distortion of the output voltage, obtain good sinusoidal waveform, effectively prevent the wrong breakdown of the sample by harmonic peak value; has a variety of working modes, using 220V or 380V single-phase power supply to facilitate on-site power supply; multi-mode, building block combination, can be operated in series and parallel, easy to use in the field.

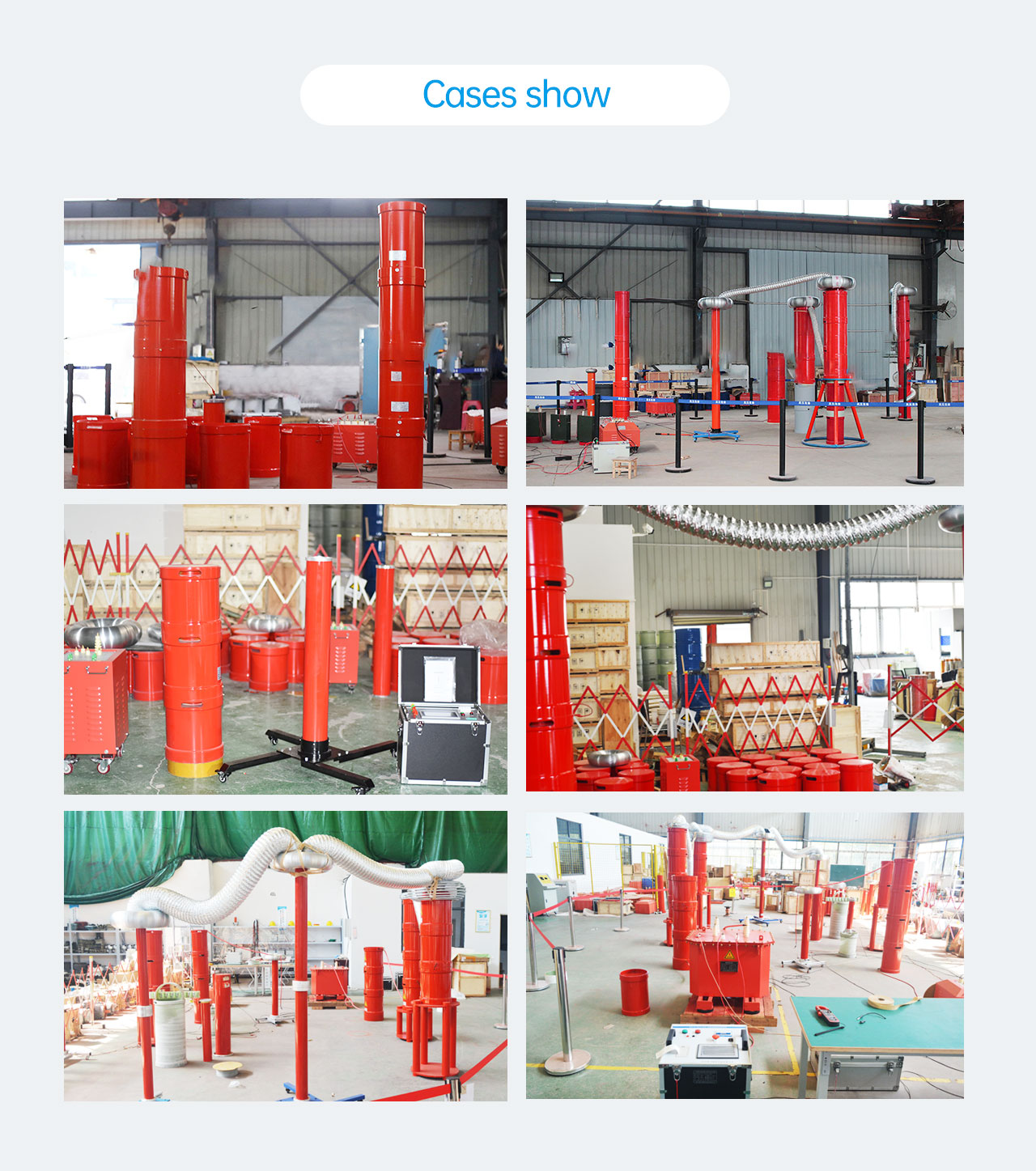

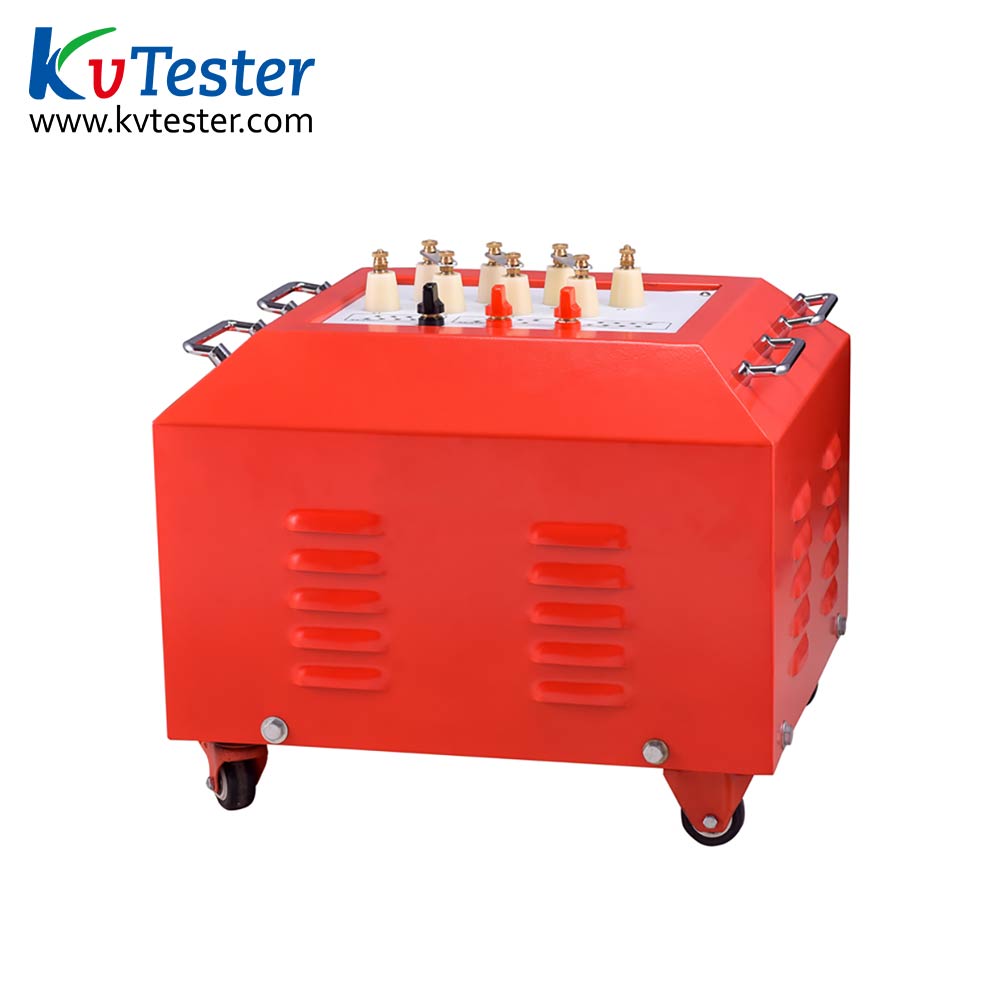

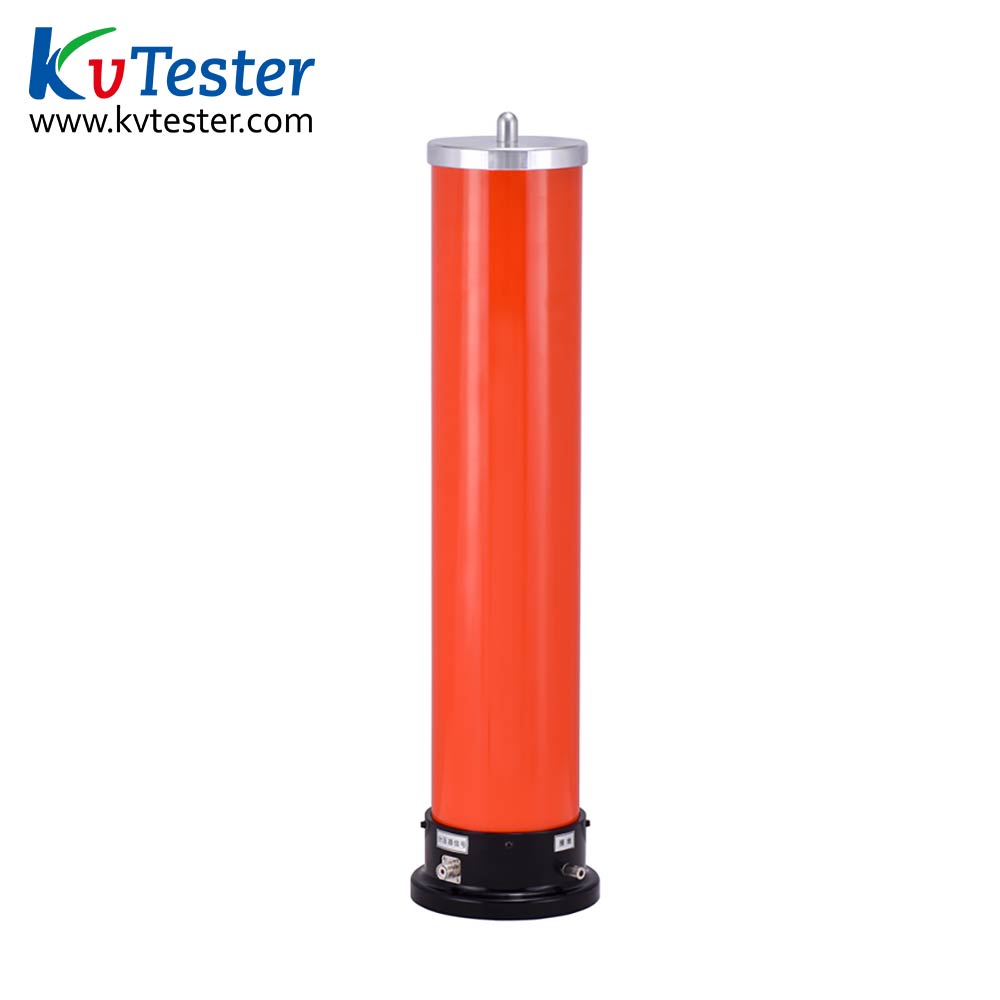

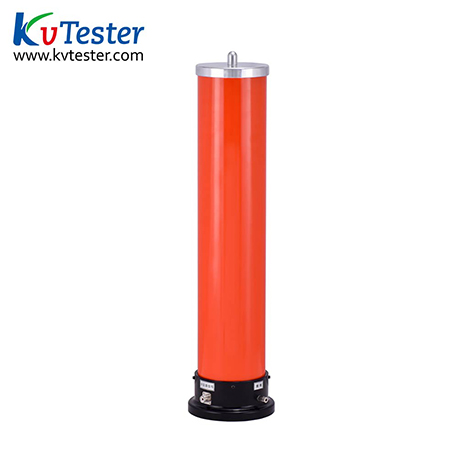

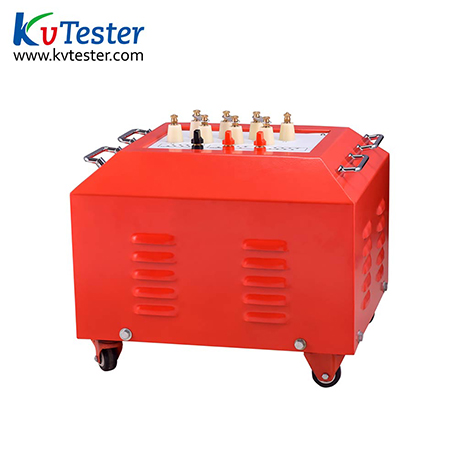

  • Product Picture
