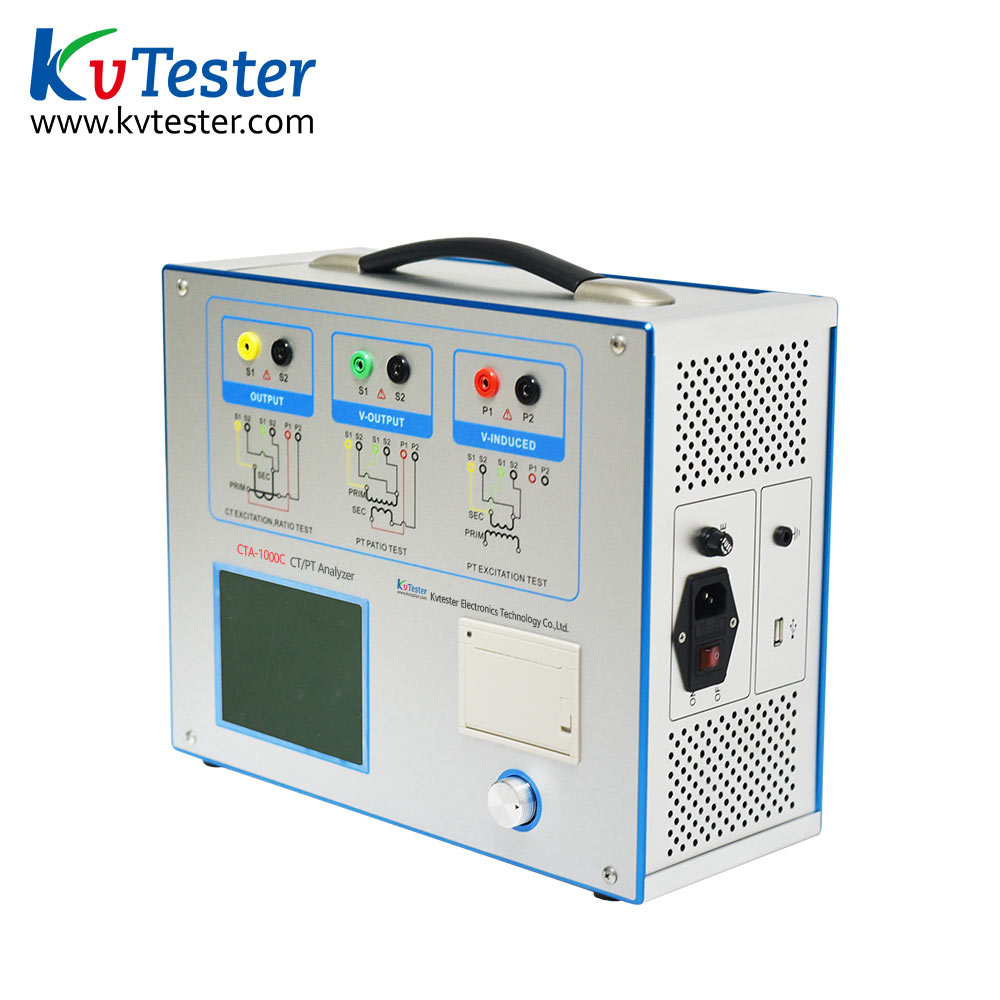

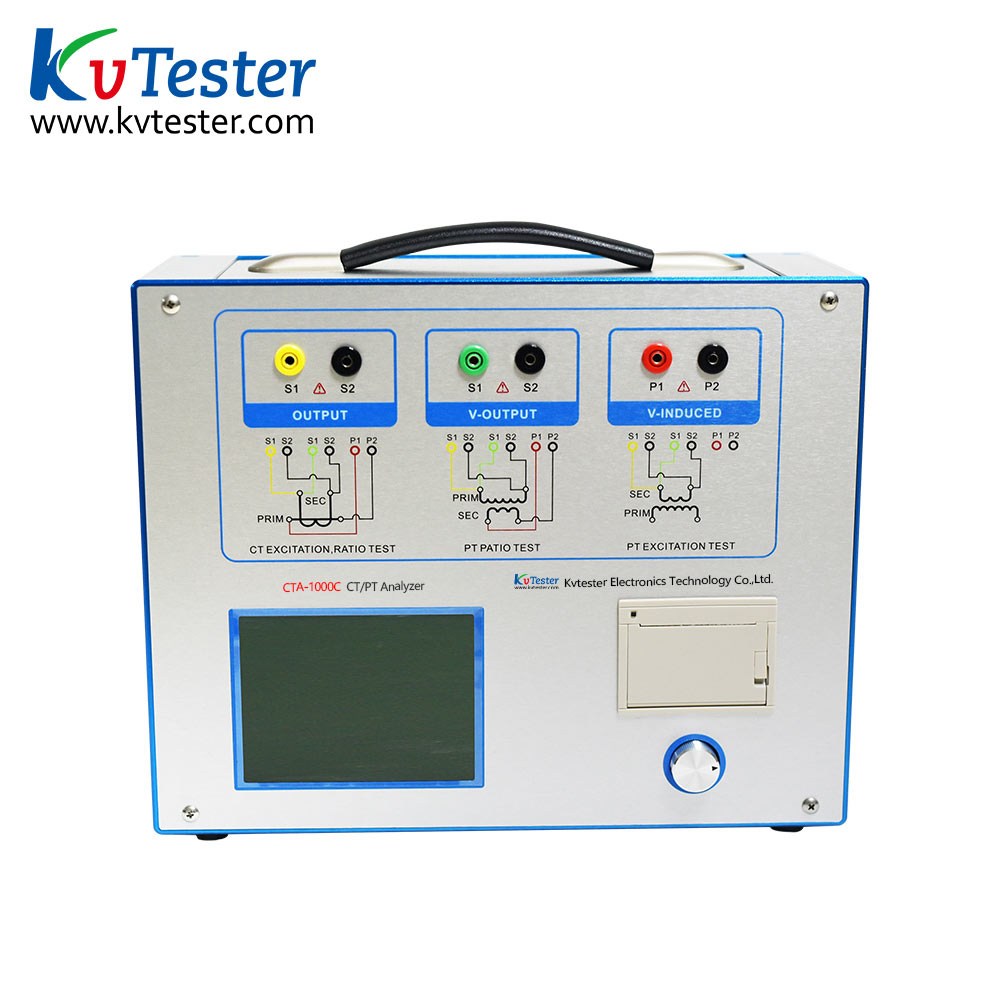

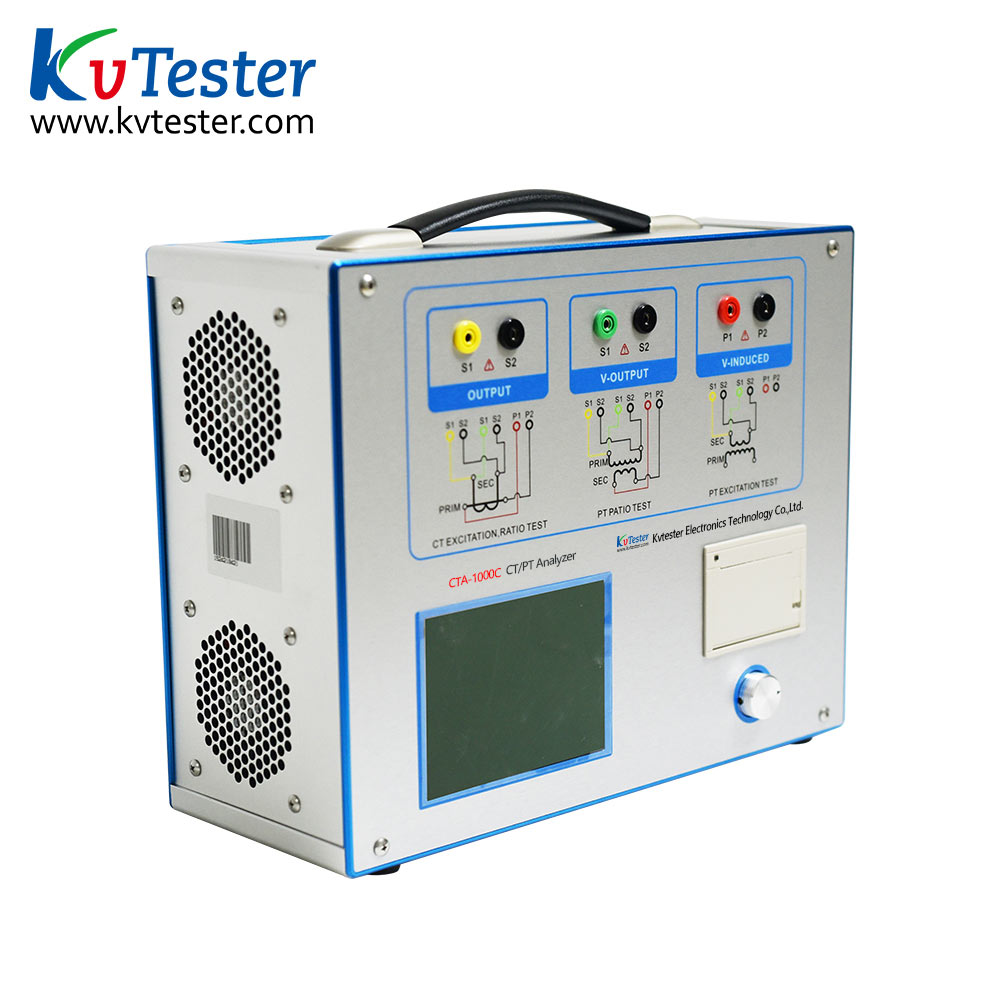

CT/PT Analyzer

type:CTA-1000C
Online Service

TAGS:

  • CT Tester
    • Product Introduction
            CTA-1000 Series CT Analyzer automatically determines all relevant current transformer values and compares the results with the selected standard, include excitation data, saturation inflection point, remanence coefficient, accuracy limit overcurrent factor, ratio and error data. The device evaluates the current transformer as per the IEC or IEEE standard within seconds with the push of a button.
            It facilitates fast and economical on-site testing and calibration of metering and protection current transformers. Manufacturers of current transformers, high voltage transformers and switchgear also use the CT Analyzer for tests during development and production.

    • Product Parameters
    Type CTA-1000C
    Usage CT,PT
    Reference standards GB1207-2006, GB1208-2006, GB16847-1997
    IEC60044-1, IEC60044-6, IEC61869-2-2012
    Output 0~180Vrms,12Arms,36A(peak value)
    Voltage measurement accuracy ±0.1%
    CT Ratio Range 1~40000
    accuracy ±0.05%
    PT Ratio Range 1~40000
    accuracy ±0.2%
    Phase Range ±2min
    accuracy 0.5min
    DC resistance Range 0~300Ω
    accuracy 0.2%±2mΩ
    Burden Range 0~1000VA
    accuracy 0.2%±0.02VA
    Power supply AC220V±10%/AC110V±10%,50/60Hz
    Environmental Conditions Operating temperature: -10℃~50℃
    Humidity:≤90%

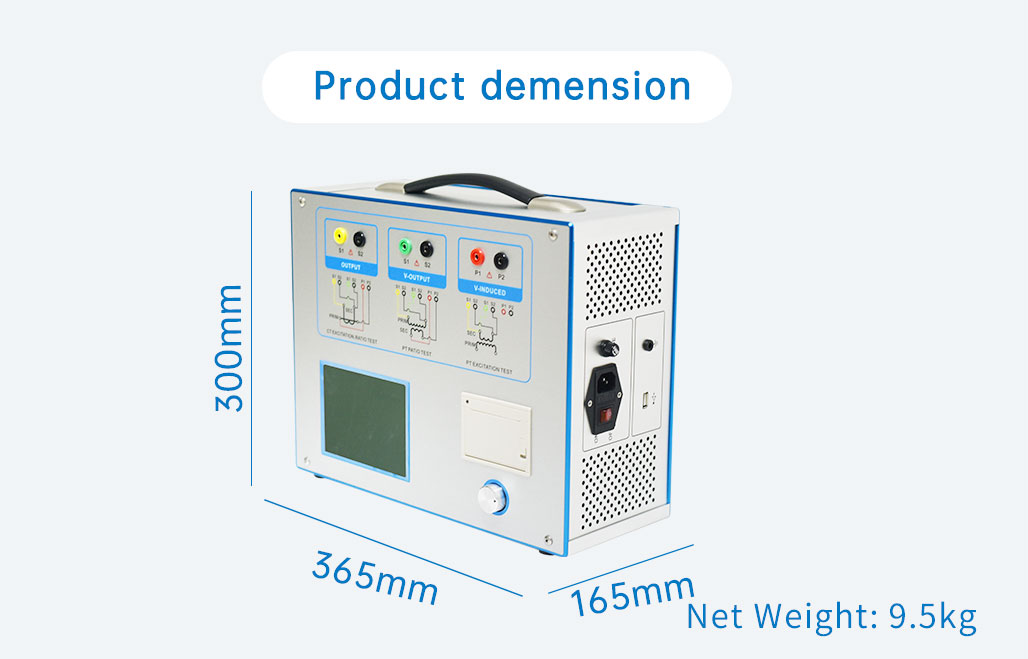

    Weight and Dimensions Dimensions:365mm×290mm×153mm
    Weight:<10kg


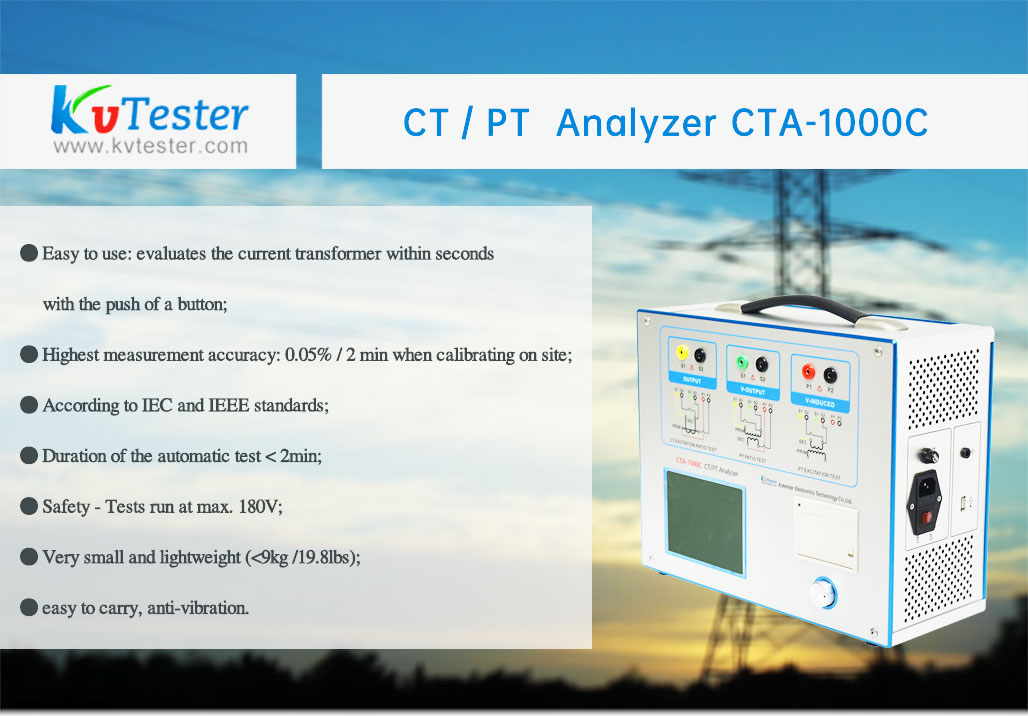

    • Product Features

       1. Wide range of measurements:


    Current Transformer (CT)Voltage Transformer (PT)
                    CT ratio and phase-angle accuracy                PT excitation and saturation
                    CT accuracy for different burdens                Burden impedance
                    CT winding resistance                PT polarity
                    CT inductance (saturated and unsaturated)                Winding resistance Saturated and non-saturated inductance
                    CT excitation characteristics
                    ALF and FS (direct and indirect)
    Burden impedance

                    CT residual magnetism


            2. Easy to use. The CT Analyzer allows all types of single and multi-ratio current transformers to be tested, and it evaluates the current transformer within seconds with the push of a button;
        3. Highest measurement accuracy: 0.05% / 2 min when calibrating on site;
        4. Automatic evaluation according to IEC and IEEE standards;
        5. CT analyzer debugging time is short (automatic test duration <2 minutes);
        6. Excellent workplace safety - Tests run at max. 180V;
        7. Very small and lightweight (<9kg/19.8lbs), easy to transport for on-site testing;

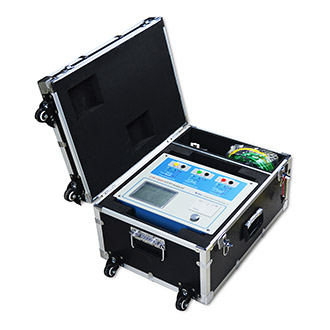

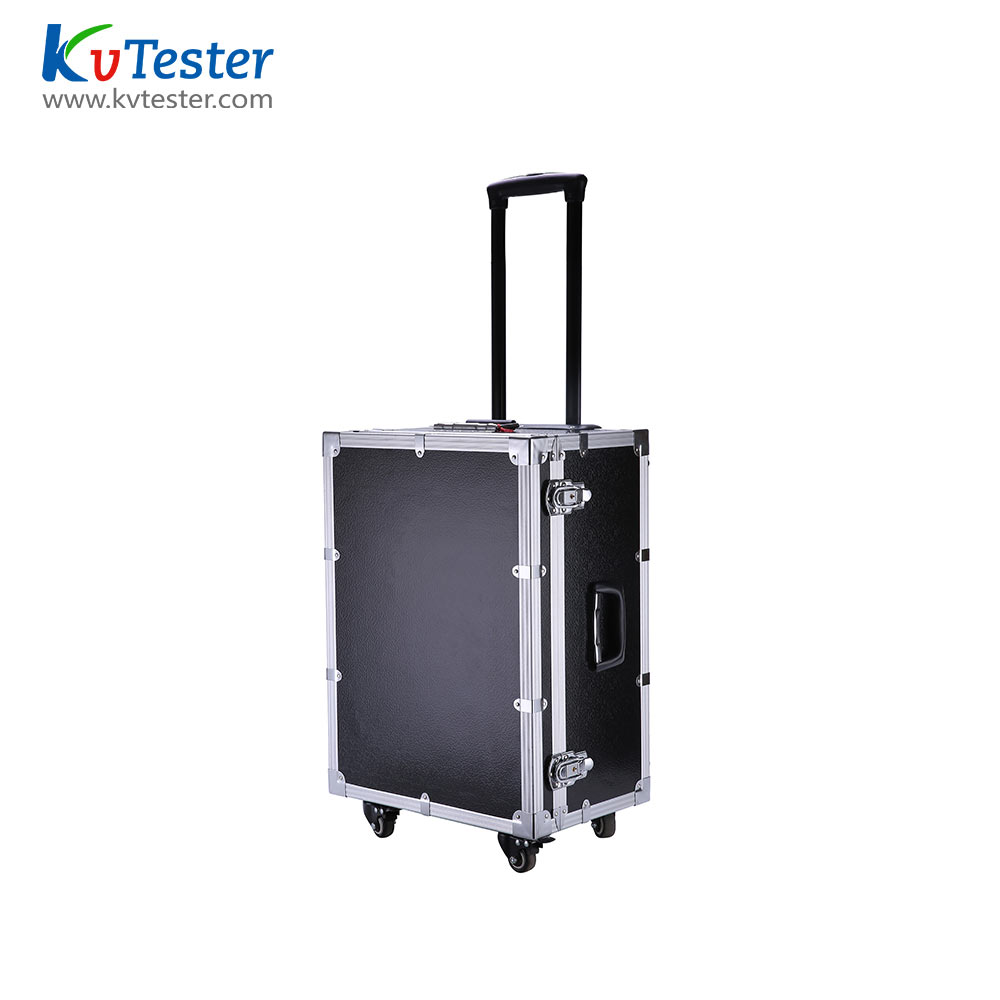

        8. The CT analyzer has a professional pull box design that is easy to carry and resistant to vibration.


    Applications

            The following values can be determined using the CT/PT Analyzer:
        1. CT:
        (1) Accuracy of the ratio and phase angle, taking into consideration the nominal burden and connected burden
        (2) CT excitation and saturation
        (3) Burden impedance
        (4) Winding resistance Saturated and non-saturated inductance
        (5) CT polarity
        2. PT:
        (1) PT excitation and saturation
        (2) Burden impedance
        (3) Winding resistance Saturated and non-saturated inductance
        (4) PT polarity
    • Product Video

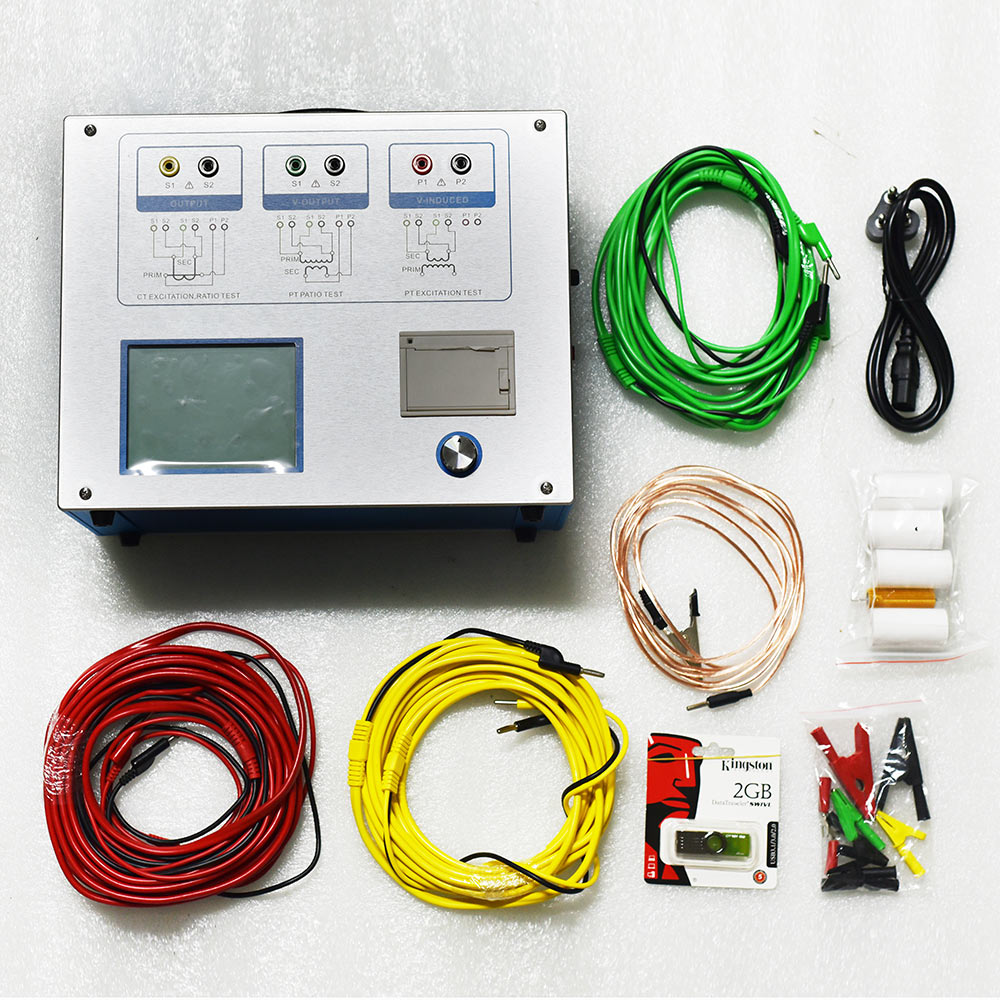

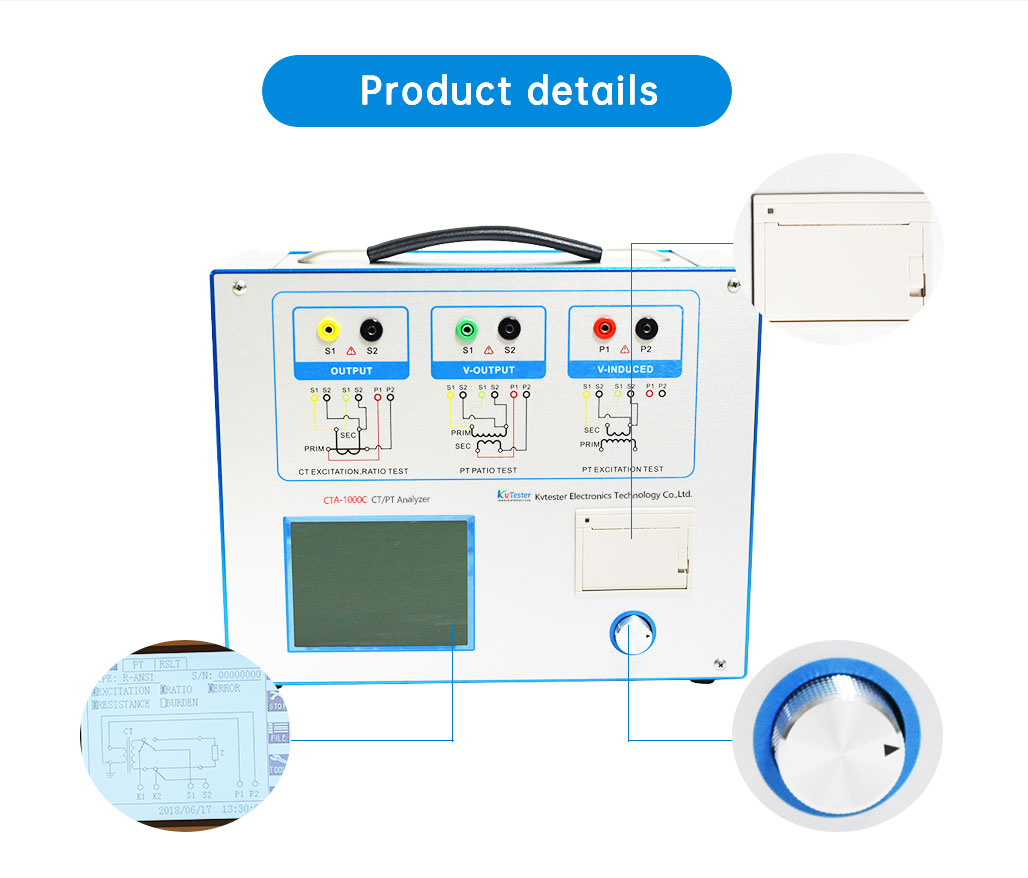

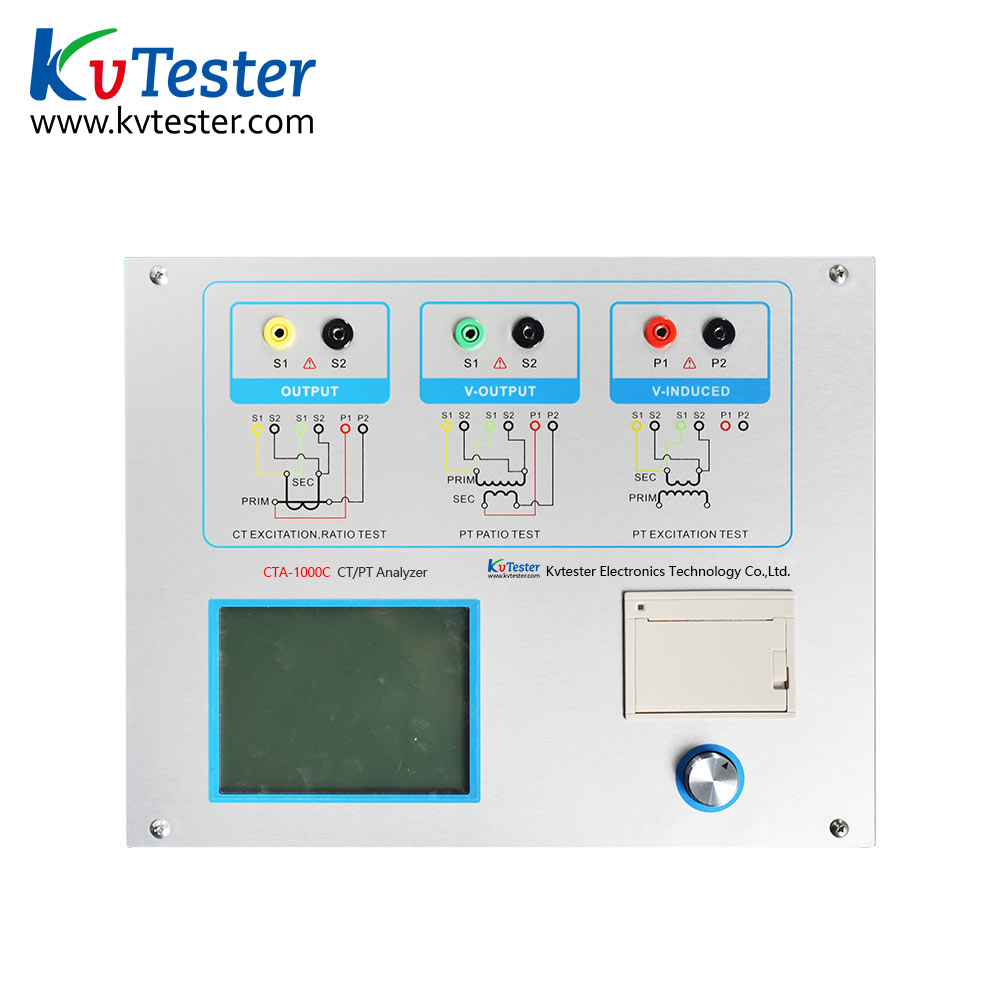

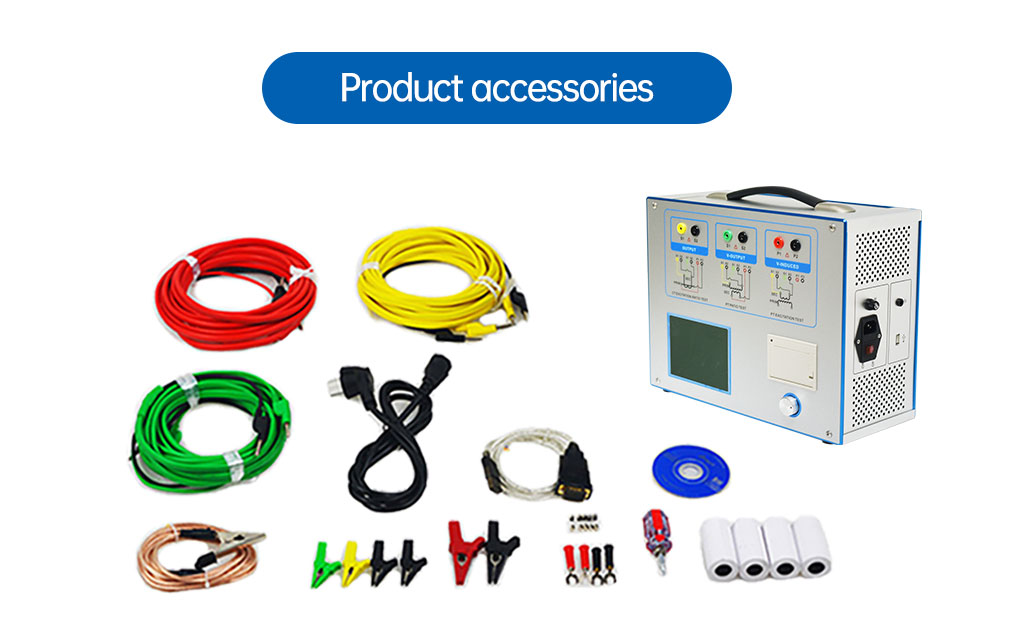

    • Product Picture
