Transformer winding deformation tester

type:ZC-206A
Online Service
  • Product Introduction

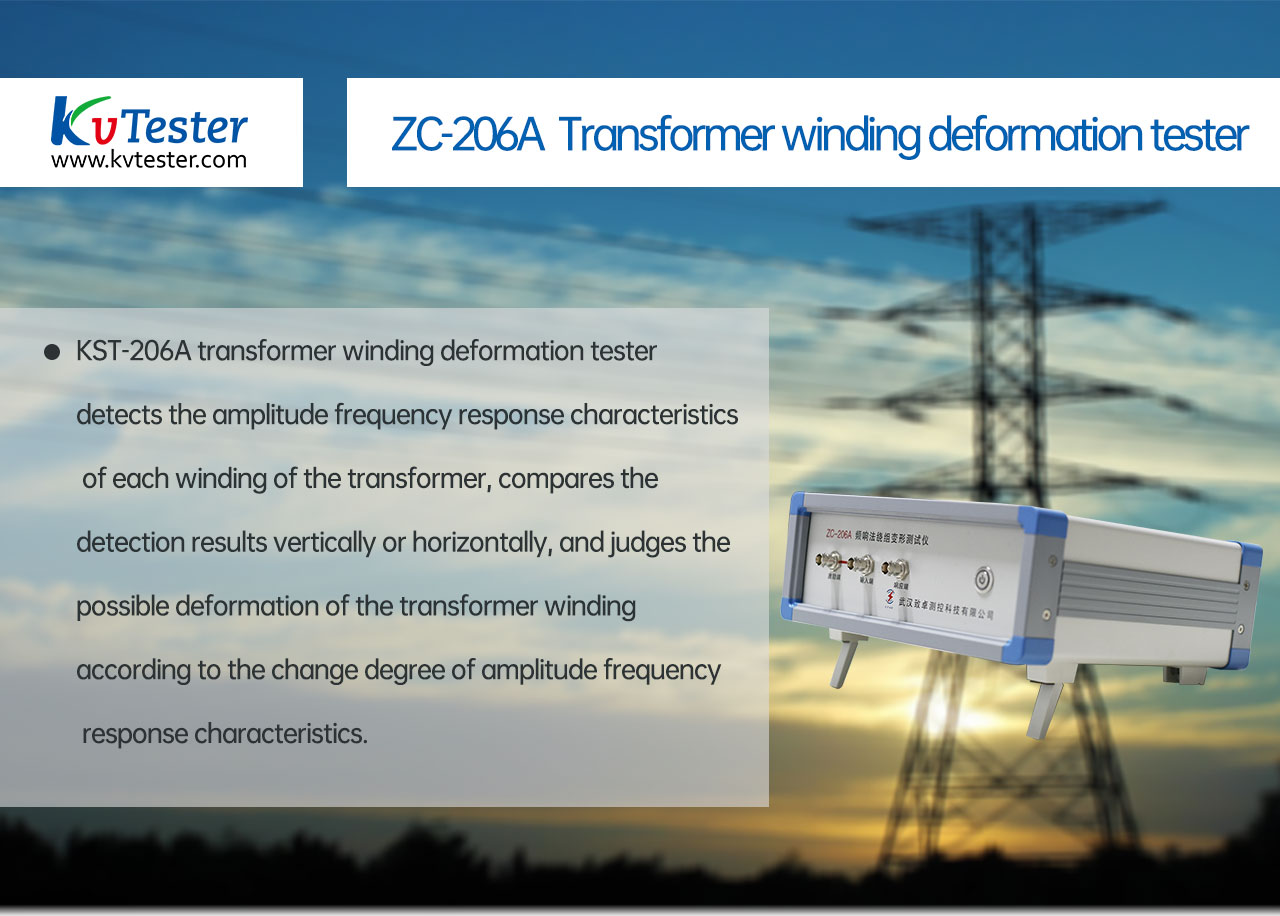

ZC-206A transformer winding deformation tester detects the amplitude frequency response characteristics of each winding of the transformer, compares the detection results vertically or horizontally, and judges the possible deformation of the transformer winding according to the change degree of amplitude frequency response characteristics.

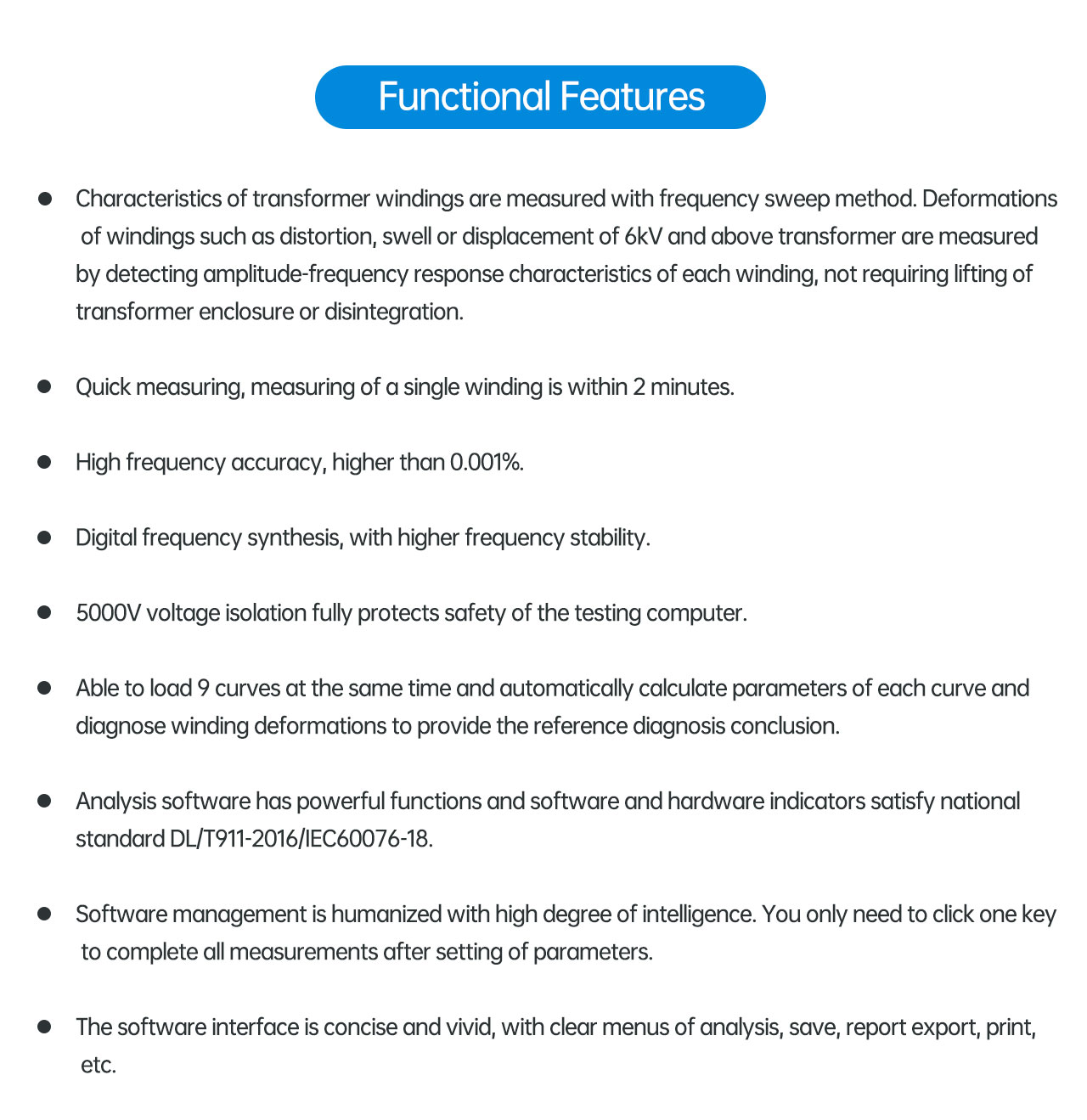

  • Product Features

1、Characteristics of transformer windings are measured with frequency sweep method. Deformations of windings such as distortion, swell or displacement of 6kV and above transformer are measured by detecting amplitude-frequency response characteristics of each winding, not requiring lifting of transformer enclosure or disintegration.


2、Quick measuring, measuring of a single winding is within 2 minutes.


3、High frequency accuracy, higher than 0.001%.


4、Digital frequency synthesis, with higher frequency stability.


5、5000V voltage isolation fully protects safety of the testing computer.


6、Able to load 9 curves at the same time and automatically calculate parameters of each curve and diagnose winding deformations to provide the reference diagnosis conclusion.


7、Analysis software has powerful functions and software and hardware indicators satisfy national standard DL/T911-2016/IEC60076-18.


8、Software management is humanized with high degree of intelligence. You only need to click one key to complete all measurements after setting of parameters.



9、The software interface is concise and vivid, with clear menus of analysis, save, report export, print, etc.


  • Product Video

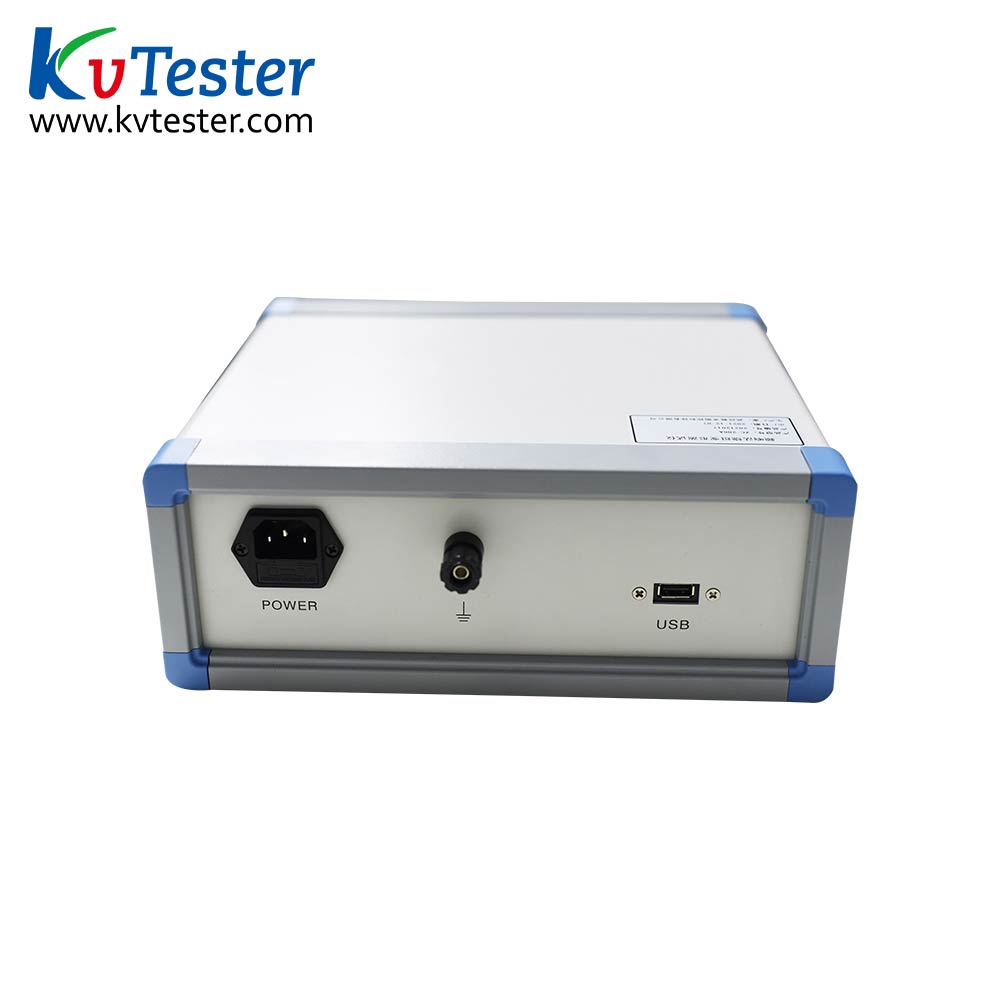

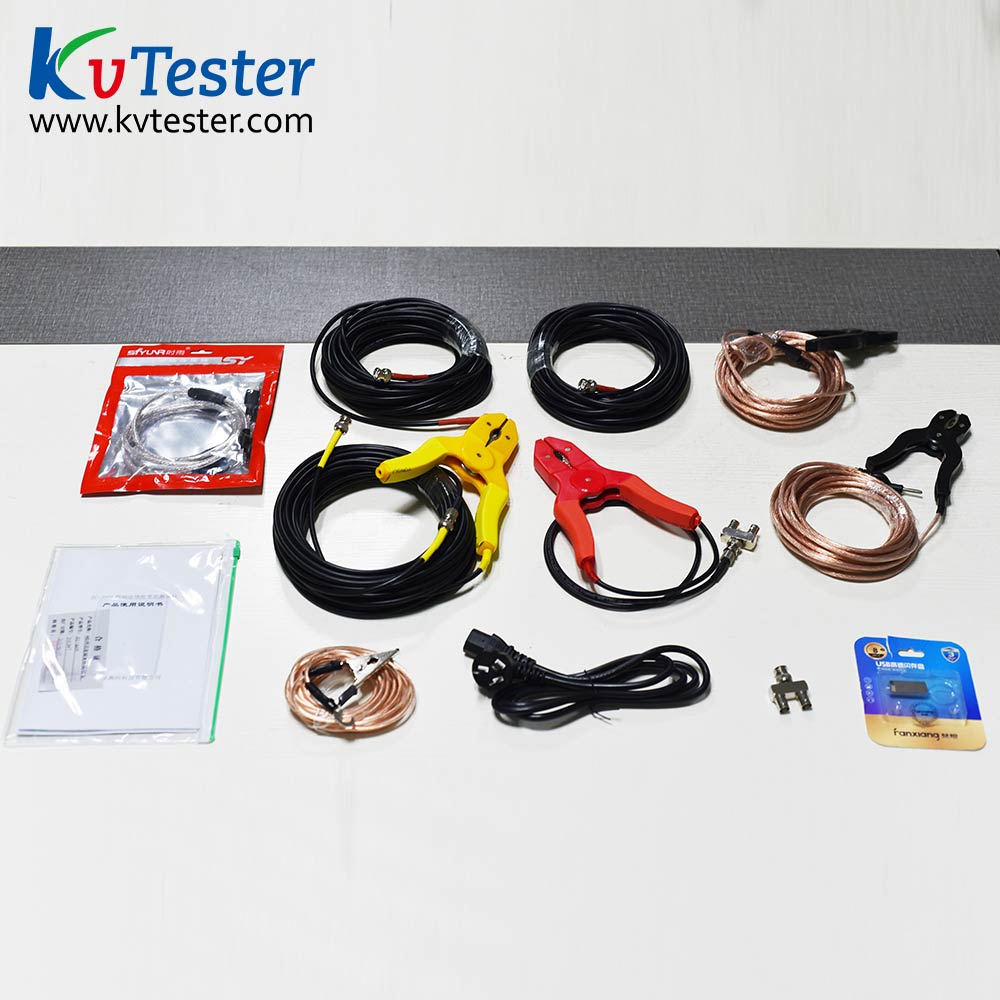

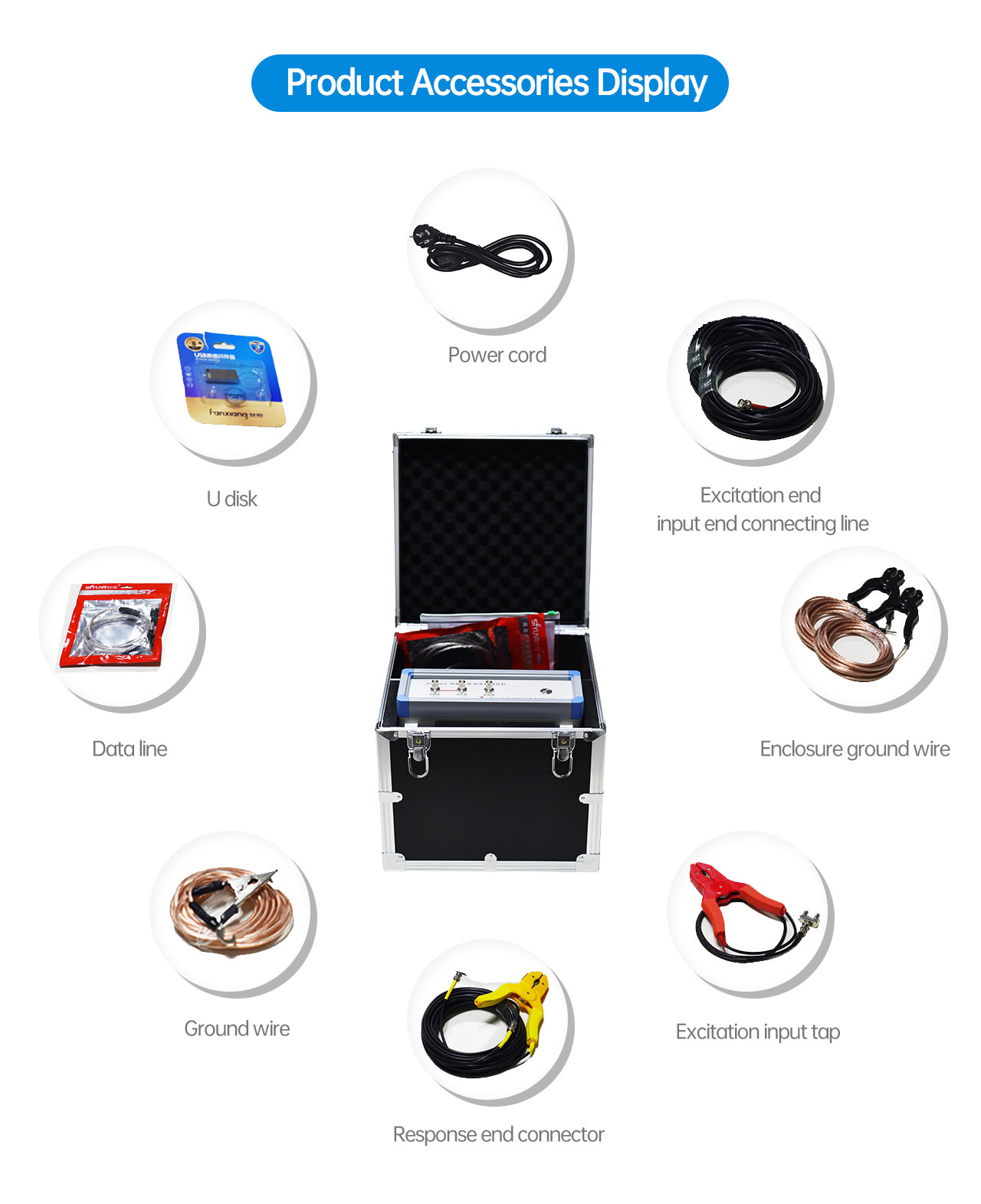

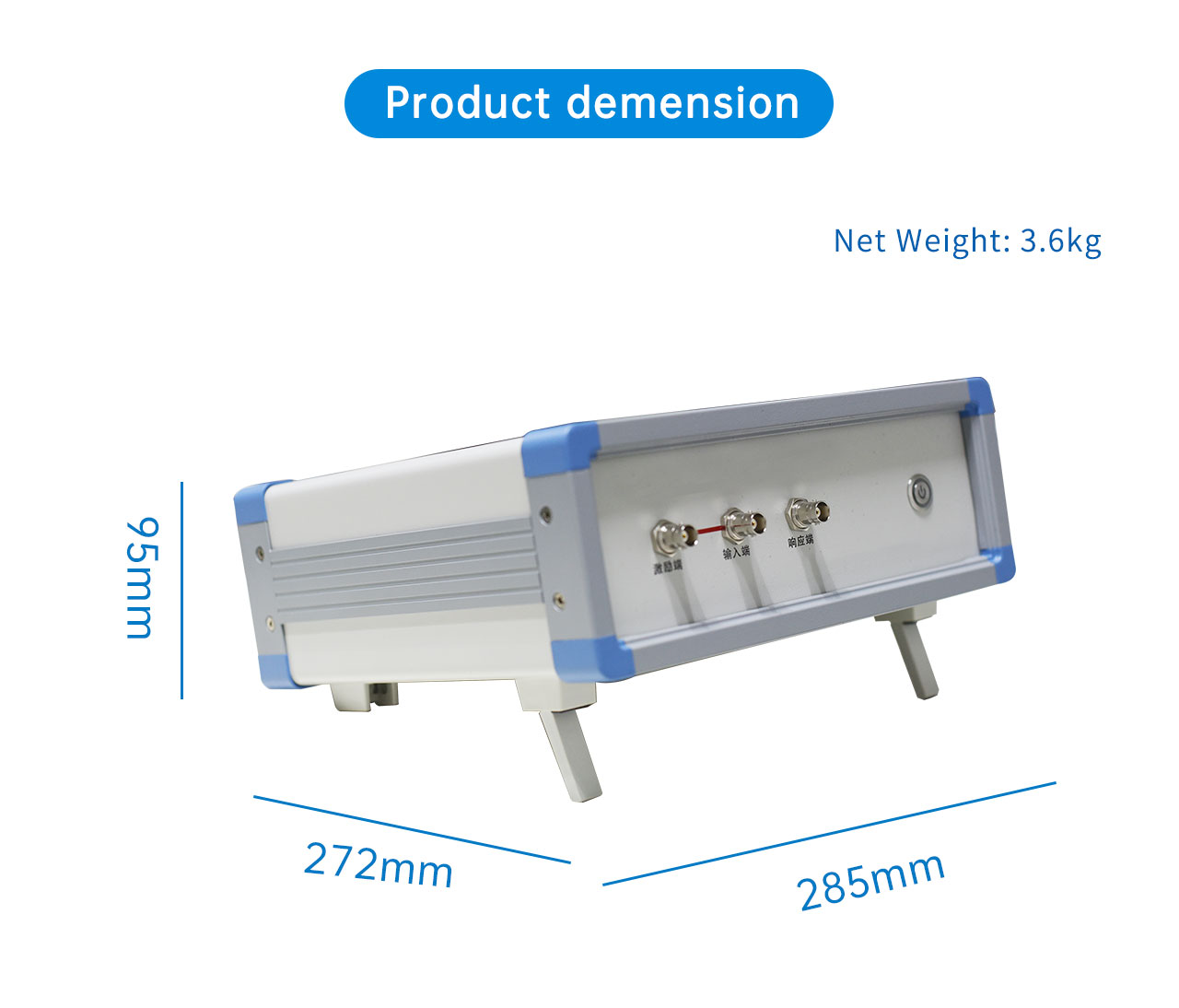

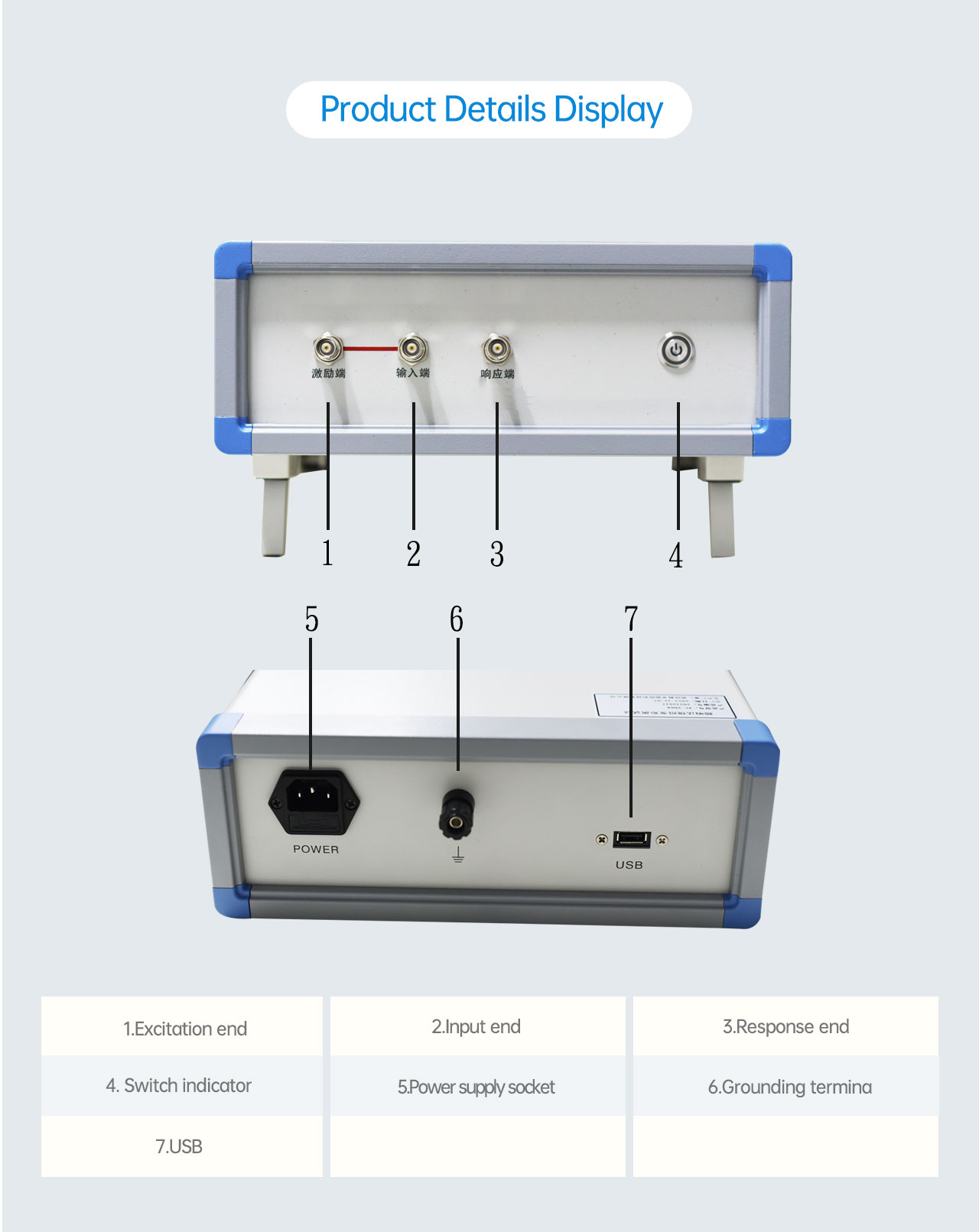

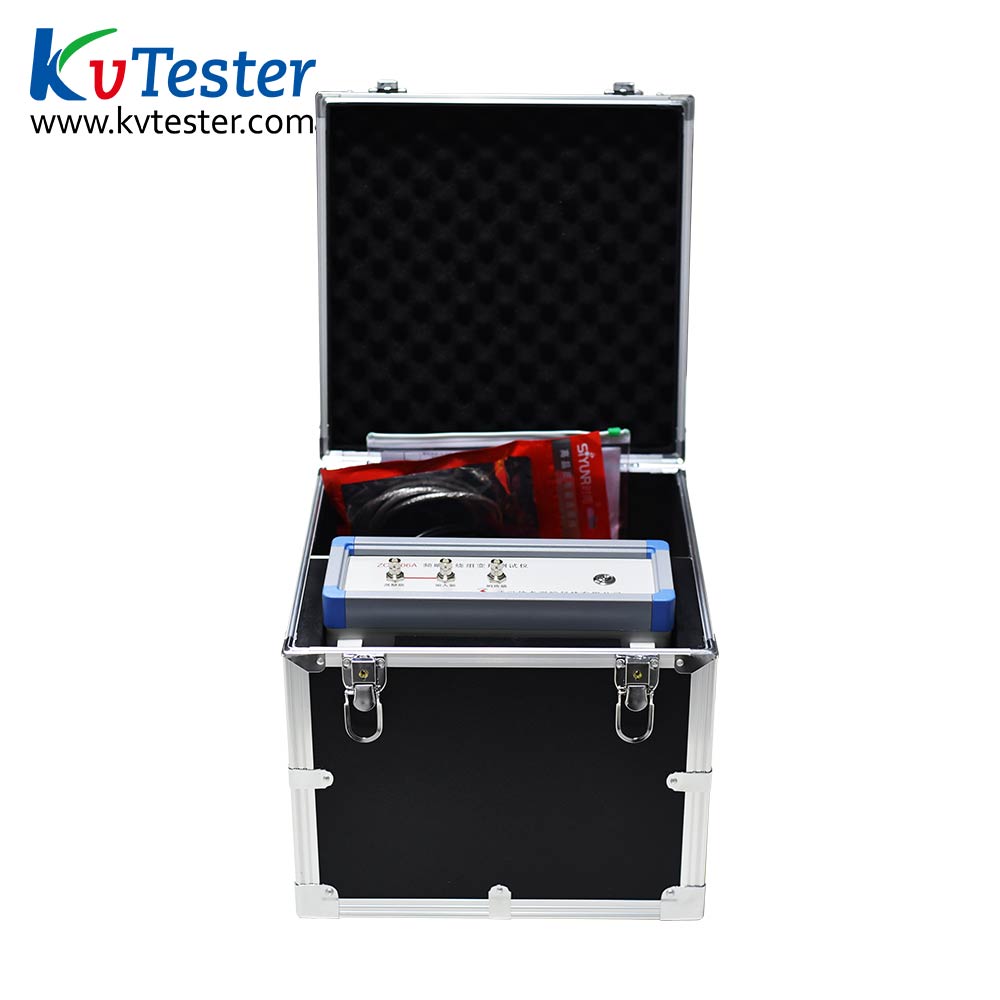

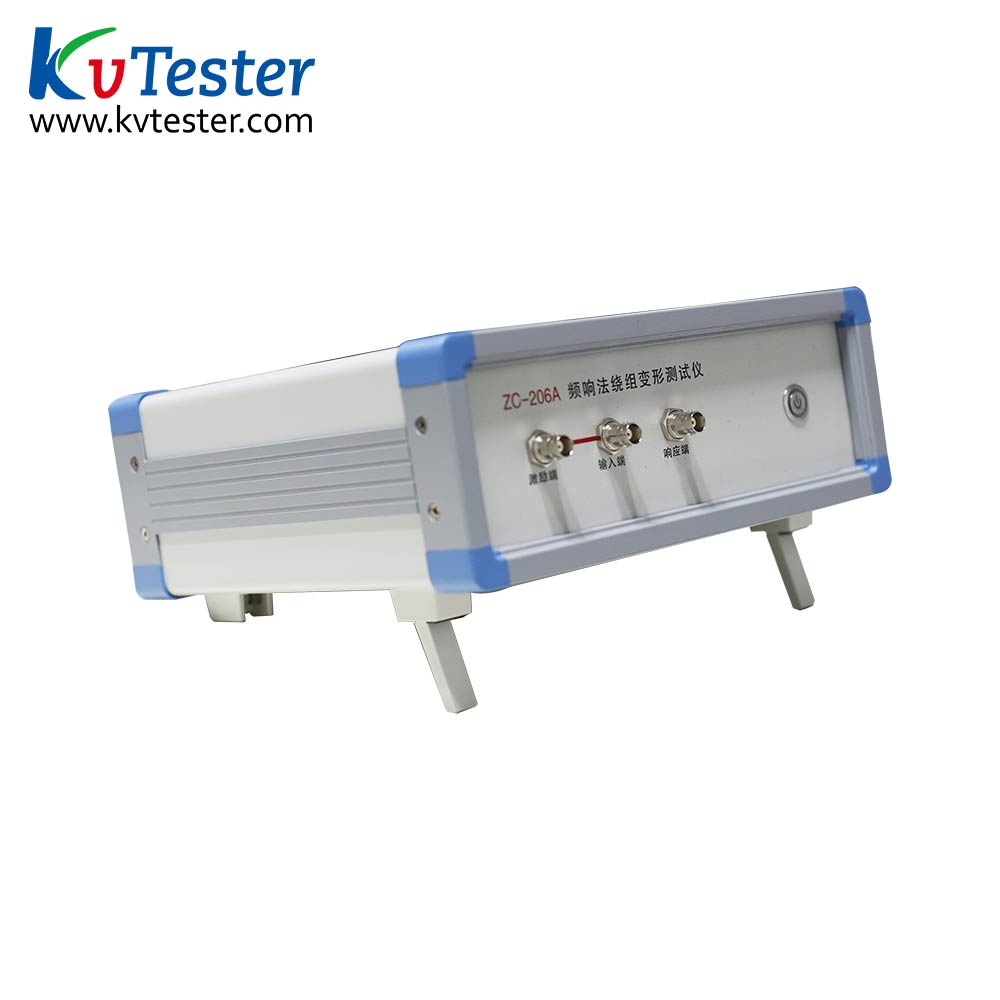

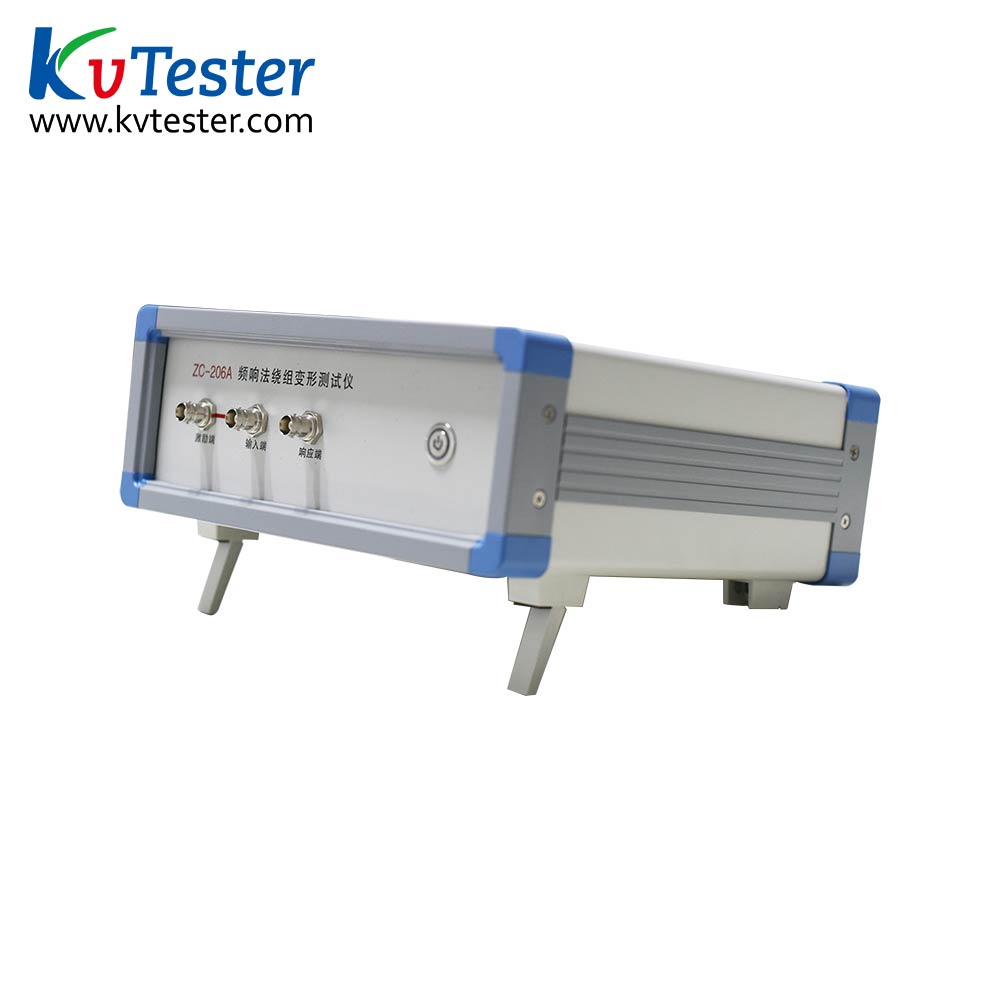

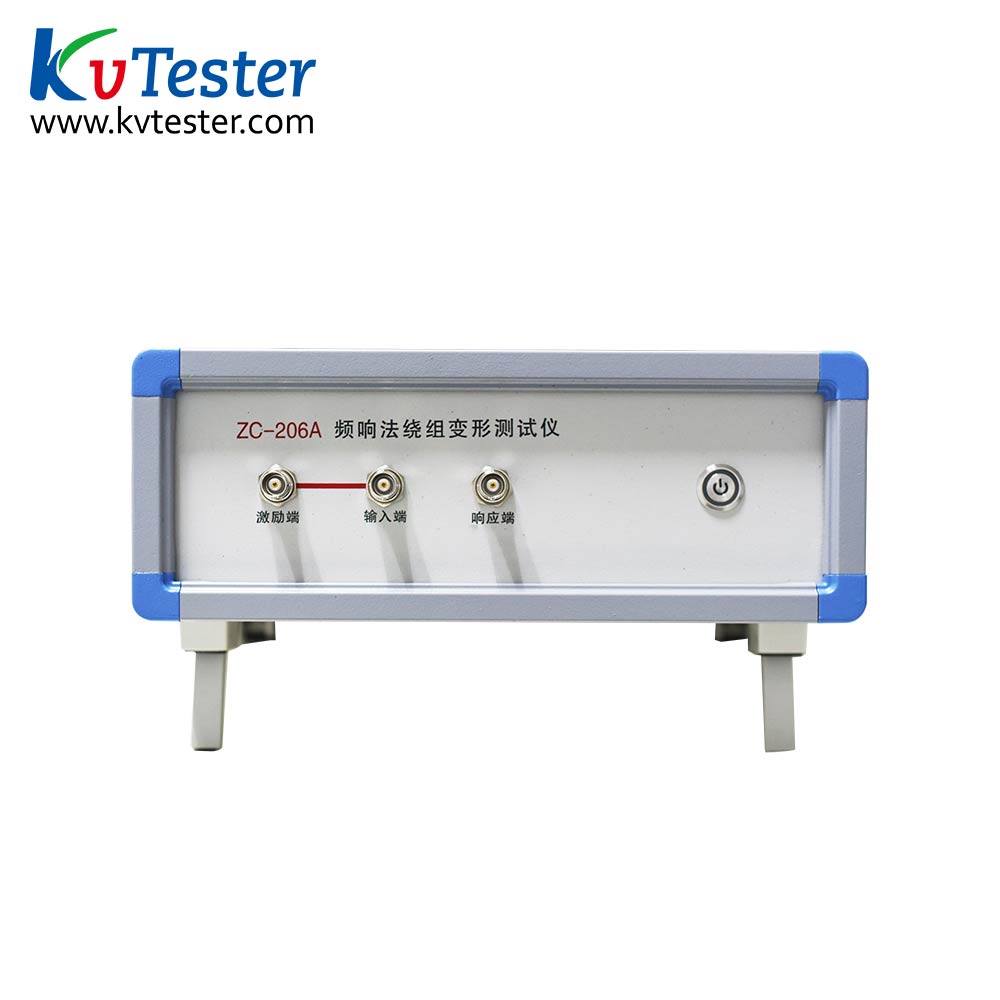

  • Product Picture
