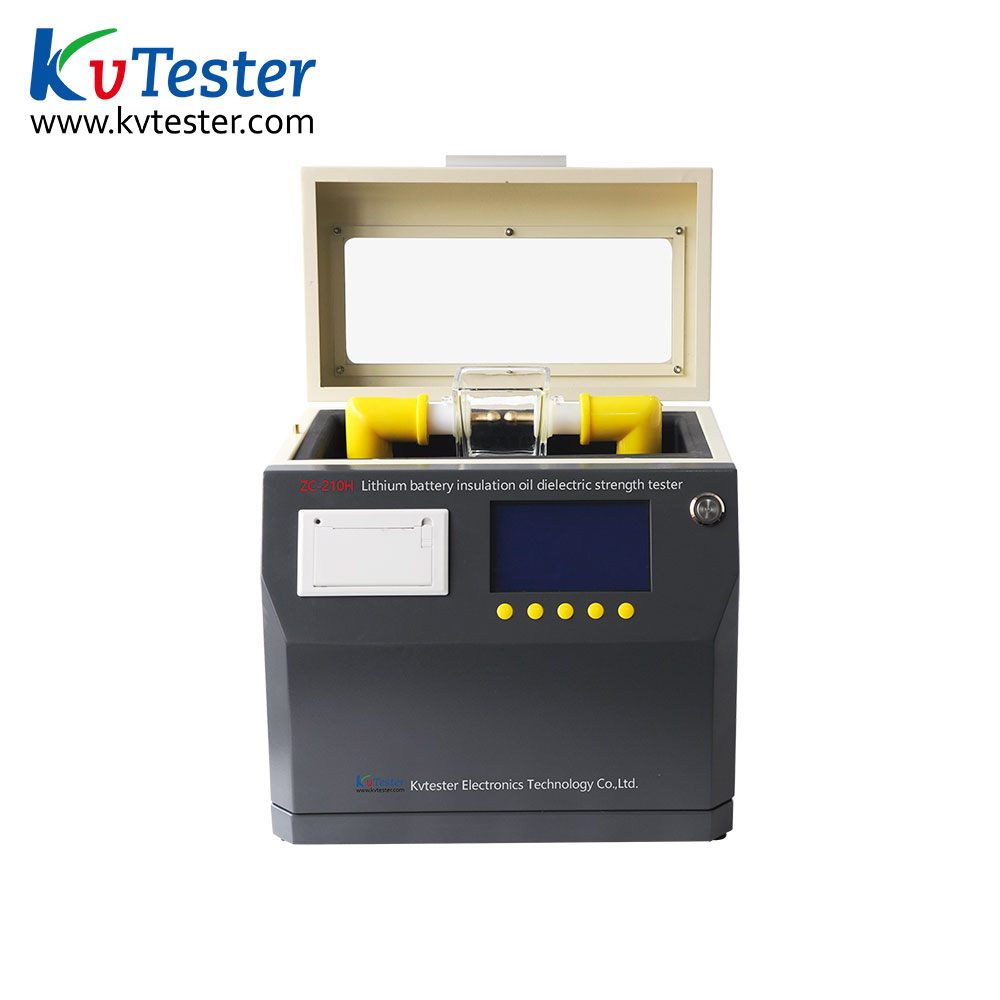

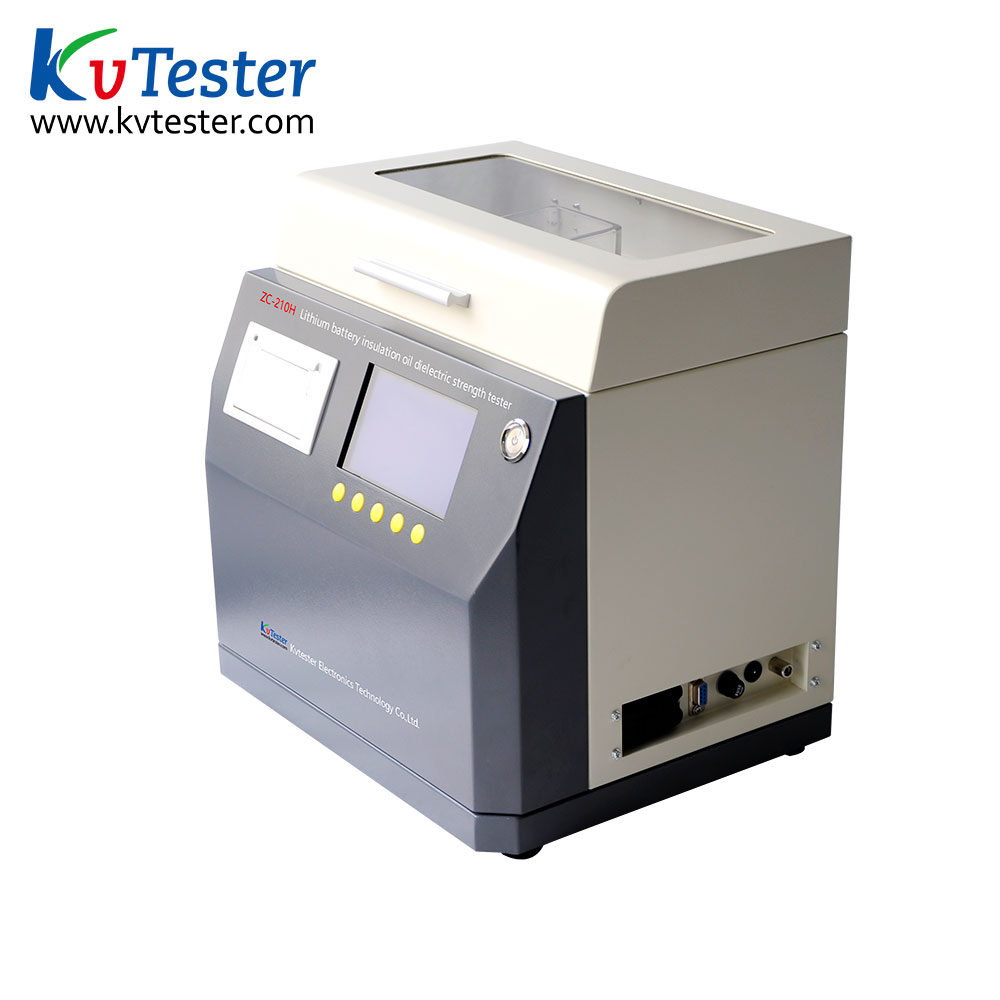

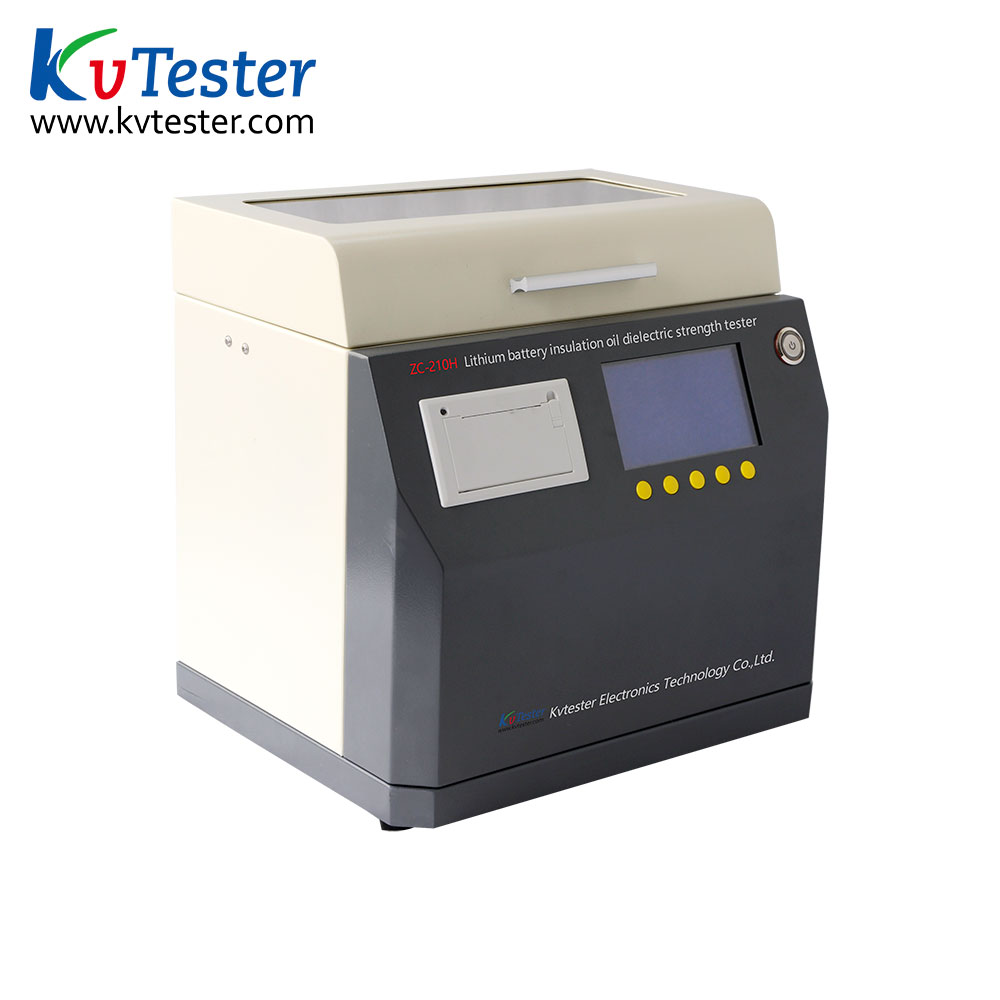

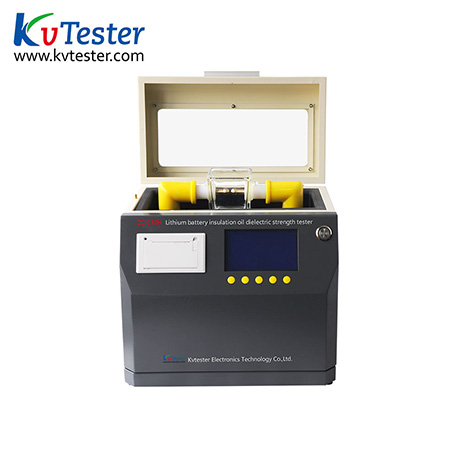

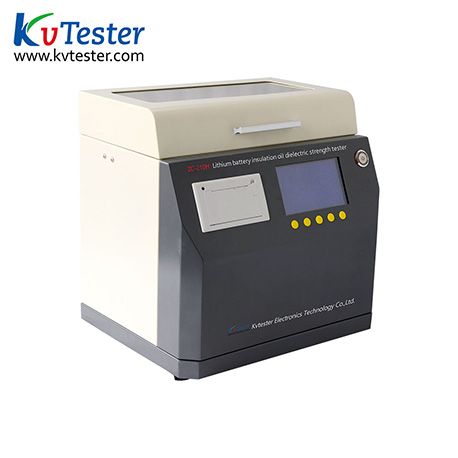

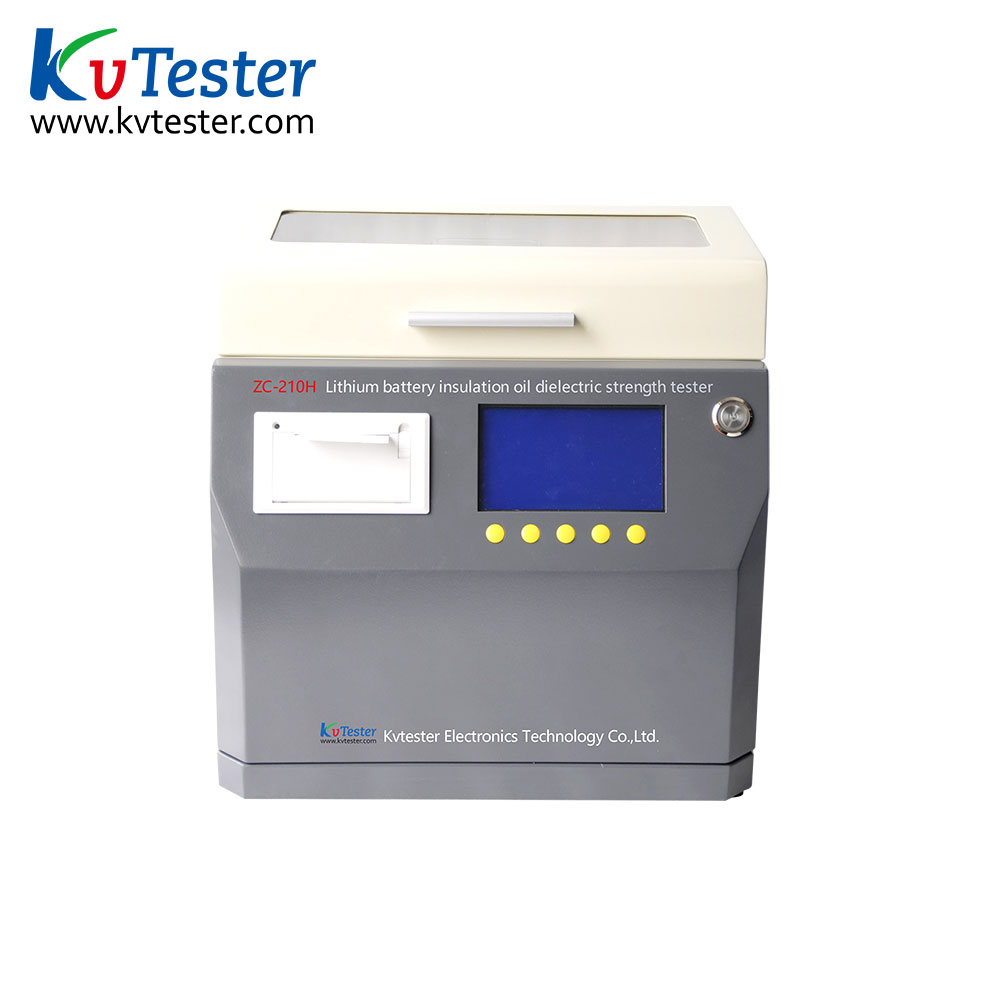

Lithium battery insulation oil dielectric strength tester

type:ZC-210H
Online Service
  • Product Introduction

The ZC-210H insulation oil dielectric strength tester is a high-precision and fully digital industrial instrument carefully developed by all our company's scientific research and technical personnel, based on relevant standards and regulations for insulation oil testing, leveraging their own advantages, after multiple on-site tests and long-term unremitting efforts. This machine adopts a breakthrough design with a built-in lithium battery, which can be used without a power source on site, greatly filling the domestic technical gap and facilitating on-site operation by users. The equipment is purchased with a voltage regulator design, which is lighter in weight, smaller in size, and adjustable in frequency compared to traditional dielectric strength testers.


  • Product Parameters
Booster capacity1.5 kVA
Boost speed0.5kV/s-5.0kV/s (every 0.5 increments) Ten selectable      errors of 0.2kV/s
Output voltage0-70 kV (optional)
Voltage accuracy(2% reading+2 words)
Power distortion rate< 1%
Electrode gapstandard 2.5 mm
Number of tests6 times (1-10 times optional)
Quiet time900S (optional from 0 to 5900 S)
Interval rest time300S (optional from 0-5900S)
Mixing time15S (0-99S optional)
Display methodLarge screen LCD Chinese character display

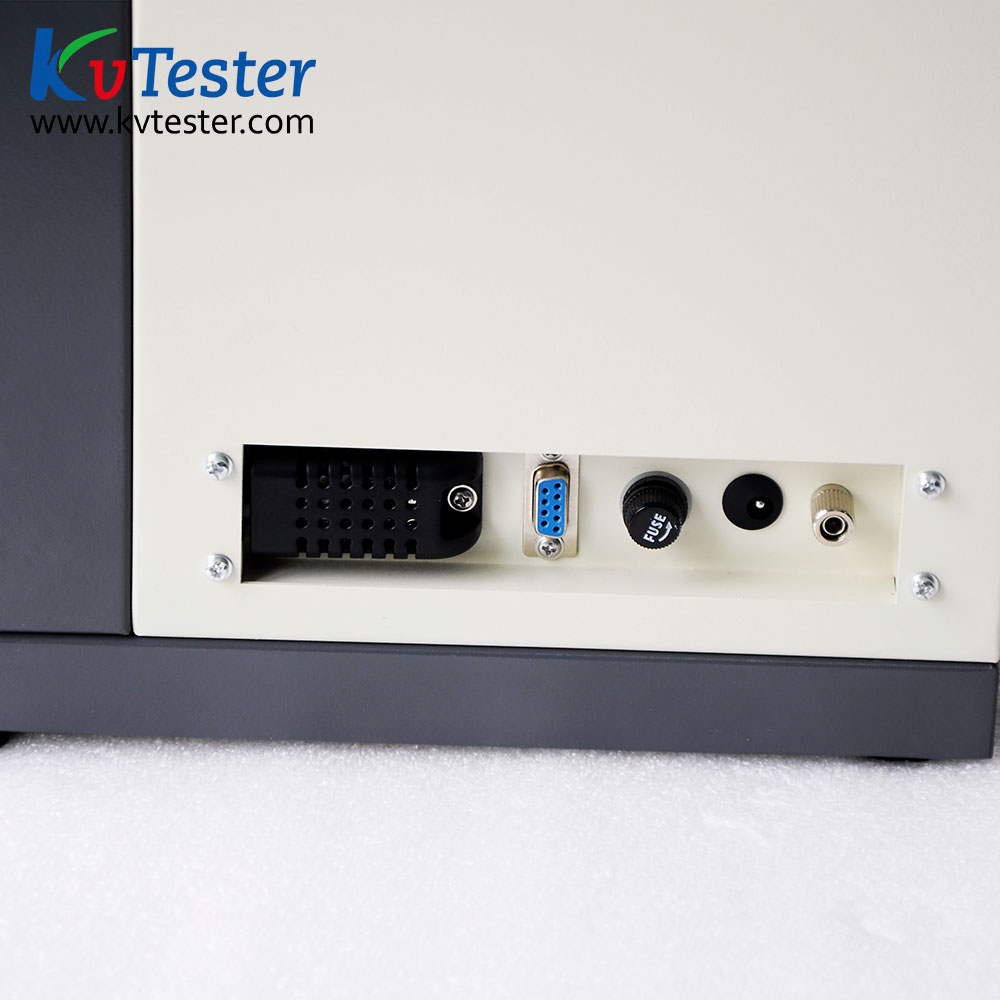

InterfaceStandard 232 communication interface
Overall dimensions350x280x350mm
Instrument weight20 kg


  • Product Features

1. Breakthrough design with built-in large capacity lithium battery, allowing for on-site experiments without power supply. Working without power supply can last for 48 hours.

2. Small size, light weight, weighing 23KG, portable design makes it more convenient for workers to use on site.

3. The instrument program has multiple standard options such as national standards, IEC, and ASTM customization. Capable of adapting to various user options for protection and other functions, and has strong anti-interference ability and good electromagnetic compatibility.

4. The frequency can be set according to customer needs, with 50/60Hz conversion to meet different customer needs
