Circuit Breaker (Switch) Tester

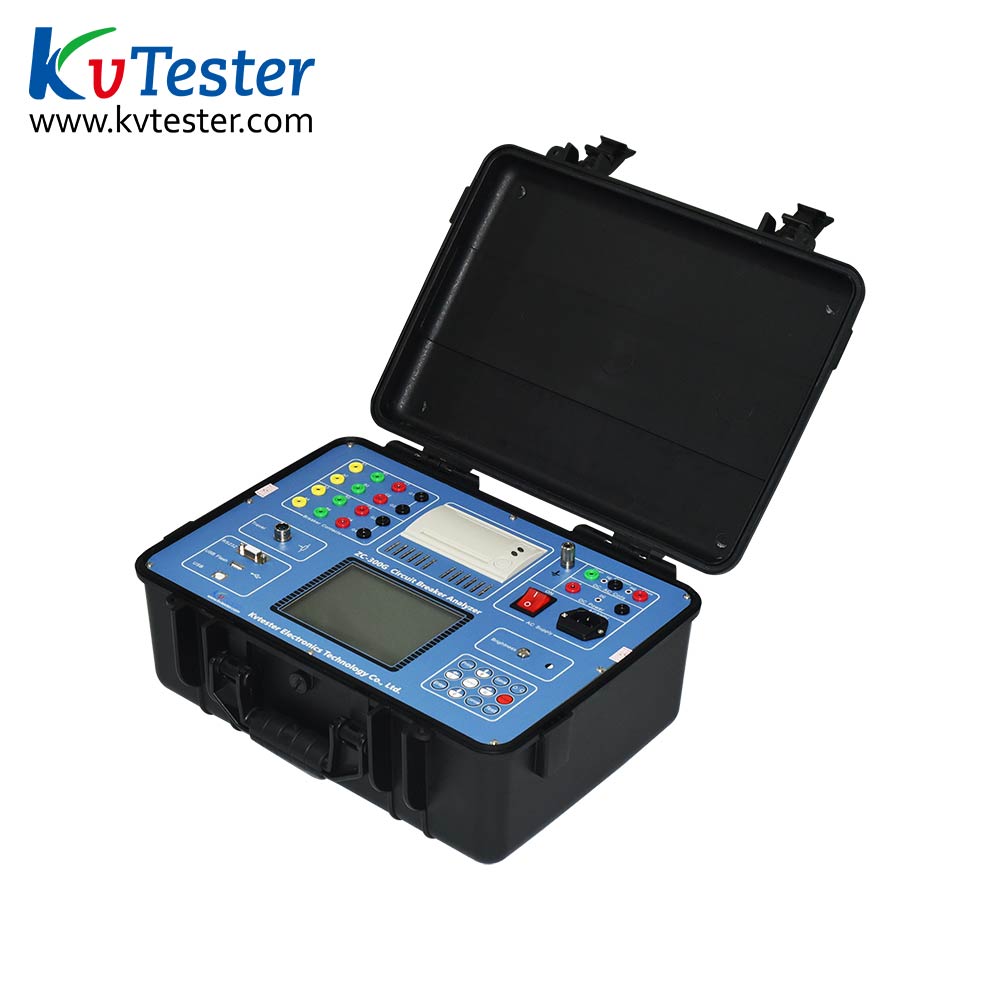

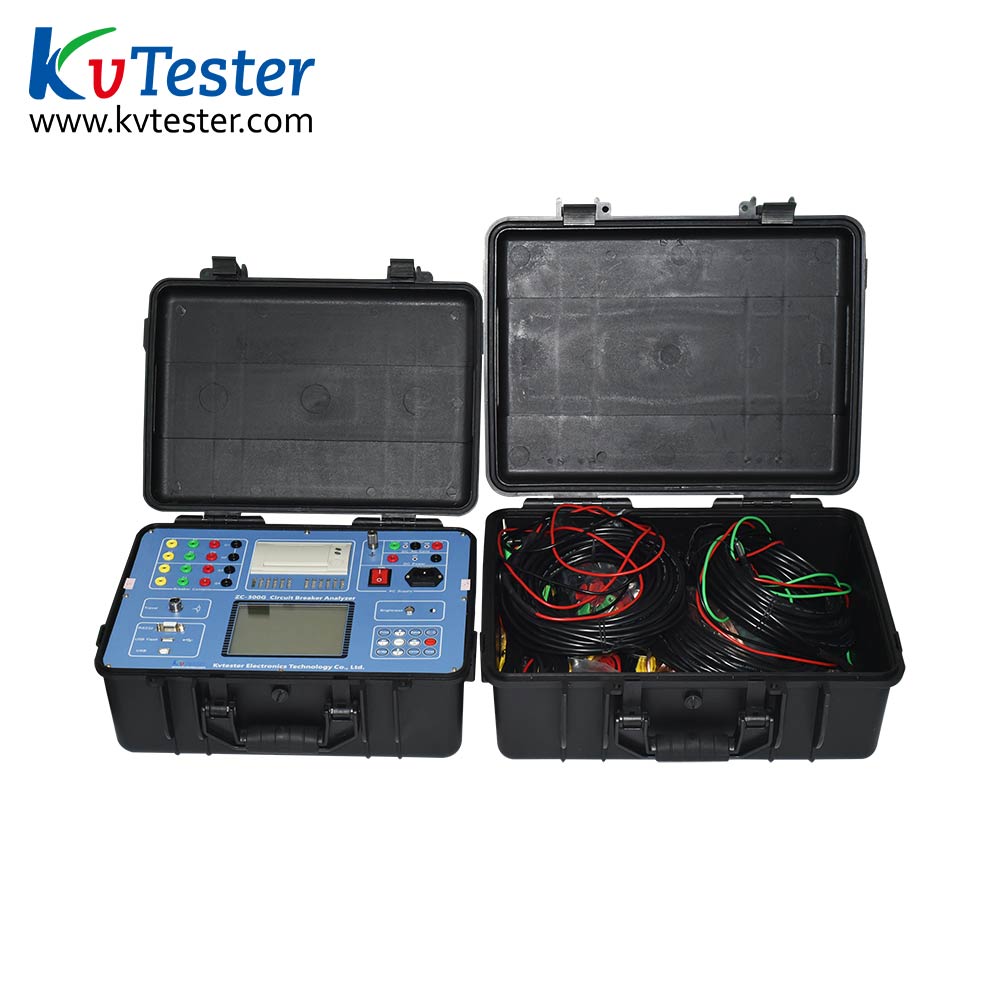

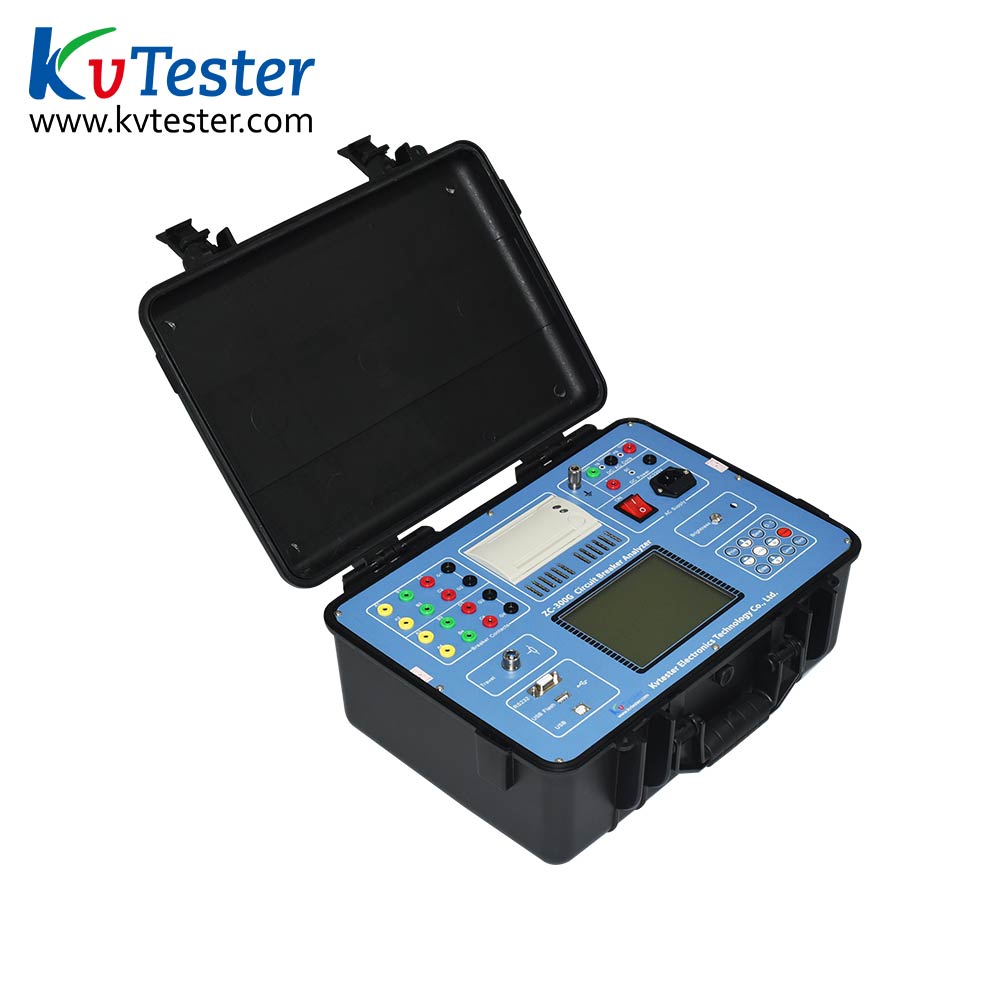

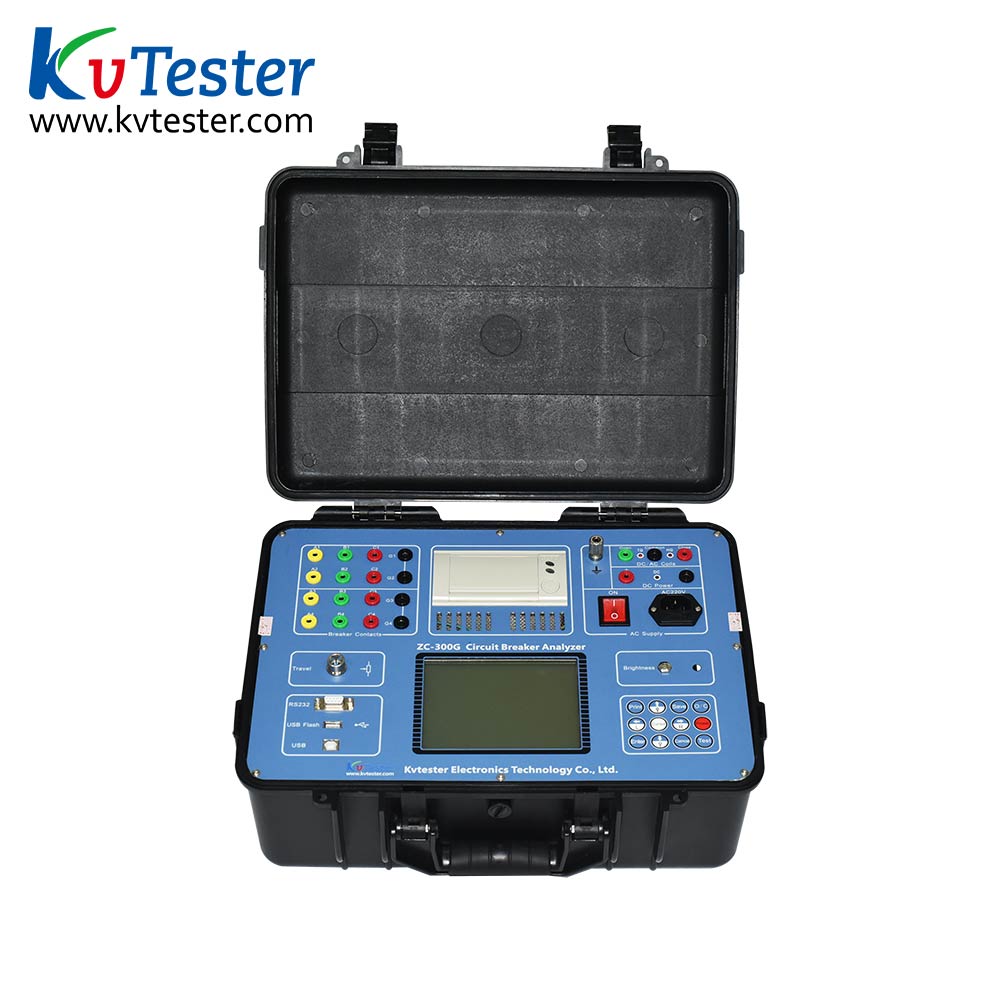

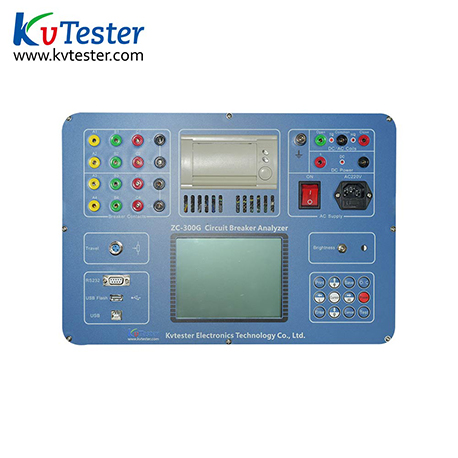

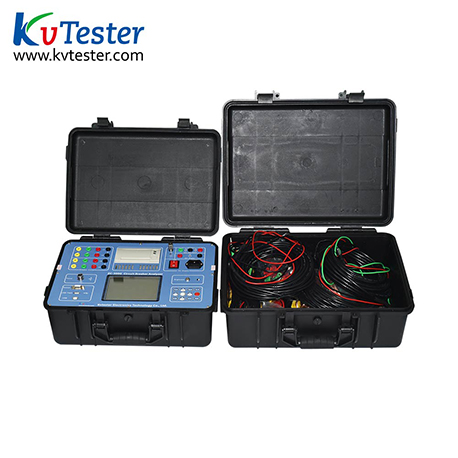

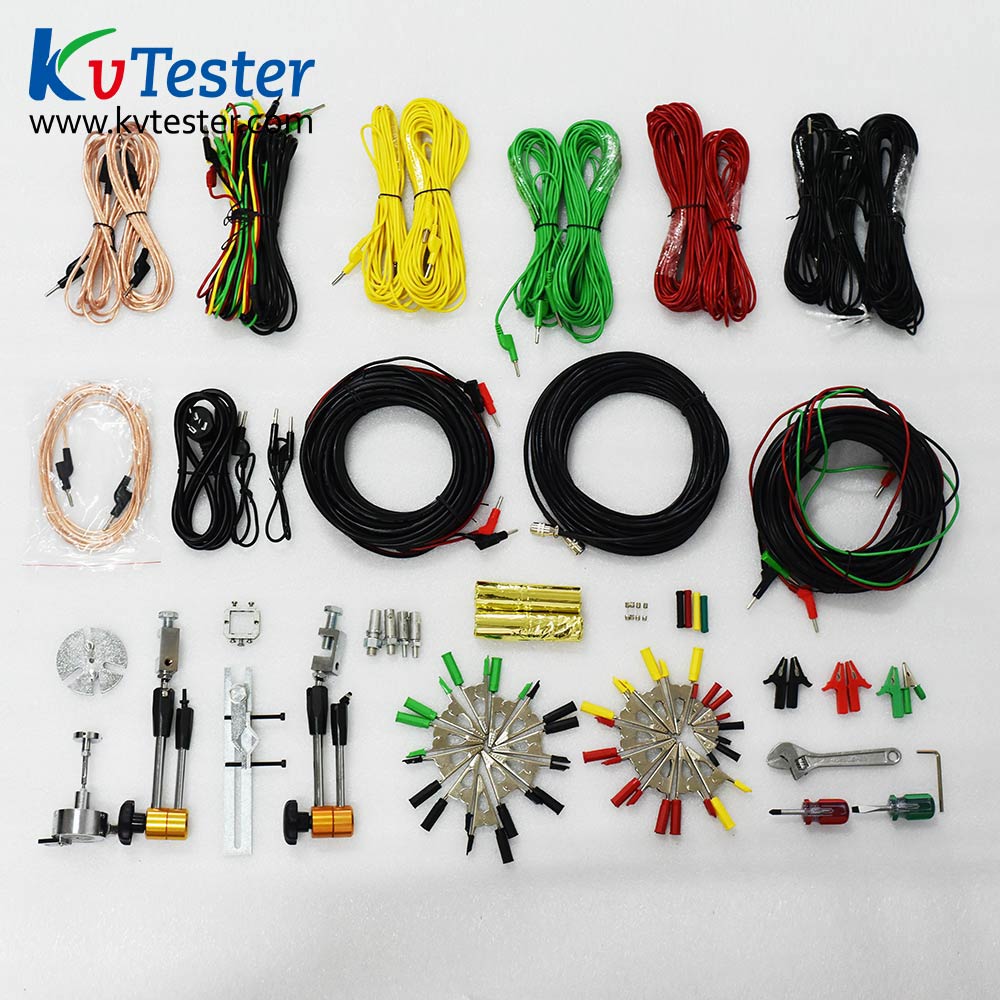

High voltage switch dynamic characteristic tester

type:ZC-300G

ZC-300G high voltage switch dynamic characteristic tester can be used to test and measure the mechanical characteristic parameters of high voltage switches in power systems such as vacuum, sulfur hexafluoride, less oil, more oil and so on. With stable measurement data, strong anti-interference, convenient wiring and simple operation, it is the most convenient tool for high-voltage switch maintenance test.

Online Service

TAGS:

  • Product Introduction

ZC-300G high voltage switch dynamic characteristic tester can be used to test and measure the mechanical characteristic parameters of high voltage switches in power systems such as vacuum, sulfur hexafluoride, less oil, more oil and so on. With stable measurement data, strong anti-interference, convenient wiring and simple operation, it is the most convenient tool for high-voltage switch maintenance test. It is developed in strict accordance with the requirements of the general technical conditions of high voltage test equipment, Part 3: high voltage switch integrated tester DL/T846.3-2004, which is the standard of the power industry of the people's Republic of China.


  • Product Parameters
Test channels12 channels with 25V,the current is 50mA
Transducerone analog transducer
TIME
Recording time length0.1~20.0s
Time accuracy±0.l%reading ± 2 LSB
Resolution0.1ms
Motion
Range0~1000mm
Accuracy±1% reading ±1LSB
Resolution0.1mm
Velocity
Ranges0~20.00m/s
Accuracy±1%reading ±1LSB
Resolution0.01m/s
DC POWER
Ranges15~260V
Max current20A
Accuracy±1%reading ±1LSB
Load change≤1%
TRIGGER
Voltage 15~260V
Current0.1-20A
Tranducerthe transducer states changes
Channels channels states changed
DIMENSIONS380mm×262mm×120mm
WEIGHT 6kg
OPERATION TEMPERATURE-10℃~50℃
HUMIDITY≤80% RH
POWER SUPPLY
VoltageAC 220V/240V±10%
FREQUENCE60Hz±10%
SAFETY
Insulation resistance>2MΩ
Leakage current<3.5mA
ImmunityAC 1500V 50Hz,1min


  • Product Features

Ability :  the instrument can test the vacuum circuit breaker ,sf6, oil circuit breaker, gis and etc. the test parameters include, close or open time ,delta time ,bounce time ,bounce cycles, multi-operation, stroke , gap ,over-travel ,overshoot ,rebound and the speed, with the ability of test results and graph display.

Immunity : withstand the 550KV electrostatic environment  .

Transducer  : with one analog transducer test ability .

Standard : with the standard of  DL/T846.3—2004  (P.R.C.)。

Power   : with internal dc power ,the voltage ranges from 15v to 250v.

Trigger   : with four triggers to start the recording ,channels state, voltage, current and transducer.

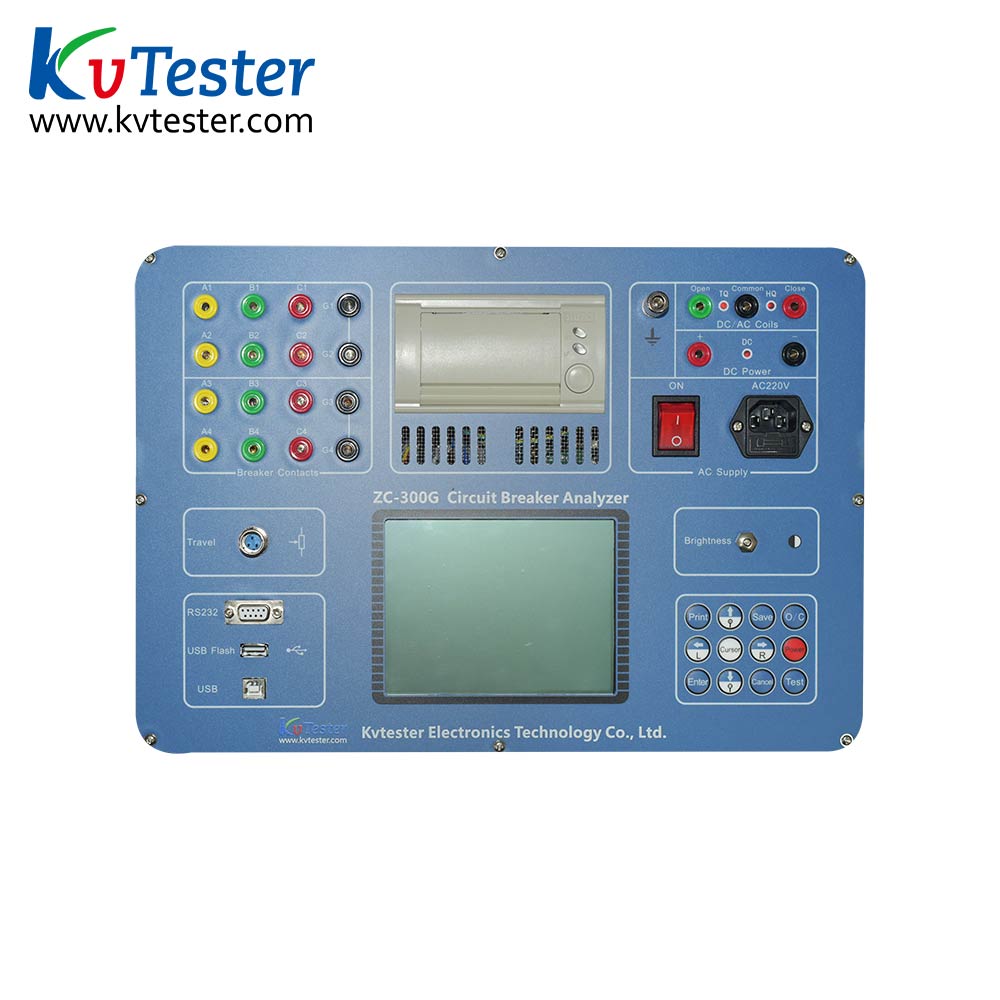

HMI     : via keypad and a large  transflective  LCD display (320 x 240 pixels).

Speed  :supply series of speed definition with editable and un-editable selection.

Recording: with twelve channels ,coil current and transducer .

Print     :with internal installed 58mm wide thermal printer.

Communication: with RS232 and USB communication interface.

Memory:  with a SD card of 2GB,the maximum storage ability is 100 test results.

USB FLASH: USB and RS232 interface for data communication with the PC.

Help : the instrument has internal help topic.
