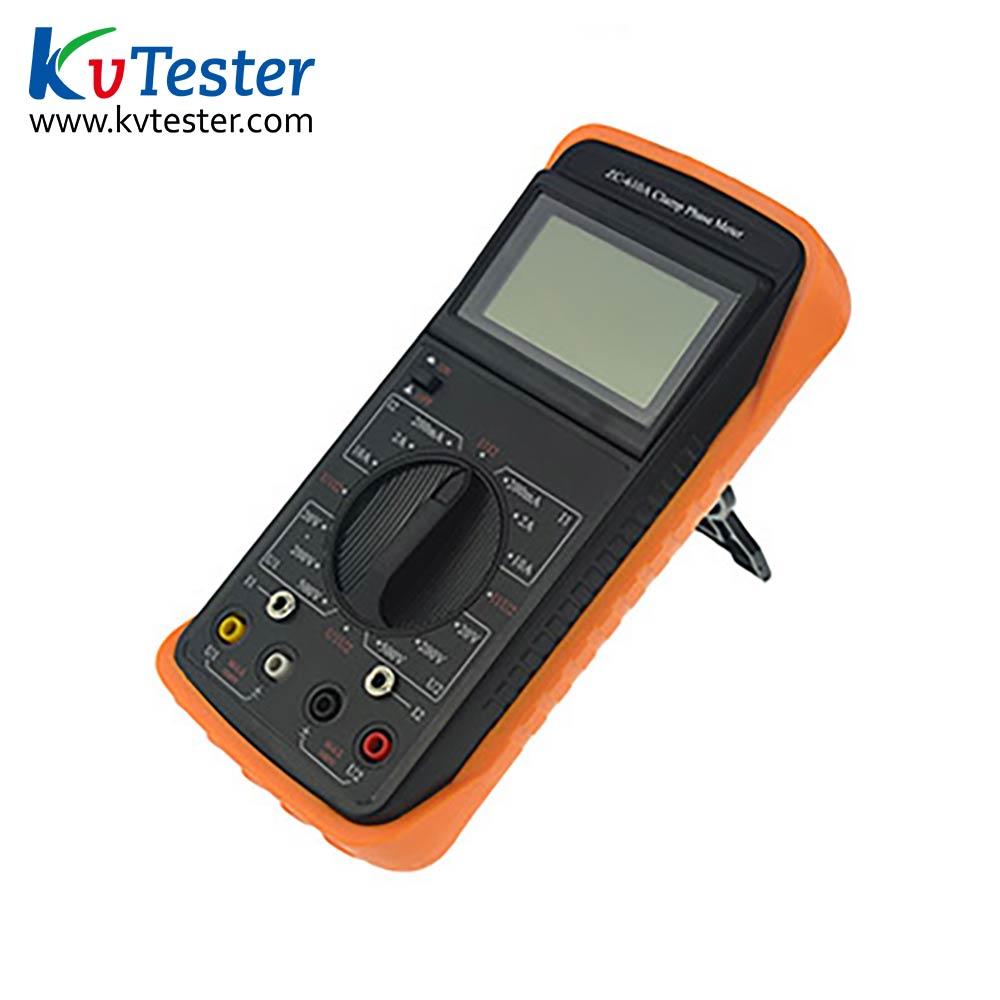

Clamp Phase Meter

type:ZC-610A
Product Introduction ZC-610AClamp Phase Meter is special designed for voltage, current and phase tests, it is in high-precision, low price, portable hand-held, dual-channel input measuring. Its easy to measure the phase between U-U, I-I and
Online Service
  • Product Parameters
Ambient temperature (0~40)℃
environment humidity (20~80)% RH
Measured signal waveform Sine wave, β=0.05
Measured signal frequency (50±0.5)Hz
The position of the measured current carrying wire in the jaw Arbitrarily
External reference frequency electromagnetic field interference Should be avoided


  • Product Features
    1. ingenious structure, easy to operate.
    (a)hand held structure
    (b)you should not disconnect the circuit or change the measurement range under 10mA-10A , 3V-500v.
    (c)use high contrast LCD, character can be 25mm, the screen angle can be 700, to obtain the best visual effects
    (d)the function and layout of the switch are reasonable, rotating can read the measuring voltage ,current and phase.
    2. high resolution

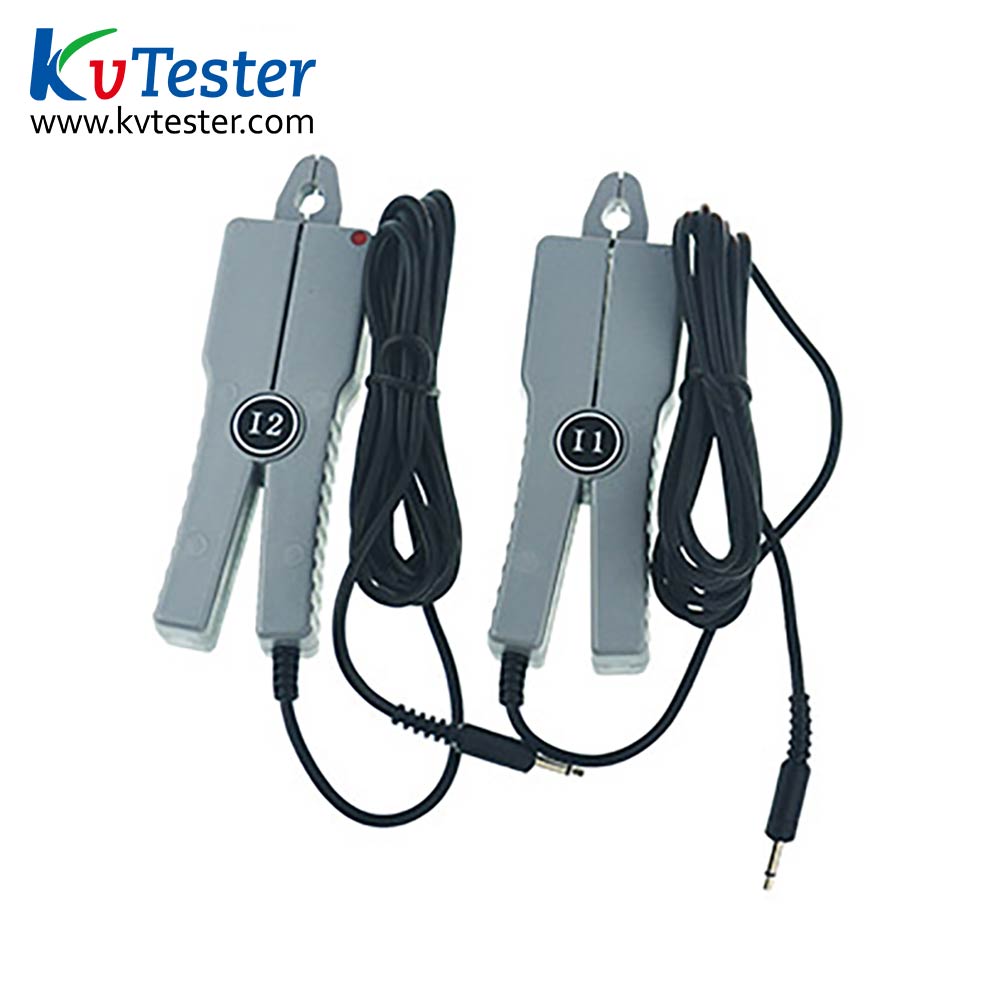

    adopt new type patent current clamp , current resolution up to 0.1mA; voltage resolution up to 0.1V.
    3. Low power consumption
    this product with micro power consumption design and with the function of testing the voltage of battery.
