Cable fault comprehensive tester

type:ZC-703A
Online Service

TAGS:

  • Product Introduction

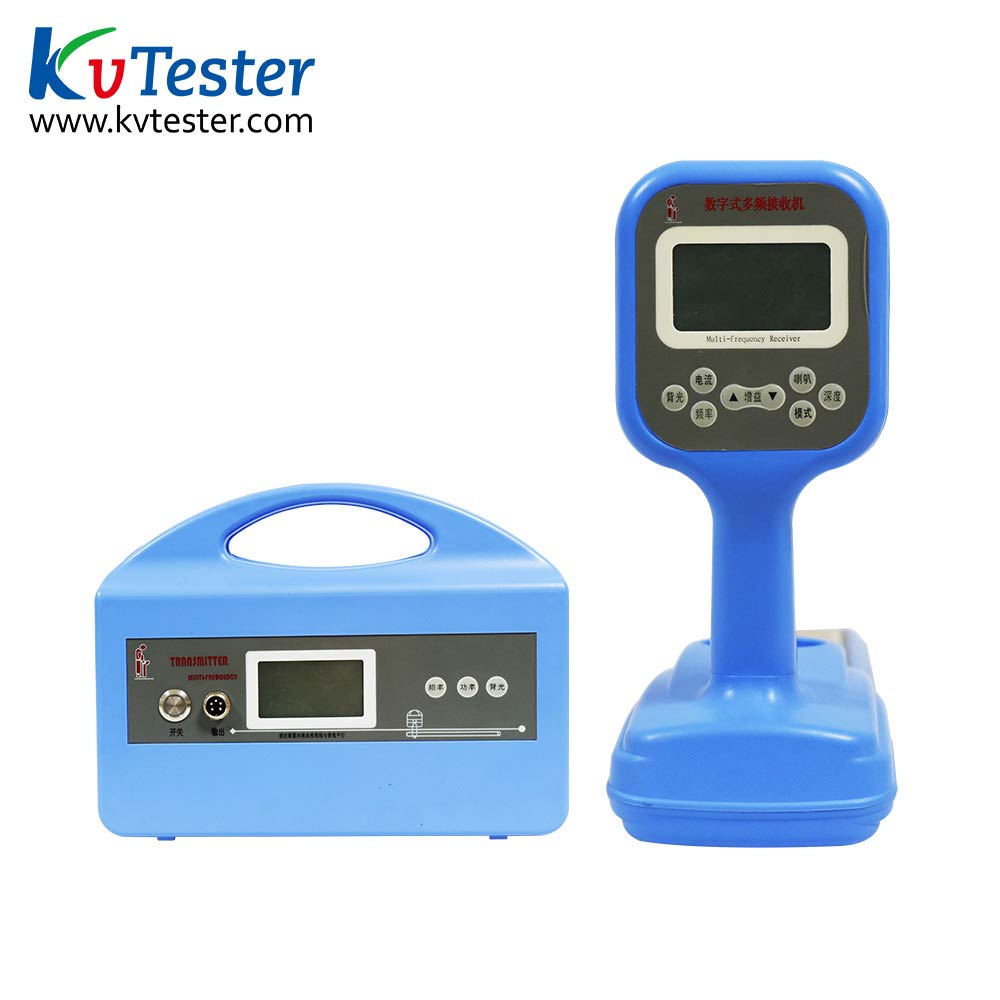

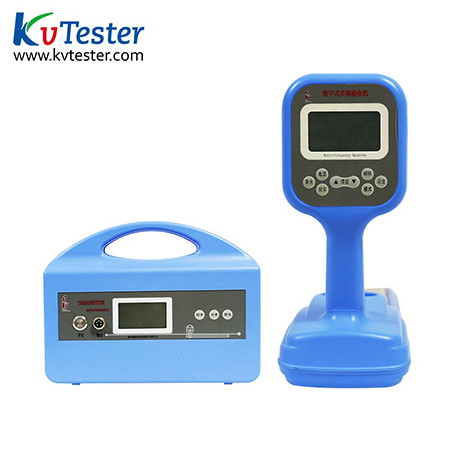

ZC-703A pipe locator is based on electromagnetic induction method to the application of communication principles designed. Included in the use of more user-friendly design, through large-screen liquid crystal display signal strength, grate, arrows and voice prompts make the operator to easily determine the location and underground cable fault. One person to complete all operations.

  • Product Parameters

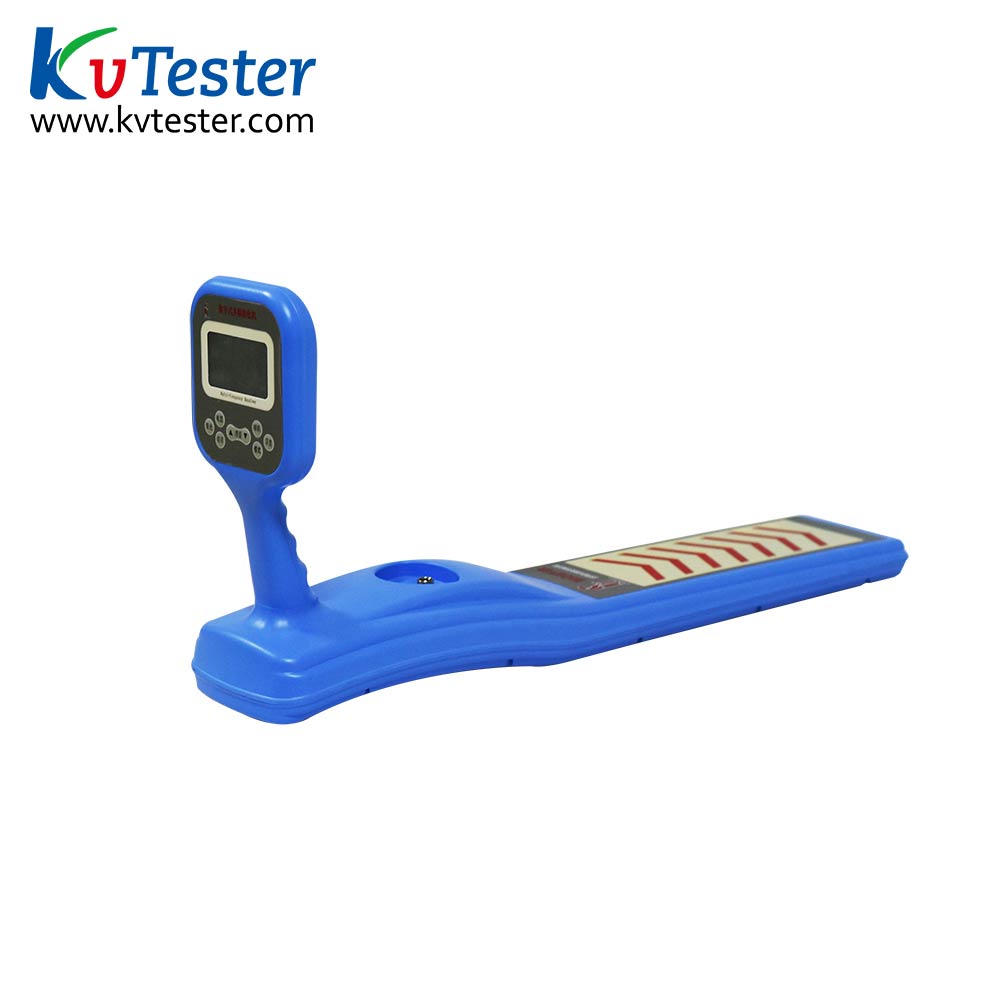

Receiver

Operating frequencylow frequency, RF
Sound indicationsignal intensity changes with the FM tone
Current indicationDisplay the current value of the effective cable under test (unit: mA)
Operating temperature-10 ° C - +55 ° C
Battery Type7.4V lithium battery
Battery indicatorgraphics
Battery lifecontinuous > 8 hours: stopped working > 16 hours
Size70cm × 20cm × 11cm
Weight3 kg (with battery)
Signal strength, saidladder, the number range 0 - 999
Gain Controlmanually adjust the dynamic range of 100db
Detection depthMaximum depth of not less than 2.5m probe
Maximum detection rangedirect law insulated cable up to 15km
AccuracyLF: ± (1-5)% ≤ 2.5 meter  RF: ± (5-12)% ≤ 2.5 meter

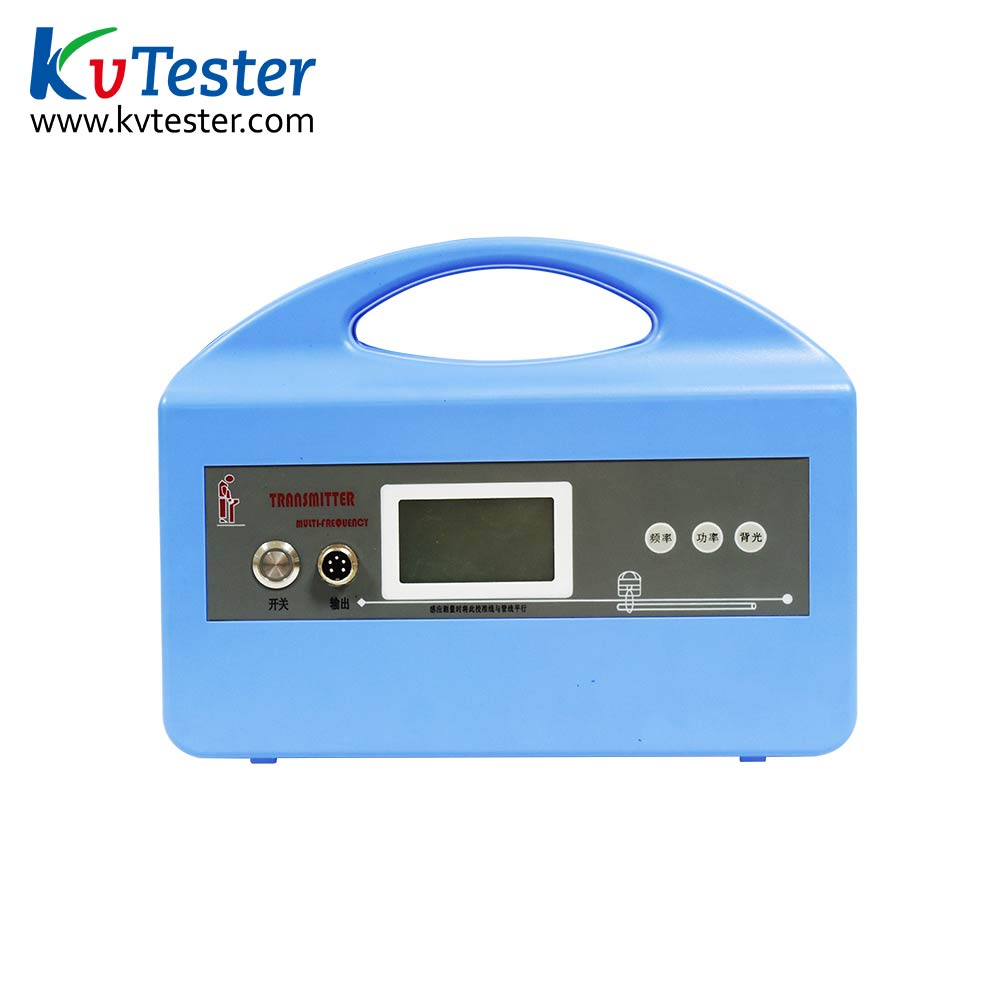

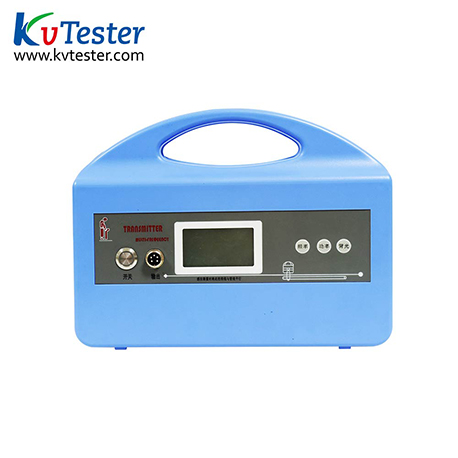

Transmitter

Operating frequency

low frequency, RF

Modedirect method, coupling method, inductive method
Matched load5 ohms -3000 ohms
Impedance displayfive digits
Thermal over-currentautomatic protection
Power outputlow block, mid-range, high gear
Battery Type7.4V lithium battery

Battery lif

working 4-8 hours depending on use frequency, output power

Operating temperatur

-10 ° C-55 ° C

Size

16cm × 16cm × 39cm

Weight

² 4 kg (with battery)

Intermittent work 6-10 hours depending on the frequency of use, output power


  • Product Features

1.all-digital positioning system, and show a clear, reliable positioning

2.portable lightweight, easy to use, quick to find

3.Built-in rechargeable battery, the test without electricity

4.depth with cable shows, current shows

5.large-screen LCD graphic display, without earphone test

6.Built-in ohmmeter measure the resistance of the cable loop

7.cable locating and fault-finding with two functions

8.You can find up-to-ground insulation failure 2MΩ

9.adapt to night-time operation with backlight
