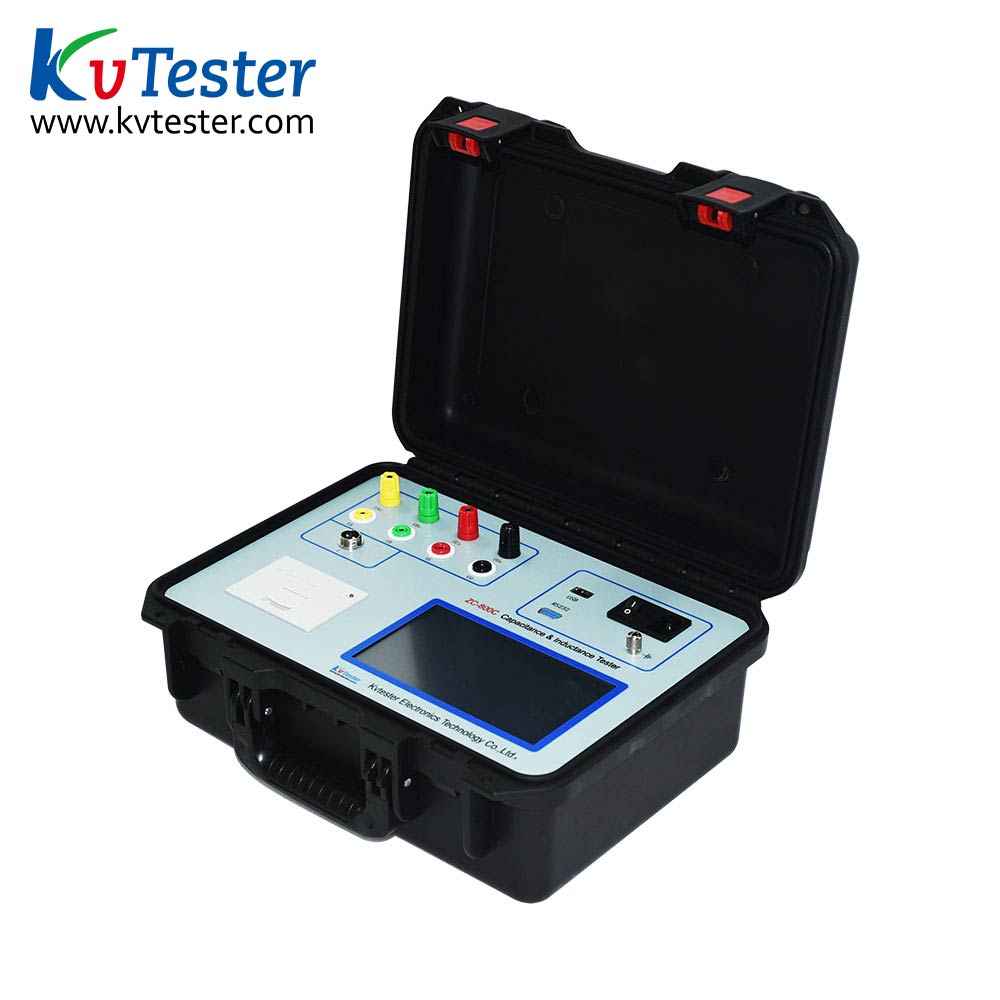

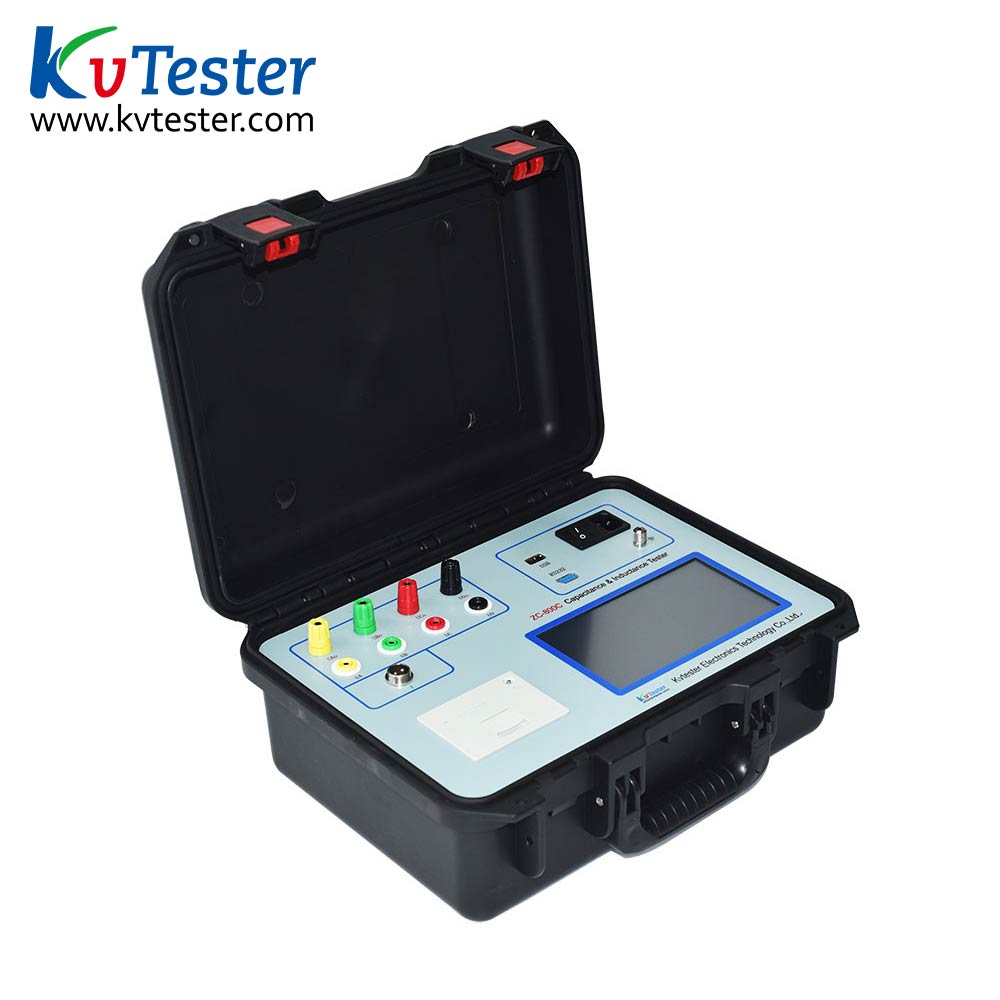

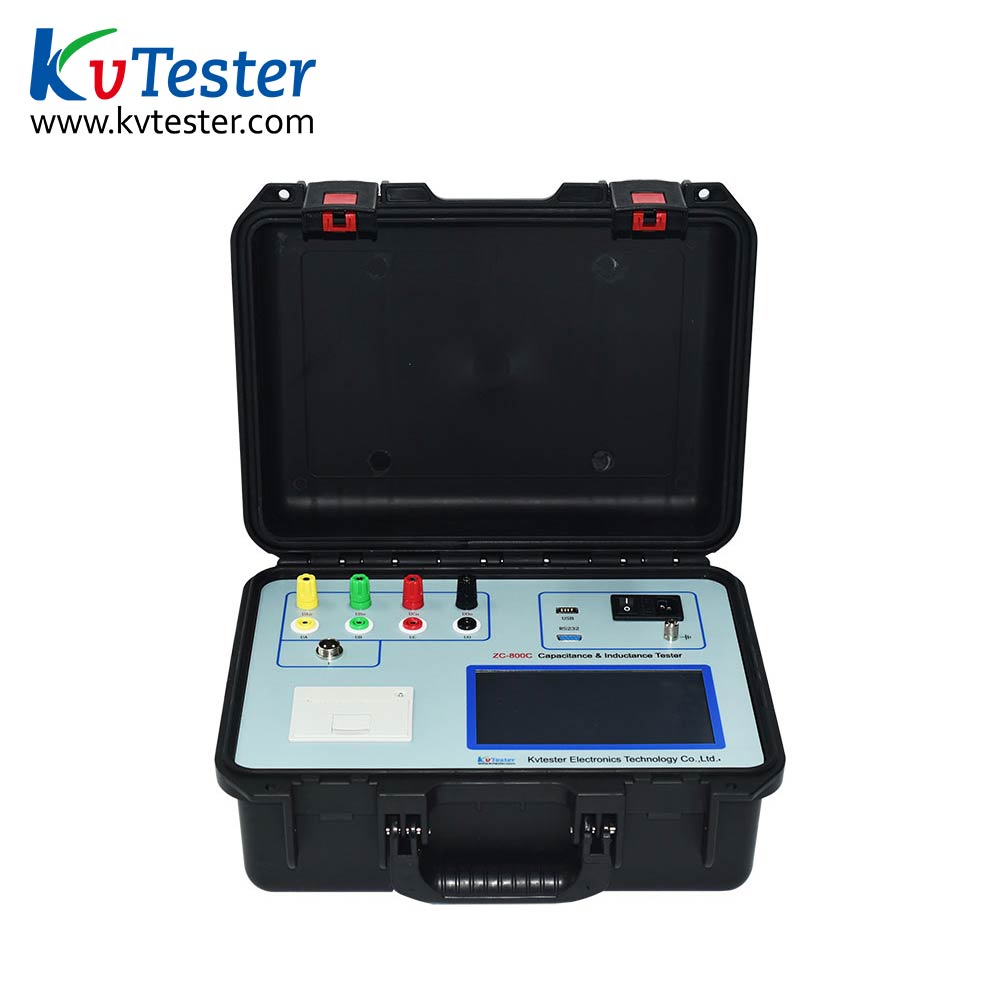

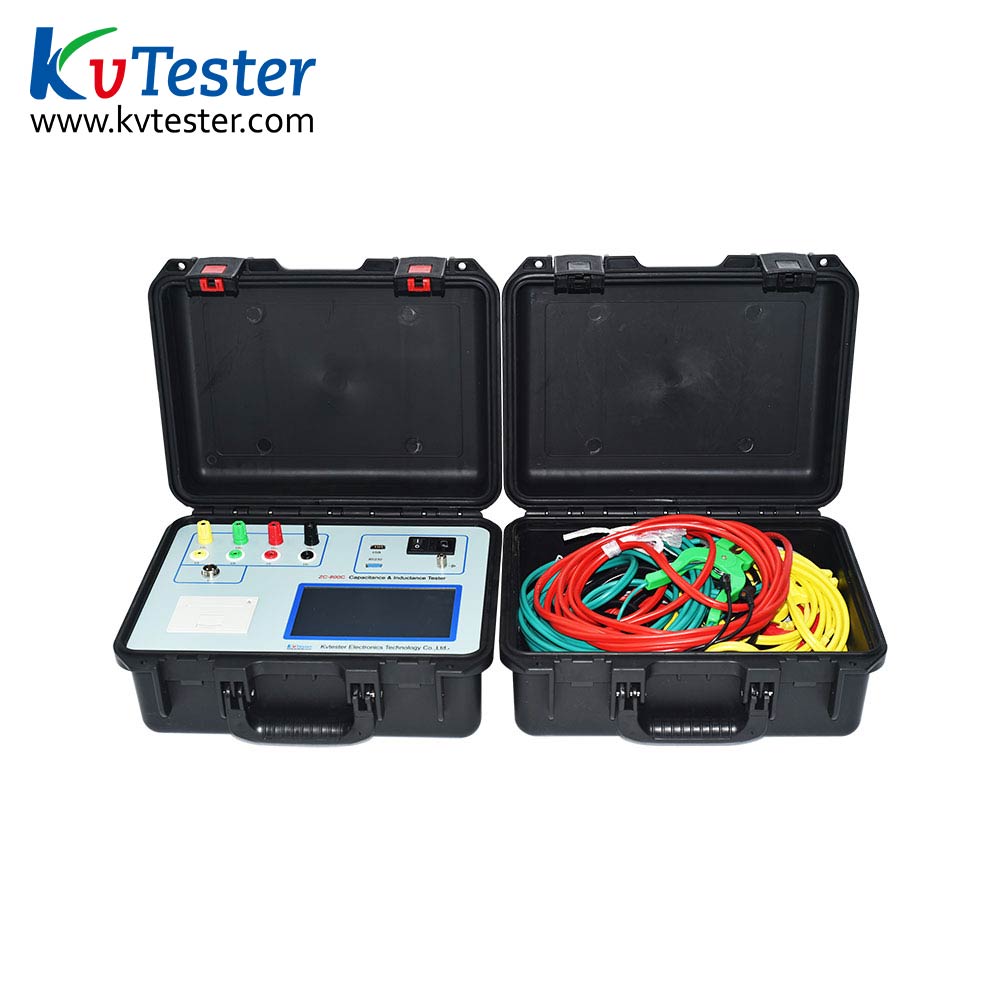

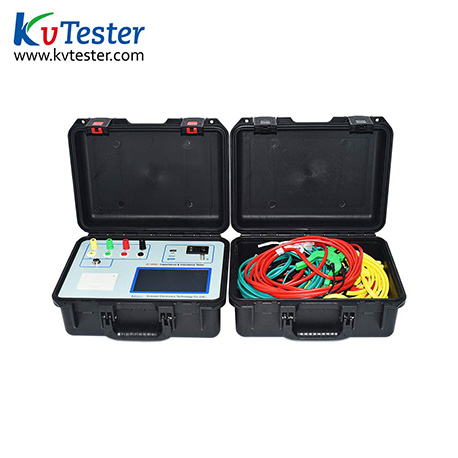

1、The instrument can measure the single capacitance of a group of parallel capacitors (single-phase capacitance and three-phase capacitance can be measured) without removing the wires. At the same time, the instrument can also measure the inductance of various reactors, which can meet the needs of various on-site applications.
2、During the measurement, the instrument can display the measured capacitance value or inductance value as well as the measured voltage, current, frequency, impedance, phase angle and other data;
3、The instrument uses the output of the heterofrequency power supply for testing, which greatly improves the anti-interference ability of the field, and can be tested in the high-intensity magnetic field without affecting the accuracy.

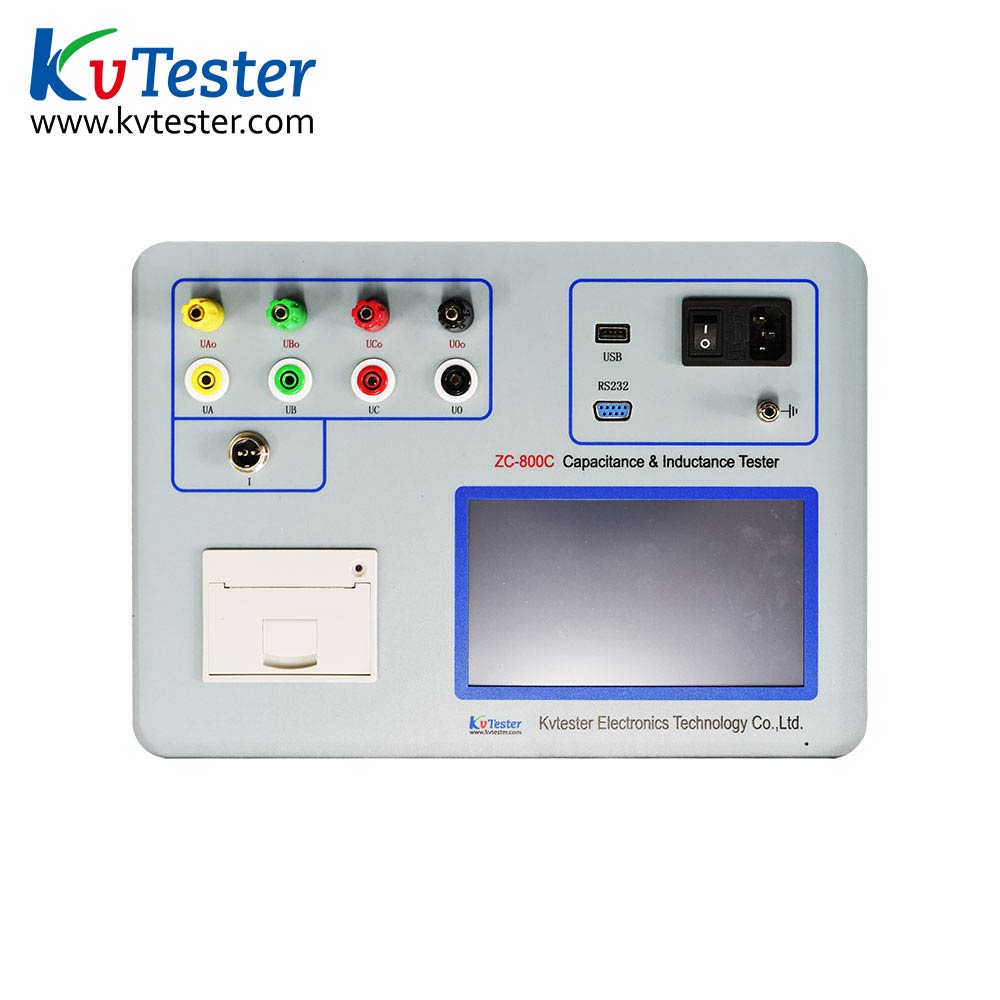

4、The instrument adopts 7.0 inch 1024 × 600 high-definition screen, touch operation, clear observation during the day and night, free switching between Chinese and English, easy to operate.
5、The instrument has a large capacity nonvolatile memory: it can store 500 groups of measurement data.
6、The instrument is equipped with a USB flash disk interface, which can store any group of measurement data (limited by the capacity of the USB flash disk).
7、The instrument has built-in high-precision real-time clock function, which can calibrate date and time.
8、The instrument has its own printer, which can print measurement data.
9、The instrument can use an Android phone or tablet, follow the WeChat official account, download a special APP, control the whole process through a special software, store and upload test data for easy reference.
