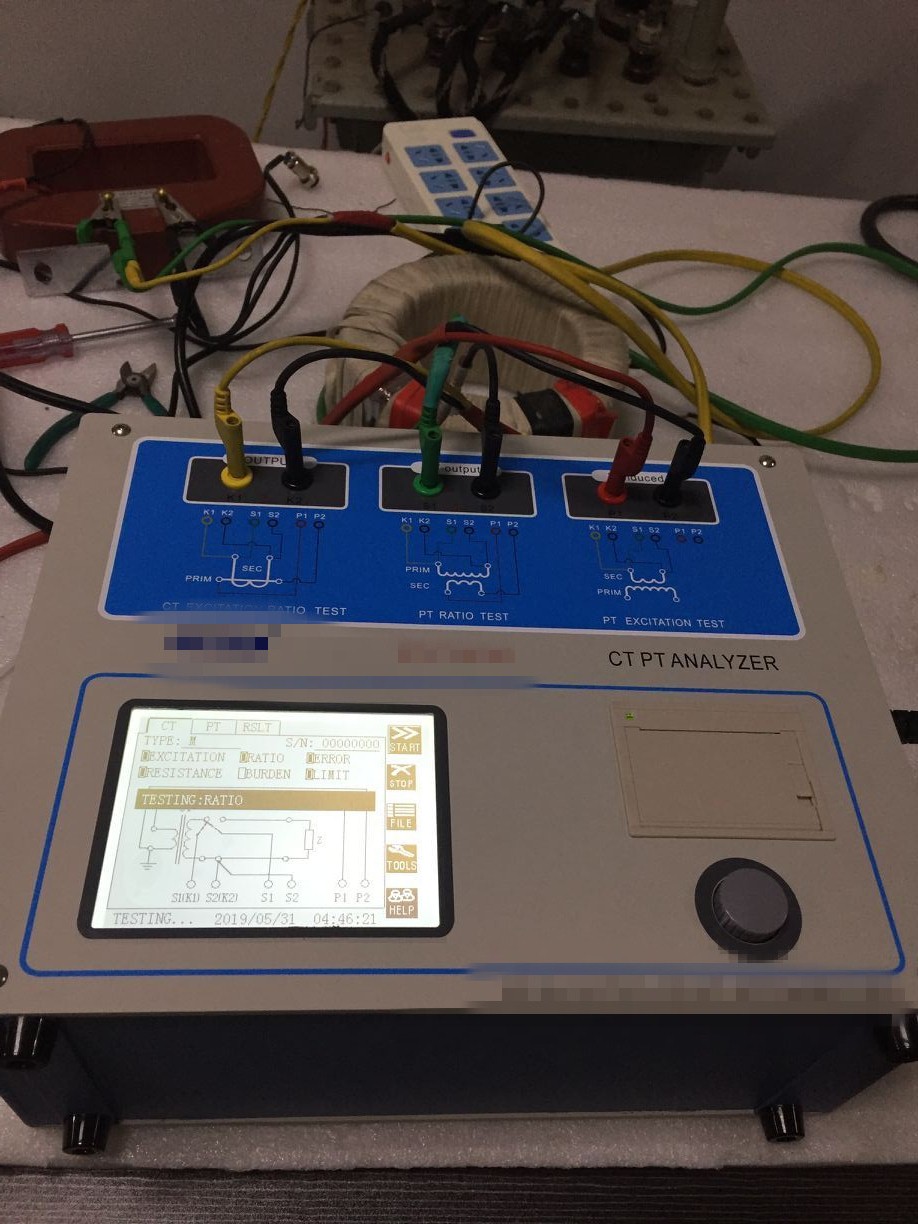

Now our staff are packing the CT analyzer package. Later , Fedex will come to pick it up. Our CT Analyzer parameters is as the below for your reference.
|
Type |
CTA-1000C |
|
Function |
CT, PT |
|
Output |
0~180Vrms,12Arms,36A( Peak value ) |
|
Voltage measurement accuracy |
±0.2% |
|
CT ratio test |
Range |
1~40000 |
|
|
Accuracy |
±0.1% |
|
PT ratio test |
Range |
1~40000 |
|
|
Accuracy |
±0.1% |
|
Phase test |
Accuracy |
±5min |
|
|
Resolving power |
0.5min |
|
Secondary resistance test |
Range |
0~300Ω |
|
|
Accuracy |
0.5%±2mΩ |
|
AC burden test |
Range |
0~1000VA |
|
|
Accuracy |
0.5%±0.05VA |
|
Input voltage |
AC220V±10%,50Hz |
|
Work environment |
Temperature :-10οC~50οC, Humidity :≤90% |
|
Size/Weight |
365 mm×290 mm×153mm, Weight <10kg |
