The AC/DC voltage divider is used in power systems and electrical and electronic equipment manufacturing departments to measure power frequency AC high voltage and DC high voltage. It is a high voltage measurement device with impedance capacitance equipotential shielding and voltage divider. Mainly used for measuring pulse high voltage, lightning high voltage, and power frequency high voltage. The AC/DC voltage divider is a specialized instrument used for on-site measurement, which can measure both DC high voltage and AC high voltage. The entire equipment consists of two parts: a voltage divider and a measuring instrument. The voltage divider adopts a balanced equipotential shielding structure, and high-quality electronic components are used inside the fully sealed insulation cylinder, ensuring accurate testing, good linearity, and stable performance of the entire device.
Main purpose:
1. Electric energy transmission:
AC/DC voltage dividers are used to transmit electrical energy, which can transmit high voltage over long distances to reduce energy loss during the transmission process. At the same time, establish an appropriate voltage level between the power supply and the load.
2. Voltage conversion:
The AC/DC voltage divider can convert high voltage into low voltage or low voltage into high voltage. This is crucial for achieving matching between different power equipment and circuits.
3. Voltage stability:
The AC/DC voltage divider can provide stable output voltage, enabling various equipment and circuits in the power system to work normally, and protecting the load from high or low voltage fluctuations.
4. Insulation isolation:
The AC/DC voltage divider can prevent electrical energy leakage and protect personal safety by isolating the input and output terminals through insulation.
5. Impedance matching:
The AC/DC voltage divider can adjust the impedance of the circuit to achieve maximum power transmission between the power supply and the load.
Main features:
The AC/DC voltage divider adopts equipotential shielding method, with high measurement accuracy and digital display. It has high accuracy, stable performance, simple structure, small volume, light weight, and is easy to carry. It is an ideal equipment to replace static voltage meters for on-site measurement.
Precautions for use:
1. When using this equipment, there should be no debris around it to avoid affecting the measurement accuracy;
2. Strictly pay attention to maintaining operating distance to ensure safe operation;
3. Check the reliable connection of all parts, especially the firm connection of the ground wire;
4. After the measurement is completed, it is not allowed to enter the site until the instrument measurement shows zero;
5. It is strictly prohibited to use under excessive pressure, and attention should be paid to the cleanliness of the surface. When not in use, it should be placed in a cool and dry place.

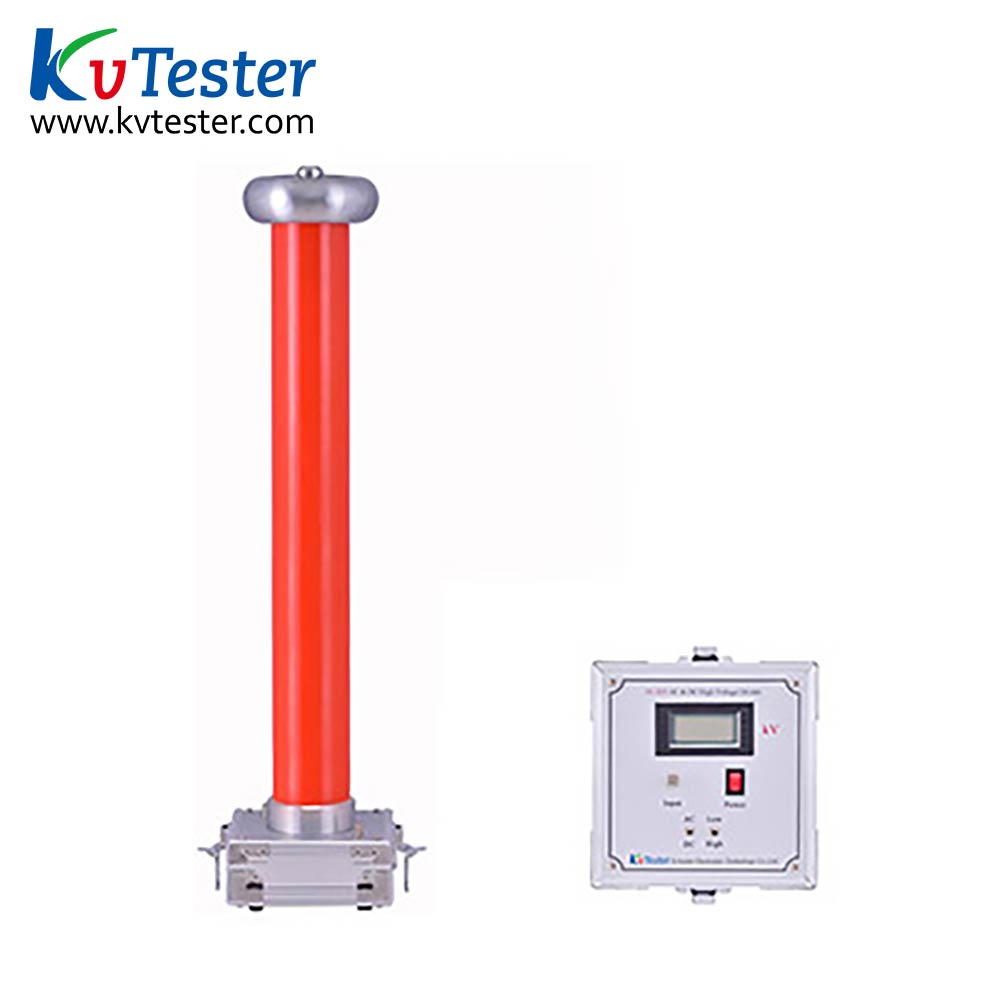

The ZC-503 series AC/DC high voltage divider is a specialized instrument for on-site measurement, which can measure both DC high voltage and AC high voltage. The entire equipment consists of two parts: the divider and the measuring instrument. The voltage divider adopts a balanced equipotential shielding structure, and high-quality electronic components are used inside the fully sealed insulation cylinder. This makes the entire device characterized by accurate testing, good linearity, stable performance, reasonable structure, easy portability, simple operation, and intuitive display. Therefore, it is an ideal instrument for on-site measurement.
