Exploring the working principle and product advantages of power quality analyzers

:2024-05-06 13:35:29:

In the power industry, power quality analyzers have become an indispensable and important tool. It can not only help us monitor the real-time operation status of the power grid, but also accurately measure and analyze various power quality parameters, thereby ensuring the stable operation of the power grid. So, how does a power quality analyzer work? What are its significant advantages?

1. Working principle of power quality analyzer

The working principle of the power quality analyzer is mainly based on digital signal processing technology. It first converts the power grid signal into a small amplitude voltage signal that meets the input requirements of an ADC (analog-to-digital converter) through voltage/current transformers and signal modulation circuits. Then, the analog-to-digital conversion module converts these small amplitude voltage signals into digital signals and transmits them to the CNC module. The CNC module uses DSP (Digital Signal Processor) as the core to process the sampled signals of ADC, thereby calculating power quality parameters such as voltage difference, frequency difference, harmonics, three-phase imbalance, voltage flicker, etc.

2. Significant advantages of power quality analyzers

① Real time monitoring: The power quality analyzer can monitor parameters such as voltage, current, frequency, and harmonics in the power grid in real time, ensuring the stable operation of the power grid. Once an abnormal situation is detected, it can quickly issue an alarm to remind staff to handle it in a timely manner.

② High precision measurement: Using high-precision measurement technology, the power quality analyzer can accurately measure and analyze various power quality parameters, providing strong support for the optimized operation of the power grid.

③ Multifunctional: The power quality analyzer can not only monitor and analyze various power quality parameters, but also provide comprehensive information on the operation status of the power grid. It can help staff have a comprehensive understanding of the operation of the power grid, and promptly identify and solve potential problems.

④ Remote monitoring: Through network connection, the power quality analyzer can achieve remote monitoring and management. Users can view the operation status and data of the power grid through the network at any time and place, achieving convenient remote management.

⑤ Easy to use and maintain: The power quality analyzer adopts a simple and easy-to-use interface and operation mode, which is convenient for users to use and maintain. At the same time, it also has a powerful self diagnostic function, which can automatically detect the operating status and fault information of the equipment, providing strong support for equipment maintenance.

In summary, power quality analyzers play an important role in the power industry due to their unique working principles and significant advantages. It can not only improve the stability and reliability of the power grid, but also reduce the operating and maintenance costs of the power grid, making important contributions to the sustainable development of the power industry.

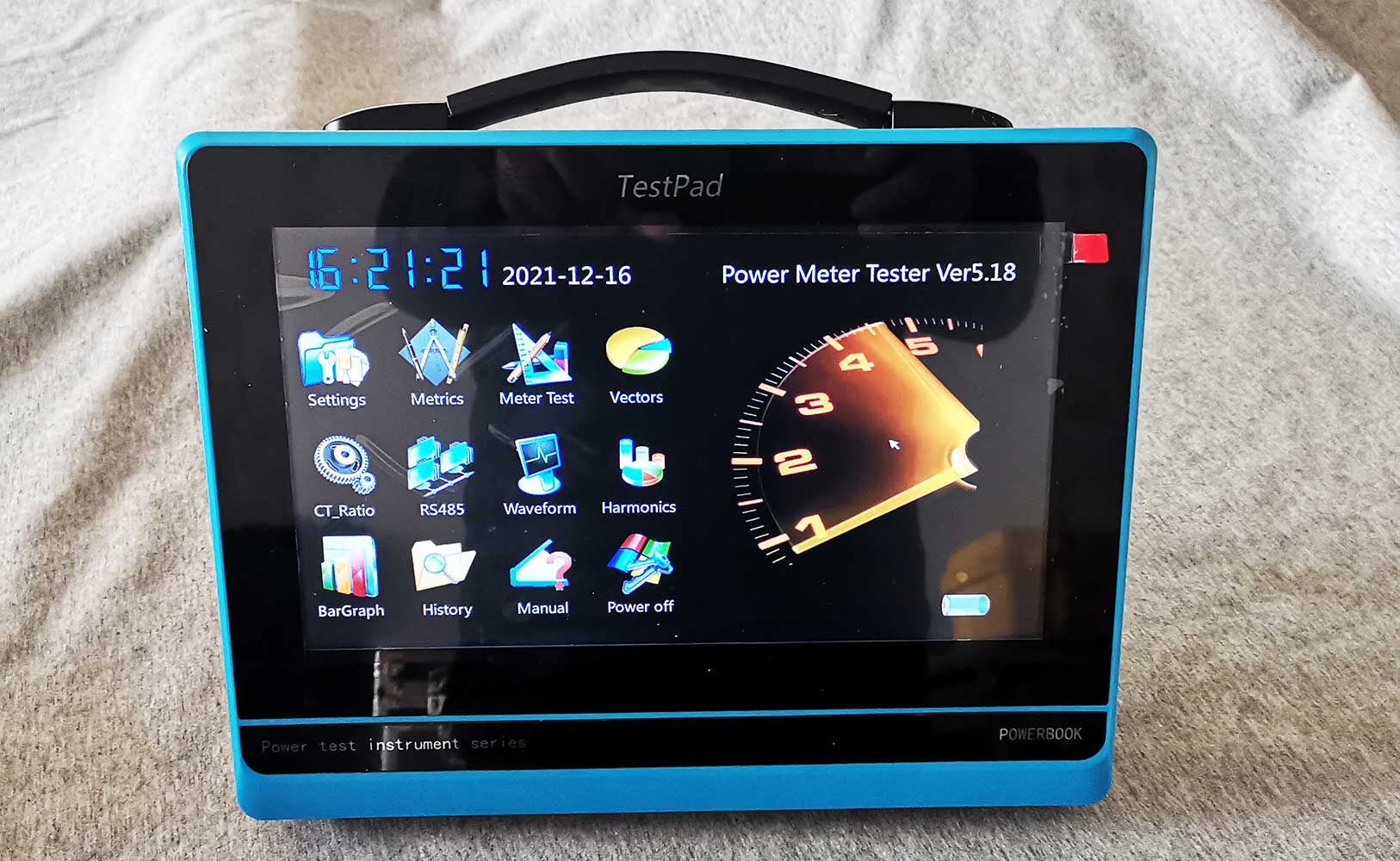

ZC-620A Multi-function electric energy meter on-site testing instrument is a high precision testing instrument that can measure electrical parameter and verify electric energy meter and judge on-site wiring. The instrument is equipped with the high precision and high linearity PT and CT ,so it has the high measuring accuracy when testing various electrical parameters.And it is equipped with the clamp-type current transformers . Users don’t need to disconnect the current circuit to wire easily with them on site .The instrument uses high-end embedded control panel and dedicated real-time multitasking operating system and 10-inch large-screen color LCD monitor . It uses English graphical operation interface with English prompt information. The man-machine dialogue interface is friendly .It has the functions of vector diagram display and wiring judgment ,which can provide the reliable basis for checking the correctness of the circuit. It uses the capacitive screen touch operation which is good handing feel and easy to learn. It has built-in large-capacity data memory, which can store a maximum of 60,000 groups of data and  can be extended indefinitely.Users can upload the history-records to the computer with the U disk and can also use the background management software of the instrumentto achieve the computerized management.
