1. Core functions
The fully automatic anti-interference dielectric loss tester is mainly used to measure the dielectric loss tangent (tg δ) and capacitance (Cx) of high-voltage electrical equipment. By evaluating the loss characteristics of insulation materials, the insulation status of the equipment can be determined, and faults caused by insulation aging or defects can be prevented. Its core advantage lies in fully automatic measurement and strong anti-interference ability, suitable for scenarios such as substations, power plants, laboratories, etc.
2. Technical features
① Anti interference design
Frequency conversion anti-interference technology: By using multi frequency test signals of 45Hz/50Hz/55Hz, it avoids power frequency interference and improves measurement accuracy.
Vector operation method and phase shifting method: automatically track and cancel external electromagnetic interference to ensure data stability.
Shielding structure and grounding protection: The test line is equipped with a built-in shielding layer, and the instrument has functions such as high voltage protection and CVT self-excited protection to prevent equipment damage caused by misoperation.
② High precision and wide range
The dielectric loss resolution reaches 0.01%, and the capacitance measurement range covers 1pF~10000pF, meeting the testing needs from low-voltage equipment to ultra-high voltage transformers.
③ Intelligent operation
One click fully automatic measurement: without manual intervention, the instrument automatically completes voltage boosting, data acquisition, and analysis.
Chinese menu and printing function: supports direct reading of results, data printing, and RS232 interface export for easy recording and traceability.
3. Typical application scenarios
① Power system: insulation performance testing of high-voltage equipment such as transformers, transformers, bushings, capacitors, etc.
② Electrical equipment manufacturing: quality inspection and aging test before leaving the factory.
③ Research and Testing: Performance Study of Insulation Materials, Development and Verification of New Equipment.
4. Summary of Advantages
① Efficiency: Fully automated processes shorten testing time and improve work efficiency.
② Reliability: Anti interference technology ensures data accuracy in complex electromagnetic environments.
③ Security: Multiple protection mechanisms ensure the safety of operators and equipment.
5. Precautions for use
① Environmental requirements: Avoid use in strong electromagnetic fields, high temperature and humidity, or corrosive gas environments.
② Regular calibration: It is recommended to have a professional organization calibrate annually to ensure measurement accuracy.
③ Standardized operation: strictly follow the instructions for wiring to avoid overload or misoperation.
The fully automatic anti-interference dielectric loss tester provides an efficient and accurate solution for insulation testing of high-voltage equipment through the combination of intelligence and anti-interference technology, and is an important tool for ensuring the safe operation of equipment in the power industry.

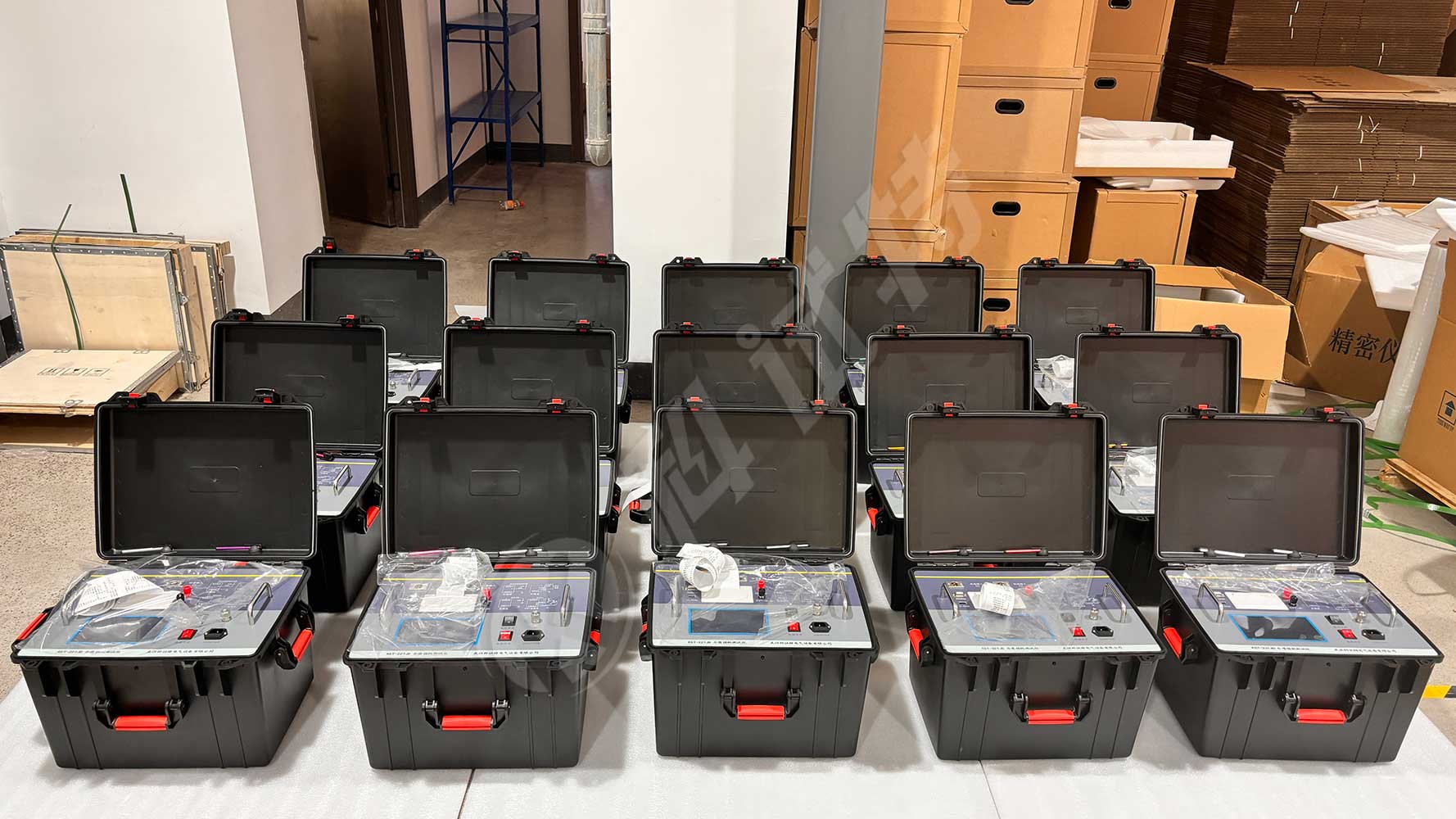

The ZC-221J Tan Delta tester breaks through the traditional bridge measurement method, adopts variable frequency power supply technology, and uses single-chip microcontrollers and modern electronic technology for automatic frequency conversion, analog/digital conversion, and data operation. It has achieved strong anti-interference ability, fast testing speed, high accuracy, automatic digitization, and convenient operation. The instrument adopts a high-power switching power supply, outputs pure sine waves at 45Hz and 55Hz, automatically applies voltage, can provide up to 10kV voltage, automatically filters 50Hz interference, and is suitable for on-site testing of electromagnetic interference in substations and other places. Widely used for dielectric loss measurement of transformers, bushings, capacitors, lightning arresters and other equipment in the power industry.
Kvtester Electronics Technology Co.,Ltd. is a high-tech enterprise specializing in power testing, testing, research and development, production, and sales of testing equipment. It has been engaged in the electrical testing industry for many years, and its products are of high quality. We welcome customers to come and purchase. Service hotline: 0086-27-81778799, to learn more, visit the official website: www.kvtester.com
