The relay protection tester is the core equipment for power system debugging and maintenance, and its core functions revolve around simulating faults, verifying protection logic, and calibrating action parameters. The following is an explanation from three dimensions: basic functions, testing types, and technical indicators:
1. Basic functions
① Fault simulation and output
Output high-precision voltage/current: supports three-phase voltage (0-400V) and current (0-100A/200A) output, with an accuracy usually better than ± 0.2%.
Multi type fault simulation: It can simulate abnormal working conditions such as short circuits (single-phase, two-phase, three-phase), ground faults, overloads, harmonics, etc.
Dynamic parameter adjustment: Parameters such as fault impedance, transition resistance, and fault duration can be adjusted in real-time.
② Verification of protective device action
Action logic testing: Verify whether the logic of starting, locking, tripping, etc. of the protection device complies with the design.
Action time measurement: Accurately measure the time from the occurrence of a fault to the action of the protective device (with an accuracy of milliseconds).
Fixed value verification: Compare the actual operating value of the protection device with the set value to ensure that the error is within the allowable range.
③ Data recording and analysis
Real time waveform recording: Capture voltage and current waveforms during the fault process, support playback analysis.
Test report generation: Automatically generate a report containing test parameters, action results, and waveform diagrams for easy archiving and traceability.
2. Technical specifications requirements
① Output capability
Voltage: 0-400V (adjustable, some models support 1000V high voltage output).
Current: 0-100A/200A (adjustable, some models support 1000A high current output).
Frequency: 50Hz/60Hz (supports harmonic superposition, such as 2-25th harmonics).
② Measurement accuracy
Voltage/current output accuracy: ± 0.2% (high-precision models can reach ± 0.1%).
Time measurement accuracy: ± 0.1ms (key indicator, directly affecting the accuracy of protection device calibration).
③ Security features
Overload protection: Automatically cuts off when the output is overloaded to prevent equipment damage.
Grounding protection: Built in grounding detection function to ensure the safety of operators.
Insulation testing: supports insulation resistance measurement and verifies the insulation performance of the test line.
summarize
The relay protection tester provides a comprehensive protection device verification solution for the power system through high-precision output, diversified fault simulation, and intelligent data analysis. Its core value lies in:
① Ensure reliability: Verify that the protective device operates accurately in the event of a malfunction, avoiding accidental or refusal to operate.
② Improve efficiency: Automated testing processes reduce manual intervention and shorten debugging cycles.
③ Reduce risk: Identify potential issues through pre validation to avoid power system accidents.

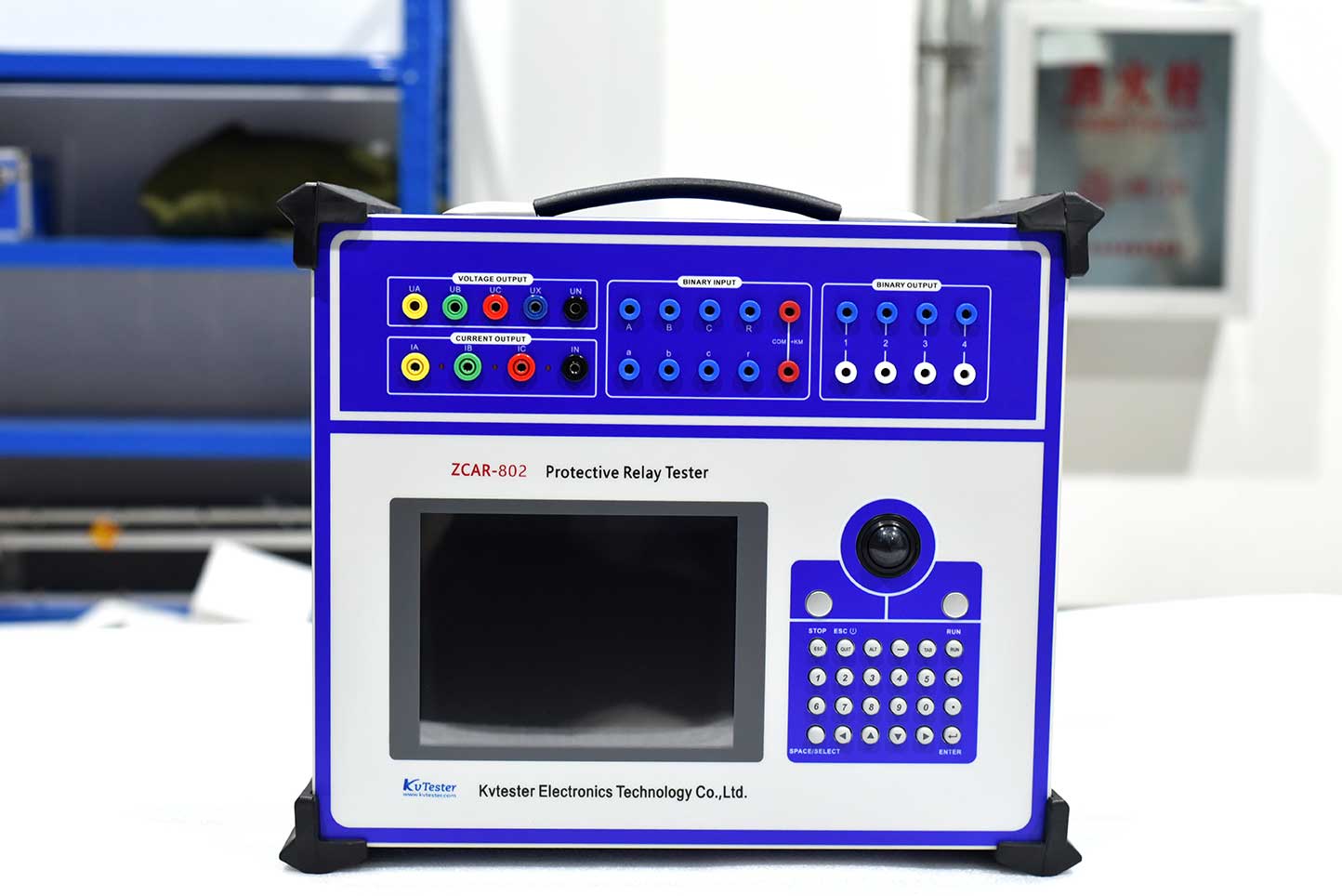

ZCAR-802 microcomputer relay protection tester is an important test tool to ensure the safety and reliability of power system operation.adopted modern latest new digital technology, high precision electronic parts, micro system with new circuits and new structure.It Can independently complete test of microcomputer protection, relay protection, excitation, measurement, fault recording and other professional fields tests, widely used in electric power, petrochemical, metallurgy, railway, aviation, military and other industries of scientific research, production and electrical test site.
