Pta-2000 portable voltage transformer analyzer is a new generation of innovative Pt testing instrument developed by our company based on the traditional comprehensive testing instrument of transformer volt ampere characteristic ratio polarity error analysis based on voltage regulator, booster and series resonance, widely listening to the user's opinions, after a lot of market research and in-depth theoretical research.

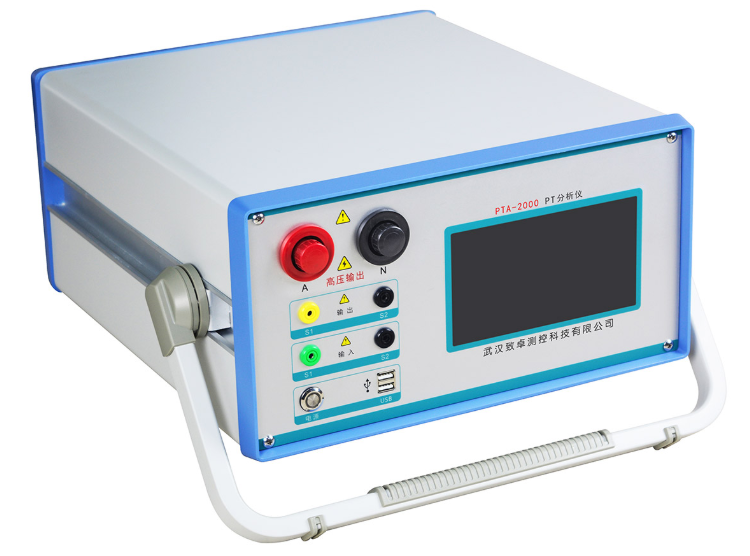

Portable voltage transformer analyzer
Its operation method is as follows:
1. Resistance excitation test
1.1 wiring method

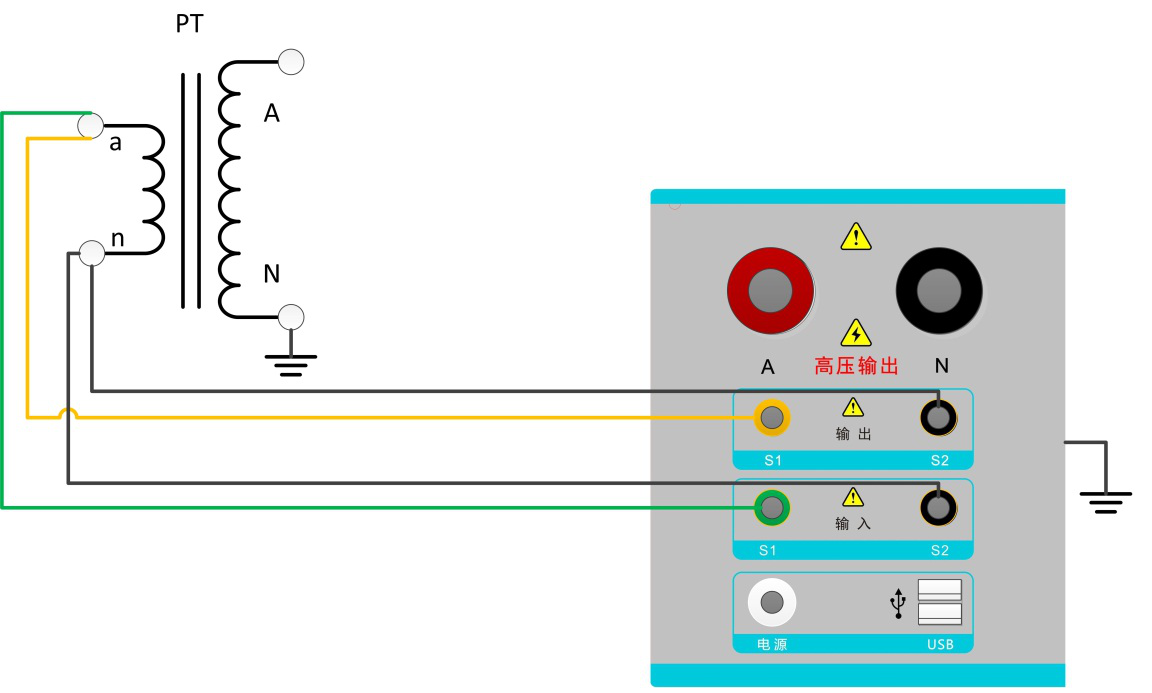

Pt resistance and excitation test wiring diagram
2. Transformation ratio test
2.1 wiring method

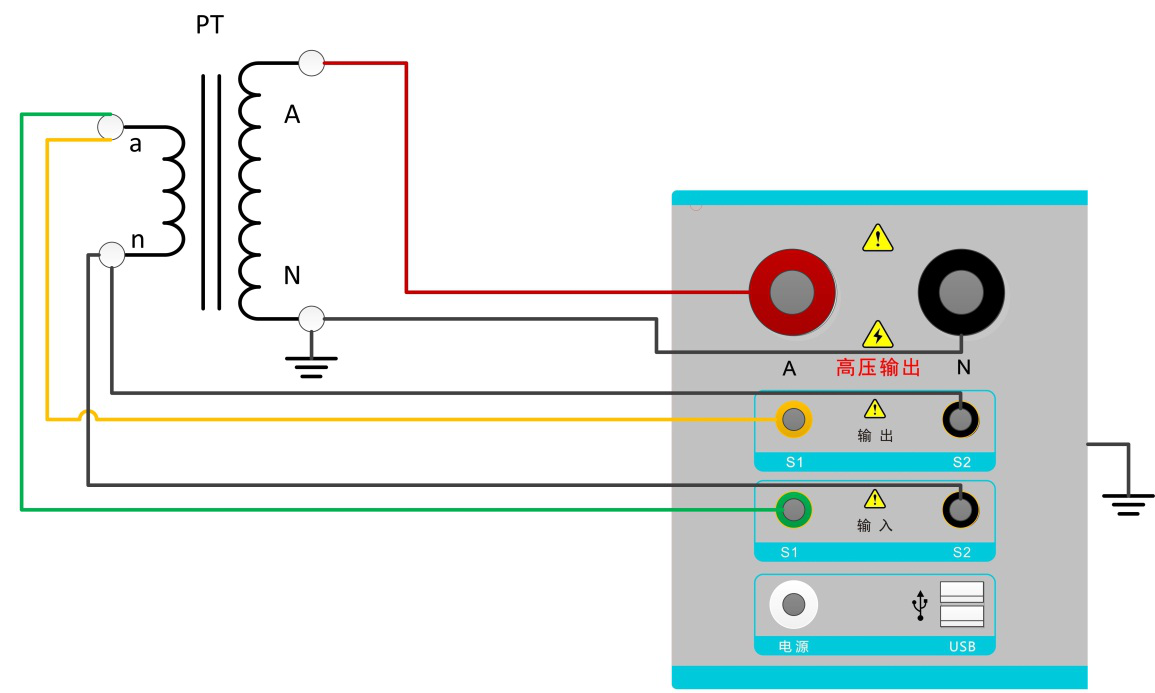

PT transformation ratio test wiring diagram
3. Angle difference ratio test
3.1 first step test transformation ratio
First, test the transformation ratio according to the wiring method in 1.1 according to the system prompts. Do not shut down after the completion of the test transformation ratio. Dismantle the wiring on the primary side according to the prompts and then carry out the second test;
3.2 second step test angle difference ratio difference
After the first test, remove the primary wiring according to the wiring prompts, and then press "-" to continue the test.
Note: during the transformation ratio and error test, there will be high voltage in the instrument. It is forbidden to change the wiring before the second test prompts wiring.
4. Load test
4.1 wiring method

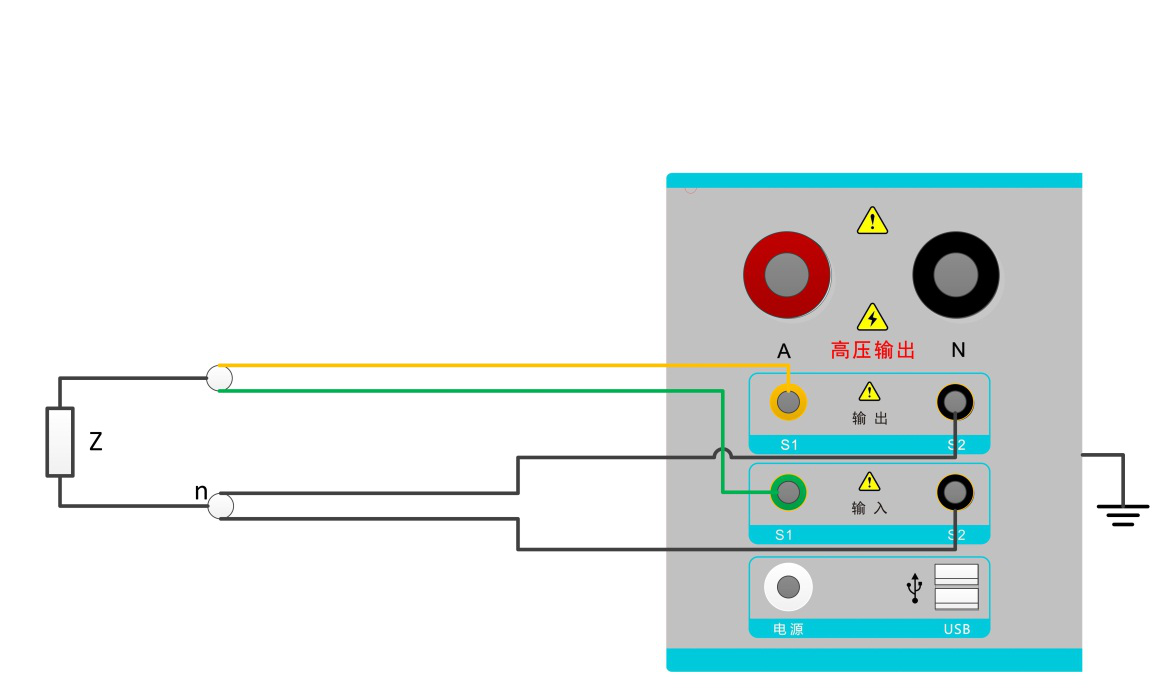

PT secondary circuit load test wiring diagram
5. Result description
If the currently selected experimental project is completed, the device will automatically enter the result display interface as shown in the following figure:

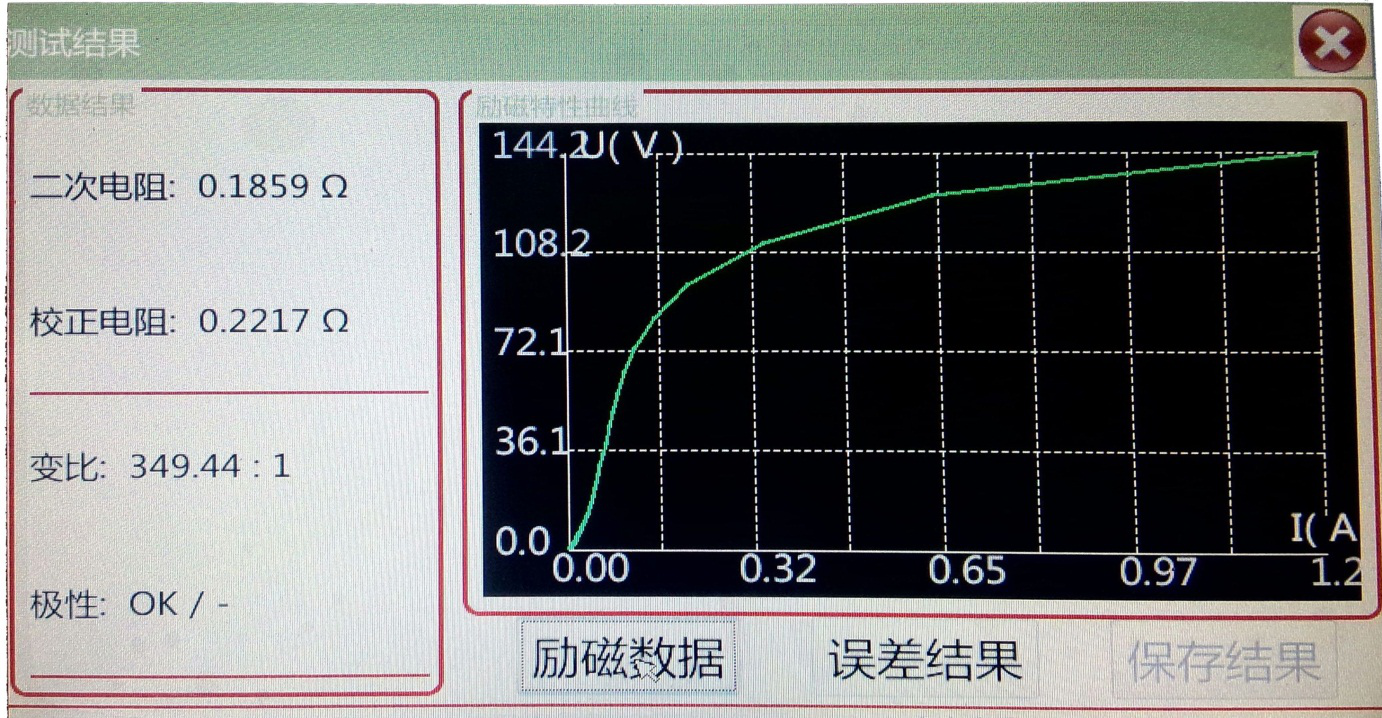

Excitation curve result interface
Secondary resistance: the secondary DC resistance value of the current set temperature test;
Correction resistance: the resistance value corrected to the target temperature;
Transformation ratio: measured transformation ratio of current winding
Polarity: OK / - (homopolarity) or NOK / + (reverse polarity).

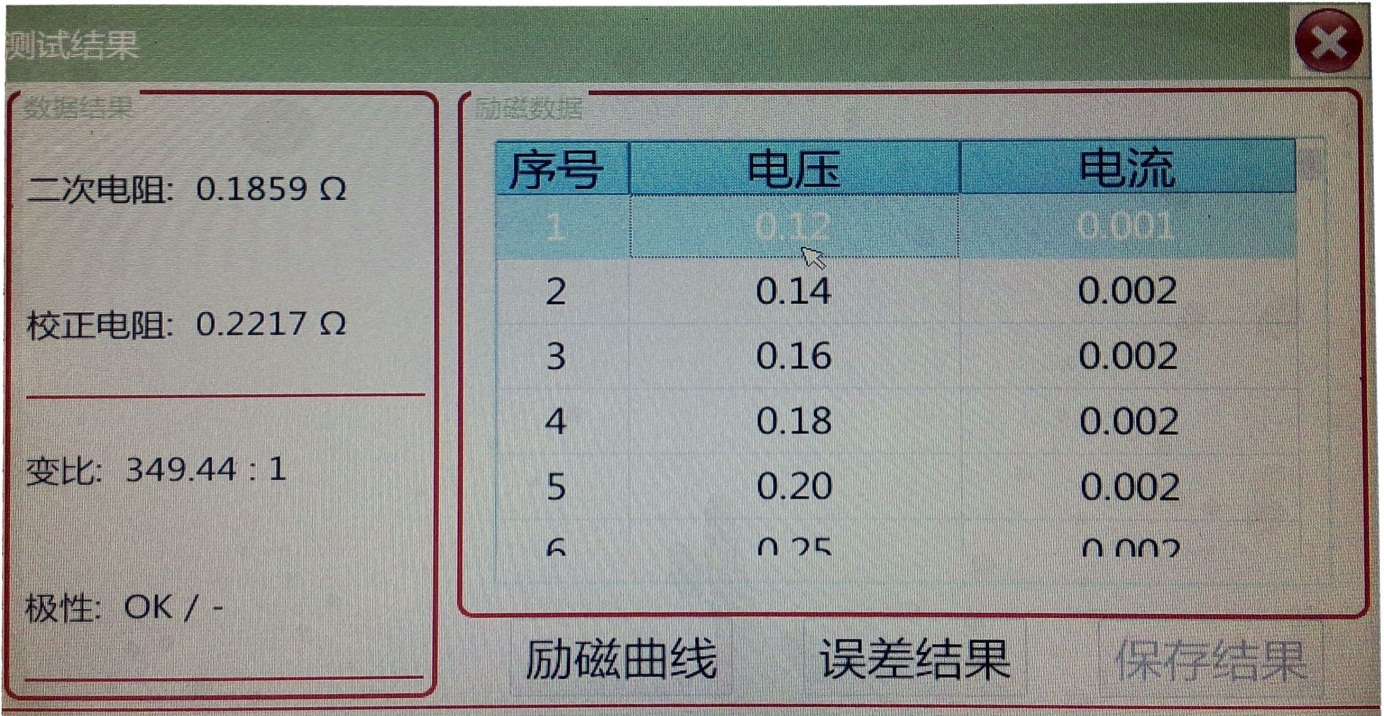

Excitation data result interface

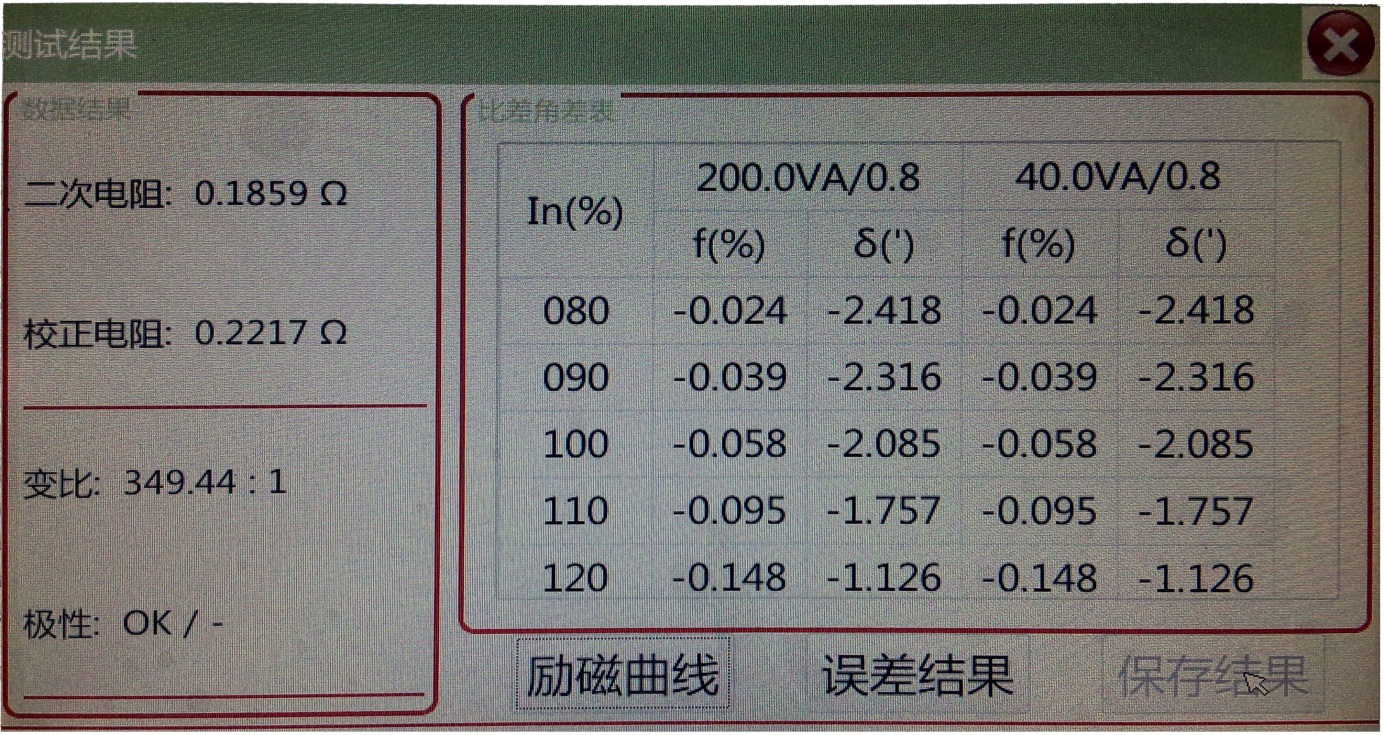

Error result interface
The above is the basic operation method of pta-2000 portable voltage transformer analyzer. It can be seen that pta-2000 portable voltage transformer analyzer is a professional test instrument with stable and reliable performance, complete function, high automation level and high test efficiency, which is at the leading level in China.
If you do not understand pta-2000 portable voltage transformer analyzer, you are welcome to consult our online customer service for details~
