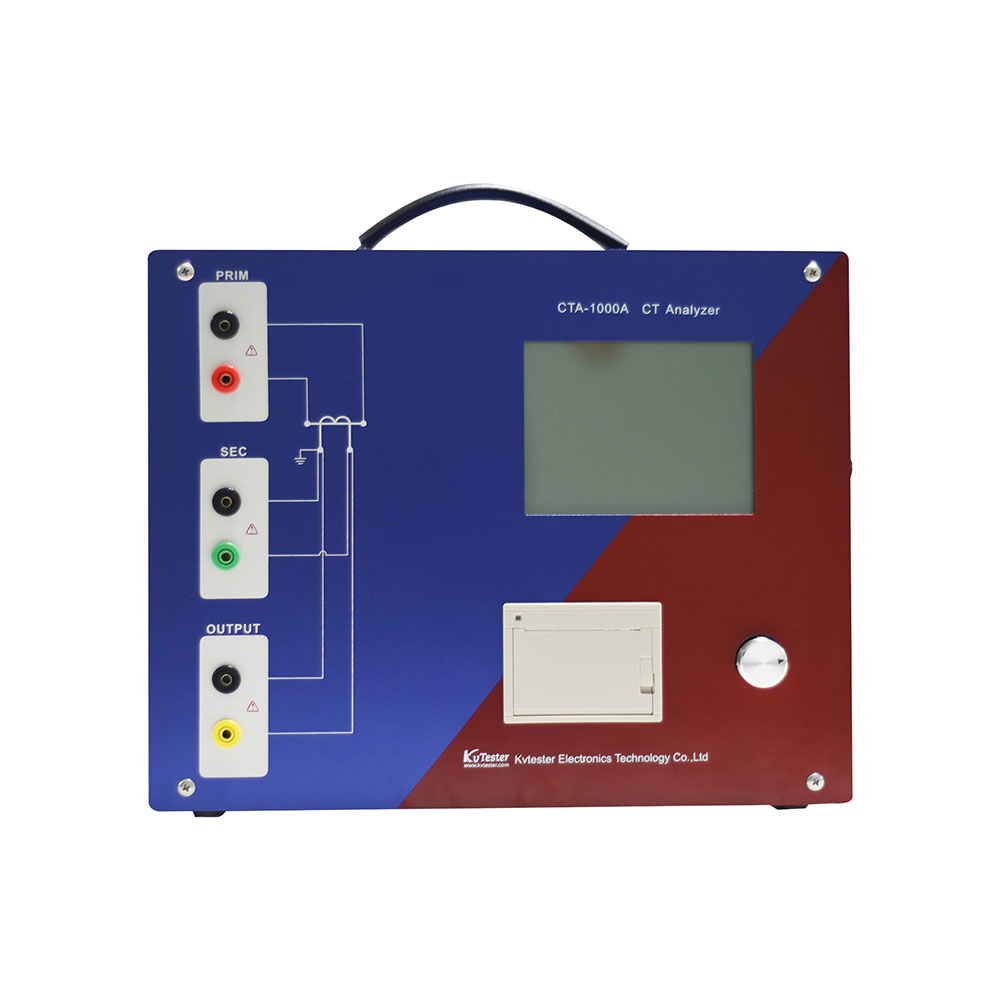

CT Analyzer

type:CTA-1000A
Online Service

TAGS:

  • ct tester
    • Product Introduction

    CTA-1000A CT Analyzer automatically determines all relevant current transformer values and compares the results with the selected standard. The device evaluates the current transformer as per the IEC or IEEE standard within seconds with the push of a button.

          It facilitates fast and economical on-site testing and calibration of metering and protection current transformers. Manufacturers of current transformers, high voltage transformers and switchgear also use the CT Analyzer for tests during development and production.


    • Product Parameters
    Type
    CTA-1000A
    Usage
    CT
    Output
    0~180Vrms,   12Arms, 36A(peak value)
    Voltage   measurement accuracy
    ±0.1%
    CT Ratio
    Range
    1~40000
    accuracy
    ±0.05%
    Phase
    Range
    ±2min
    accuracy
    0.5min
    DC   resistance
    Range
    0~300Ω
    accuracy
    0.2%±2mΩ
    Burden
    Range
    0~1000VA
    accuracy
    0.2%±0.02VA
    Power   supply
    AC220V±10%,   50Hz
    Environmental   Conditions
    Operating   temperature : -10οC~50οC
    Humidity   :≤90%

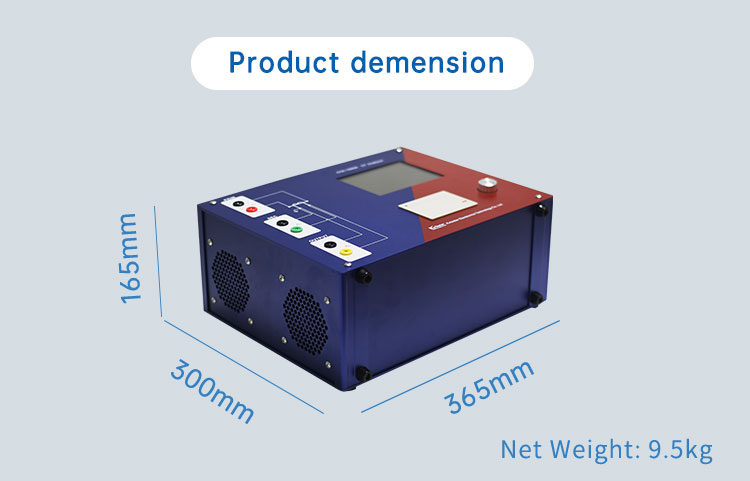

    Weight   and Dimensions
    Dimensions:   365 mm×290mm×153mm;
    Weight<10kg

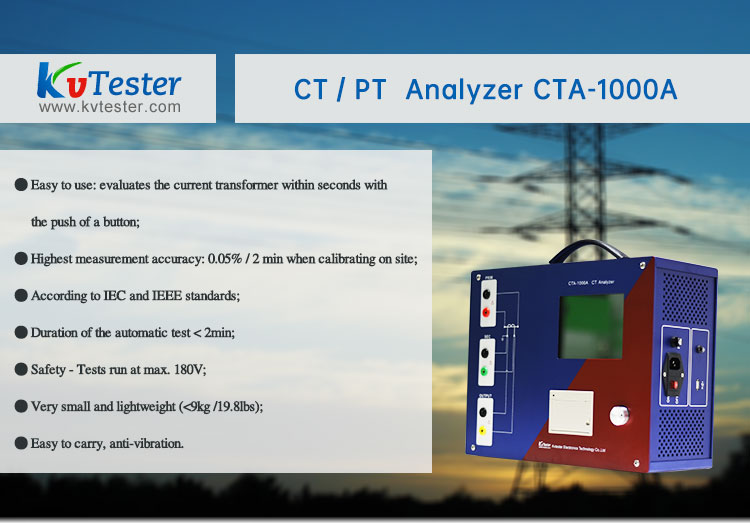

    • Product Features

     ● Easy to use: evaluates the current transformer within seconds with the push of a button;

      ● Highest measurement accuracy: 0.05% / 2 min when calibrating on site;

      ● According to IEC and IEEE standards;

      ● duration of the automatic test < 2min;

      ● Safety - Tests run at max. 180V;

      ● Very small and lightweight (<9kg /19.8lbs);

      ● easy to carry, anti-vibration


    • Product Video

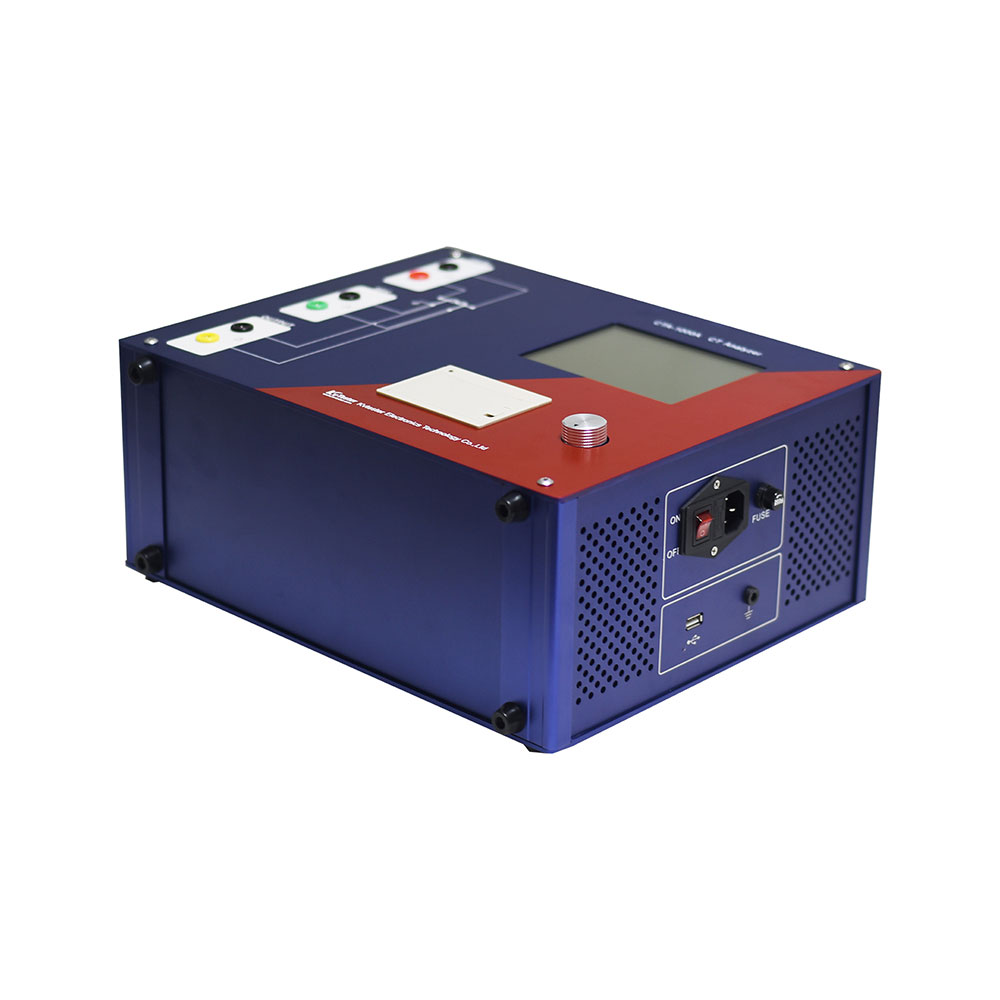

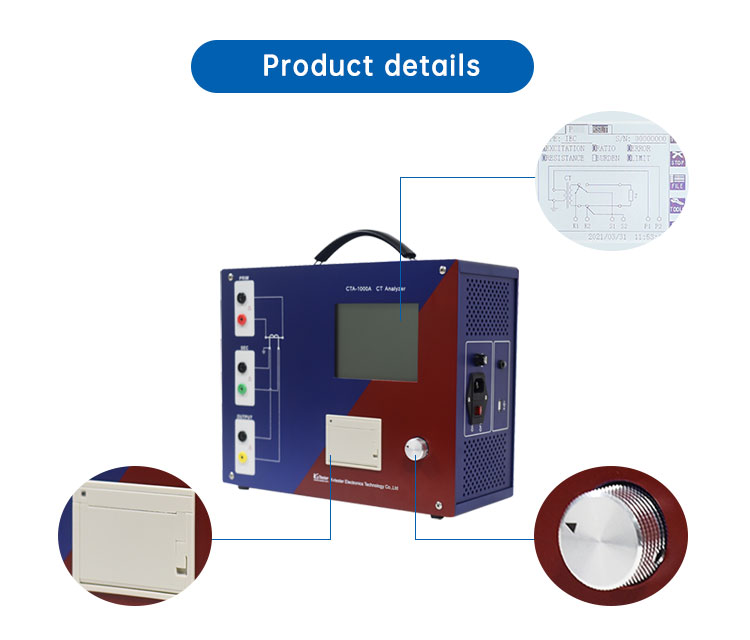

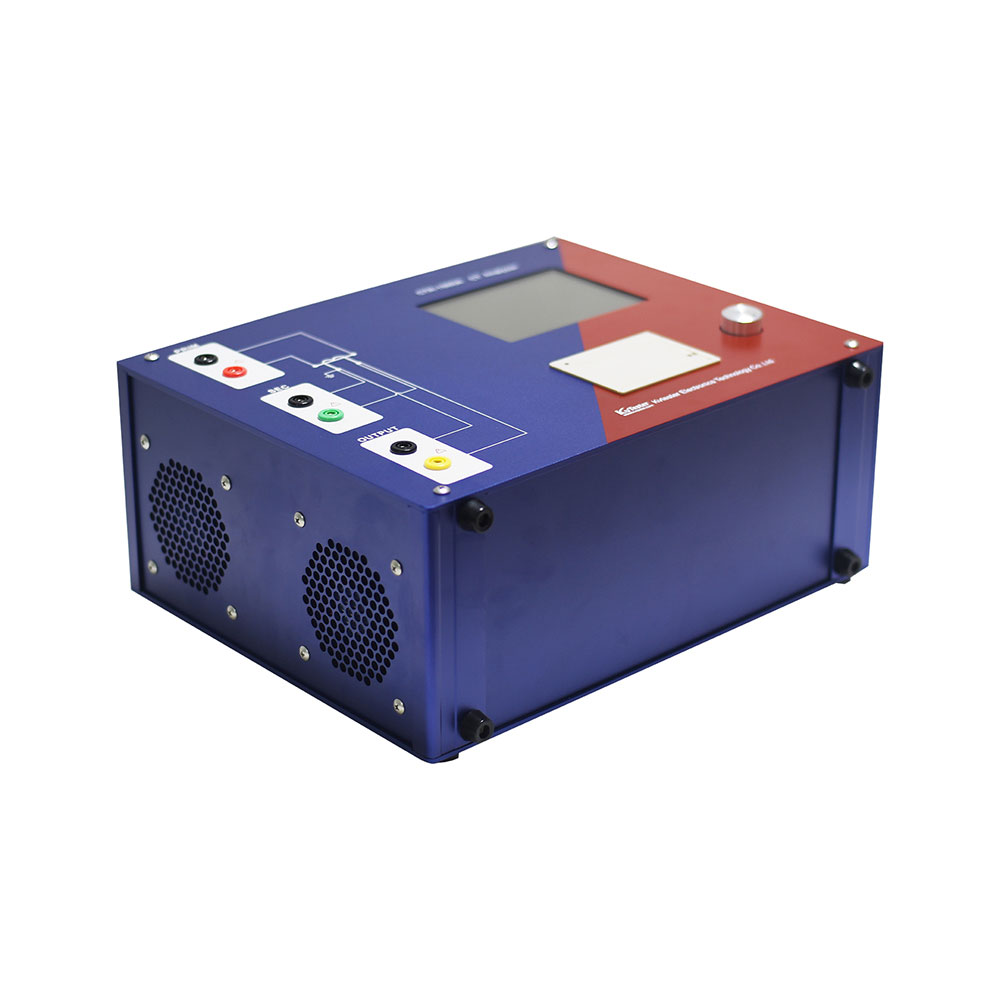

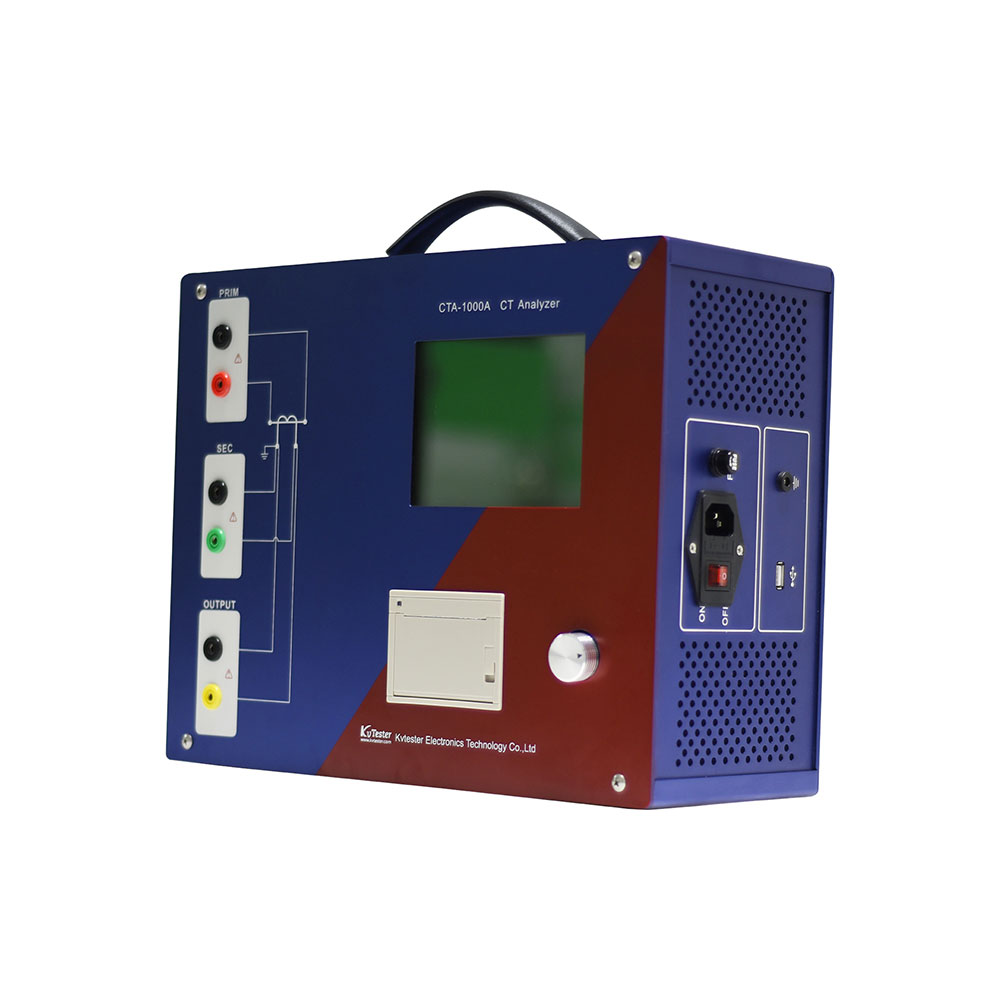

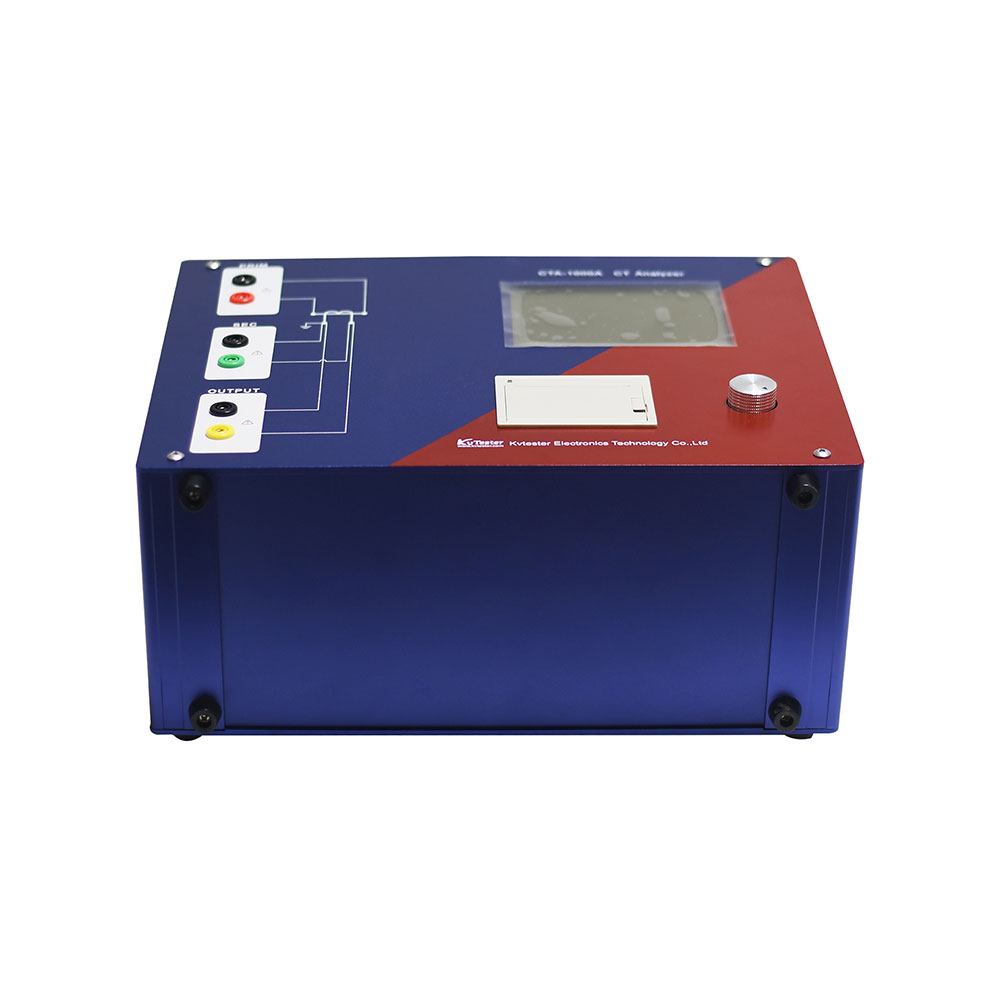

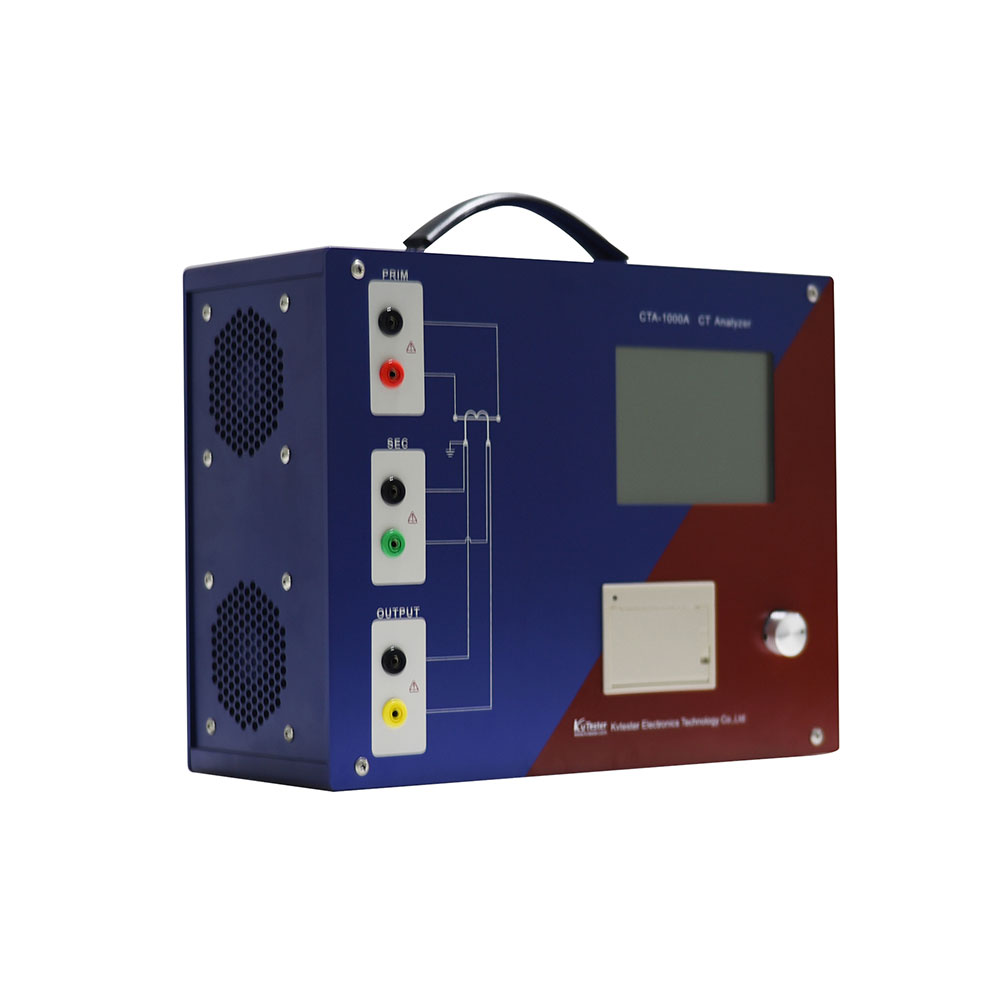

    • Product Picture
